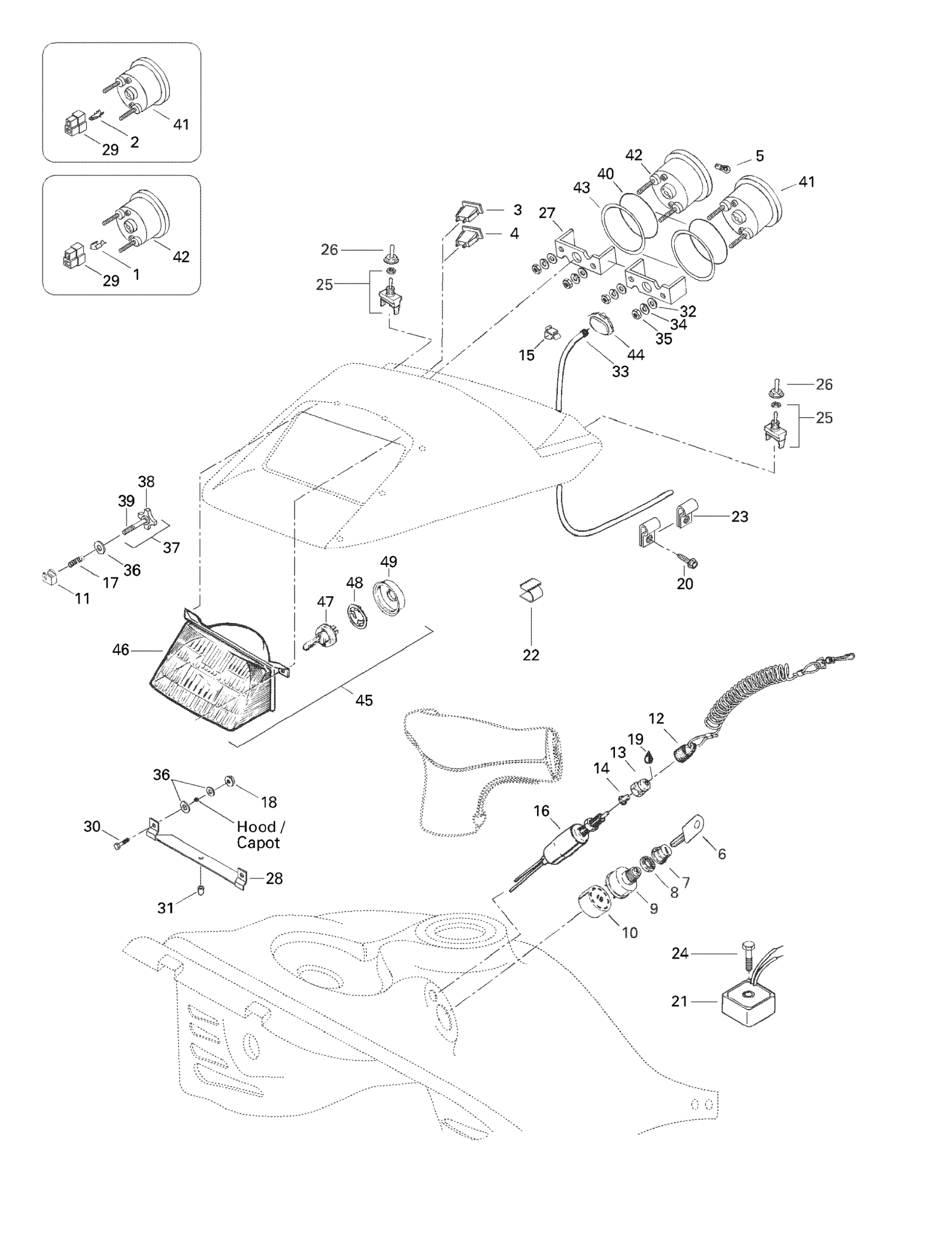

Ski-Doo MX Z 440 F, 1998 Electrical System Diagram
#
1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
2
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
3
Pilot Lamp (Red)
410109500
Unavailable
4
Pilot Lamp (Blue)
410109600
Unavailable
5
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
6
Blank Key
415129350
Unavailable
7
Switch Boot
570013700
Unavailable
9
IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.
410111200
Unavailable
10
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
11
Projector Nut
572078600
Unavailable
17
Spring
517168600
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
20
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
21
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
24
Hex. Screw M6 x 35
732600016
Unavailable
27
Case Holder
414806500
Unavailable
28
Headlamp Support
517218500
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
30
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
33
Speedometer Cable
414761400
Unavailable
34
Lock Washer
414806700
Unavailable
35
Nut
414806900
Unavailable
36
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
37
Adjuster Screw Ass'y | Includes 44 - 46.
415100700
Unavailable
38
Handle
572106600
Unavailable
39
Screw M4 x 40
732603004
Unavailable
40
O-Ring
414807100
Unavailable
41
Speedometer (KMH)
415096300
Unavailable
Speedometer (MH)
415096400
Unavailable
42
Tachometer
415096500
Unavailable
43
Washer
517258500
Unavailable
44
Drive Angle | Formula S.
572022300
Unavailable
45
Headlamp | Includes 42 to 45
410609100
Unavailable
46
Headlamp
410608900
Unavailable
47
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
49
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
