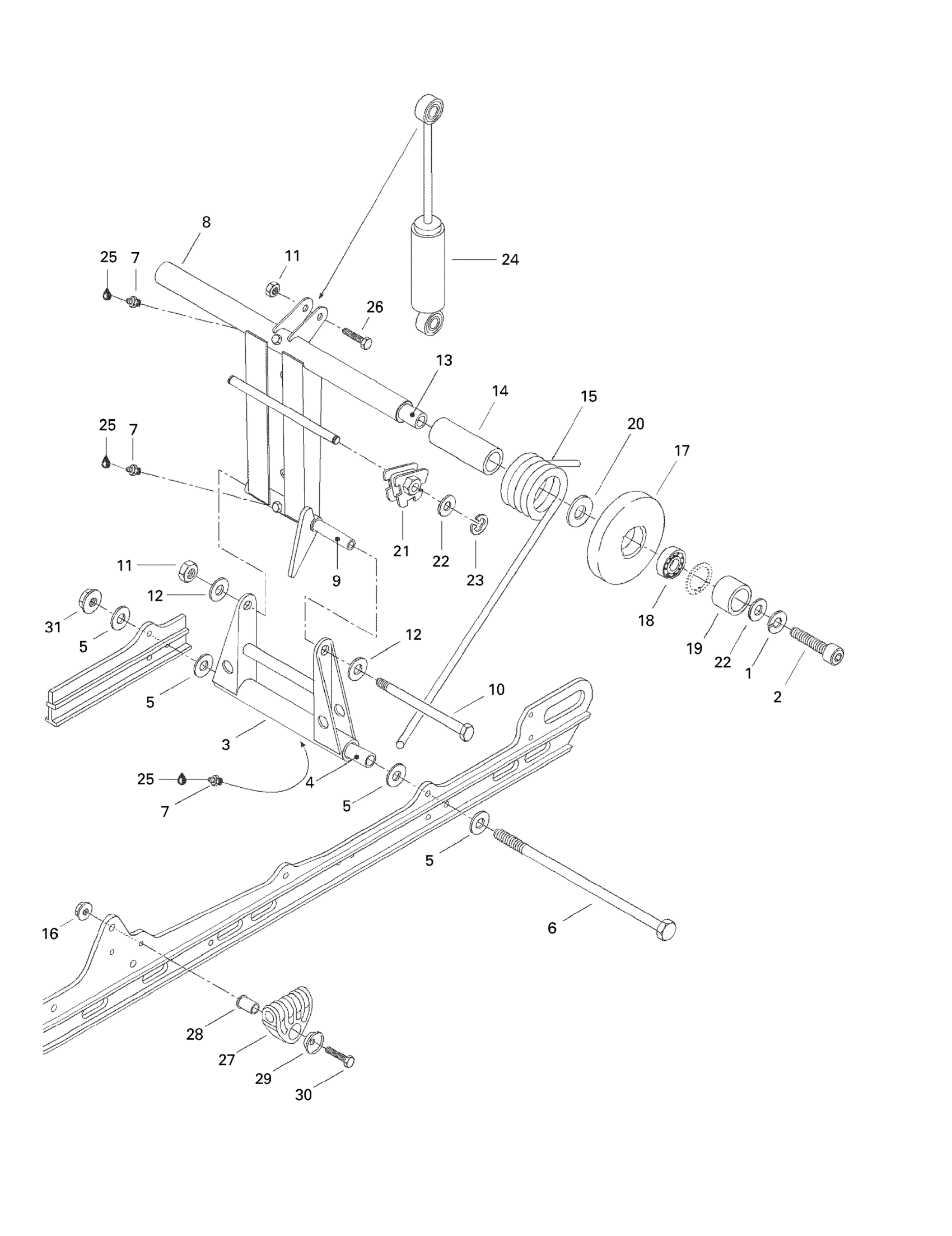

Ski-Doo MX Z 440 F, 1998 Rear Arm, Rear Suspension Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Socket Screw M10 X 35

205003544

$1.39

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.97

7

Grease Fitting

408200700

$2.80

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.98

10

Bolt M8, Short

732601197

$15.06

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Flat Washer 8 mm

234081410

$0.69

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

18

Ball Bearing

405404600

$24.58

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.58

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

e Circlip

371907100

Unavailable

24

Shock | Summit 500.

414975800

Unavailable

25

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

26

Hex. Screw M8 X 40

207084044

$0.92

27

Spring Support

503189657

$10.20

28

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

29

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

30

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

31

Hex. Flange Elastic Nut M8

233281414

$1.14
