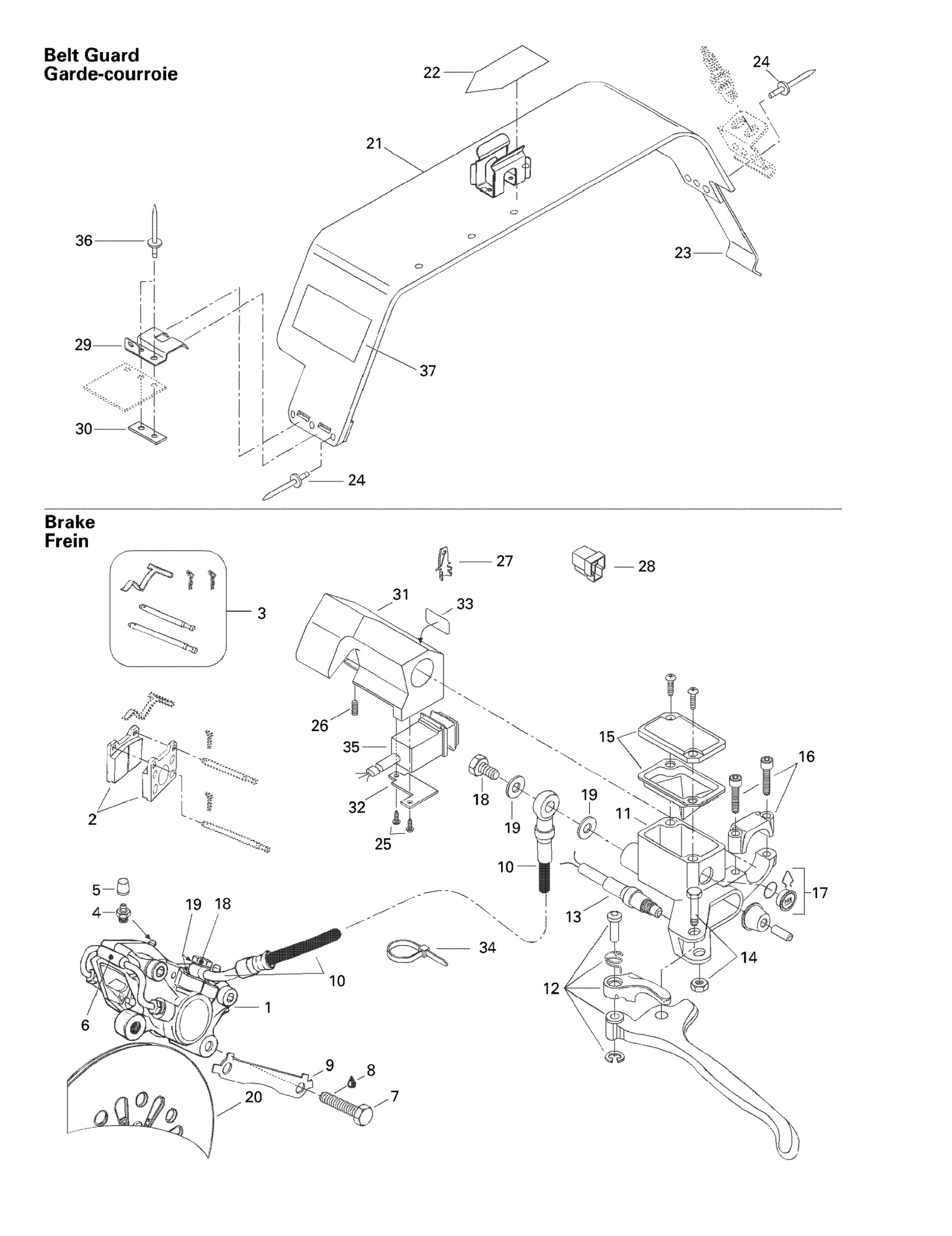

Ski-Doo MX Z 440 F, 1998 Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Caliper | Includes 6 - 11. 500 F.
415034500
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
9
Locking Tab
507029900
Unavailable
10
HOSE - Call your local BRP dealership This part replaces 507032212.
507032568
Unavailable
17
WINDOW - Call your local BRP dealership
414990600
Unavailable
20
Brake Disk | Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
507031400
Unavailable
21
Belt Guard Ass'y | Includes 19 - 22.
517285400
Unavailable
22
Warning Decal
415028900
Unavailable
23
Tool Box Spring
414941800
Unavailable
27
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
29
Pulley Guard Bracket
518314200
Unavailable
32
Plate | SWT 550
517283800
Unavailable
33
Switch Decal
415025500
Unavailable
35
Dimmer Switch
515163100
Unavailable
37
Suspension Adjustment Decal
418001706
Unavailable
