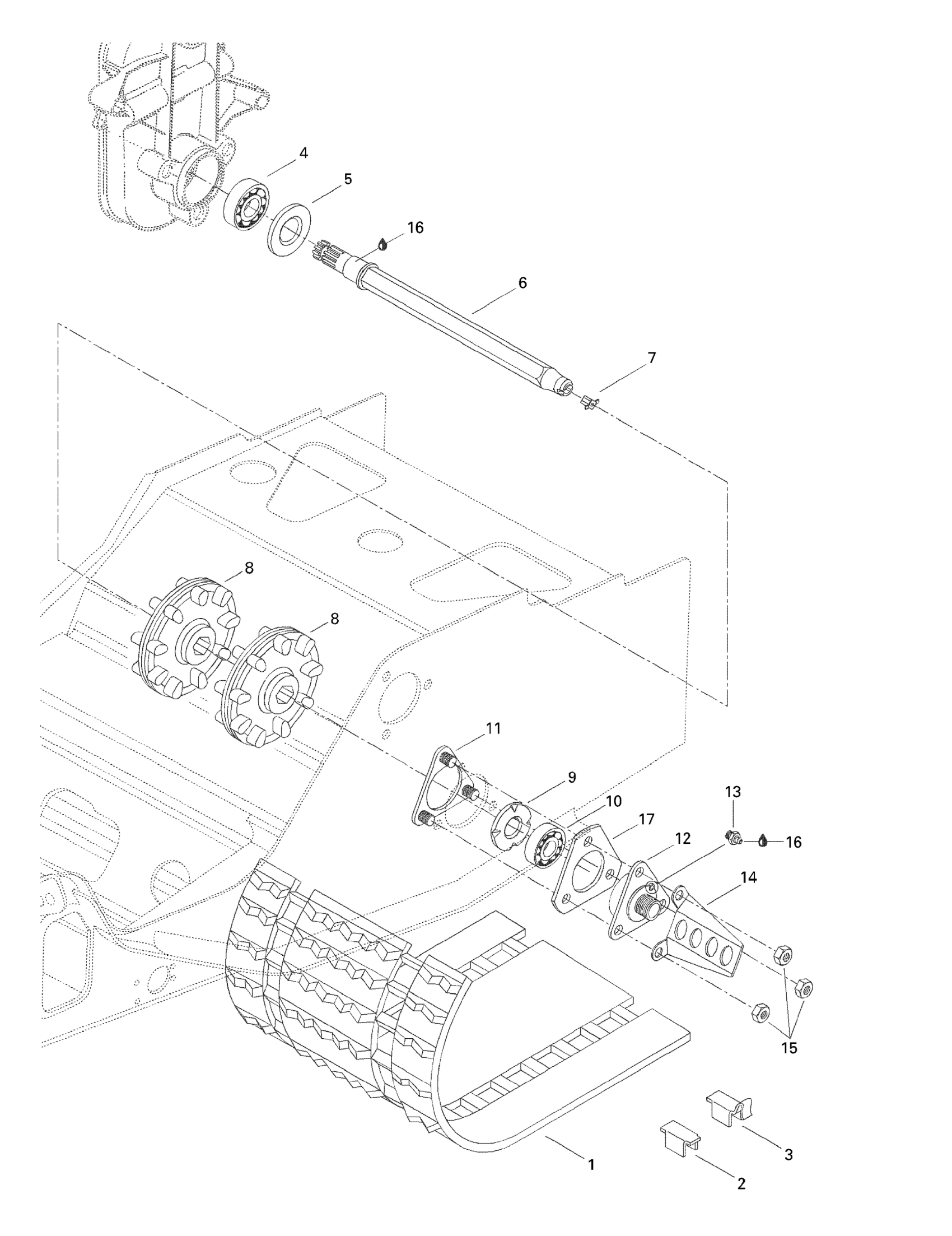

Ski-Doo MX Z 440 F, 1998 Drive Axle And Track Diagram
#
Description
Price
1
Track Ass'y (121") | Includes 1 - 3.
570211300
Unavailable
Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10
504152485
Unavailable
2
Cleat
504152651
Unavailable
4
Ball Bearing
293350115
Unavailable
5
Seal Oil Ass'y
504152076
Unavailable
6
Drive Axle
501025100
Unavailable
7
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
8
Sprocket (9 Teeth)
414882600
Unavailable
Sprocket (9 Teeth)
414882600
Unavailable
9
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
10
Ball Bearing
293350115
Unavailable
11
Retainer Ring
501017800
Unavailable
12
Ball Bearing Housing | Includes 12 - 13.
501017500
Unavailable
13
Grease Fitting
408200700
Unavailable
14
Cable Protector
517243600
Unavailable
15
Hex. Elastic Stop Nut M8
232581414
Unavailable
16
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
17
Spacer
501022200
Unavailable
