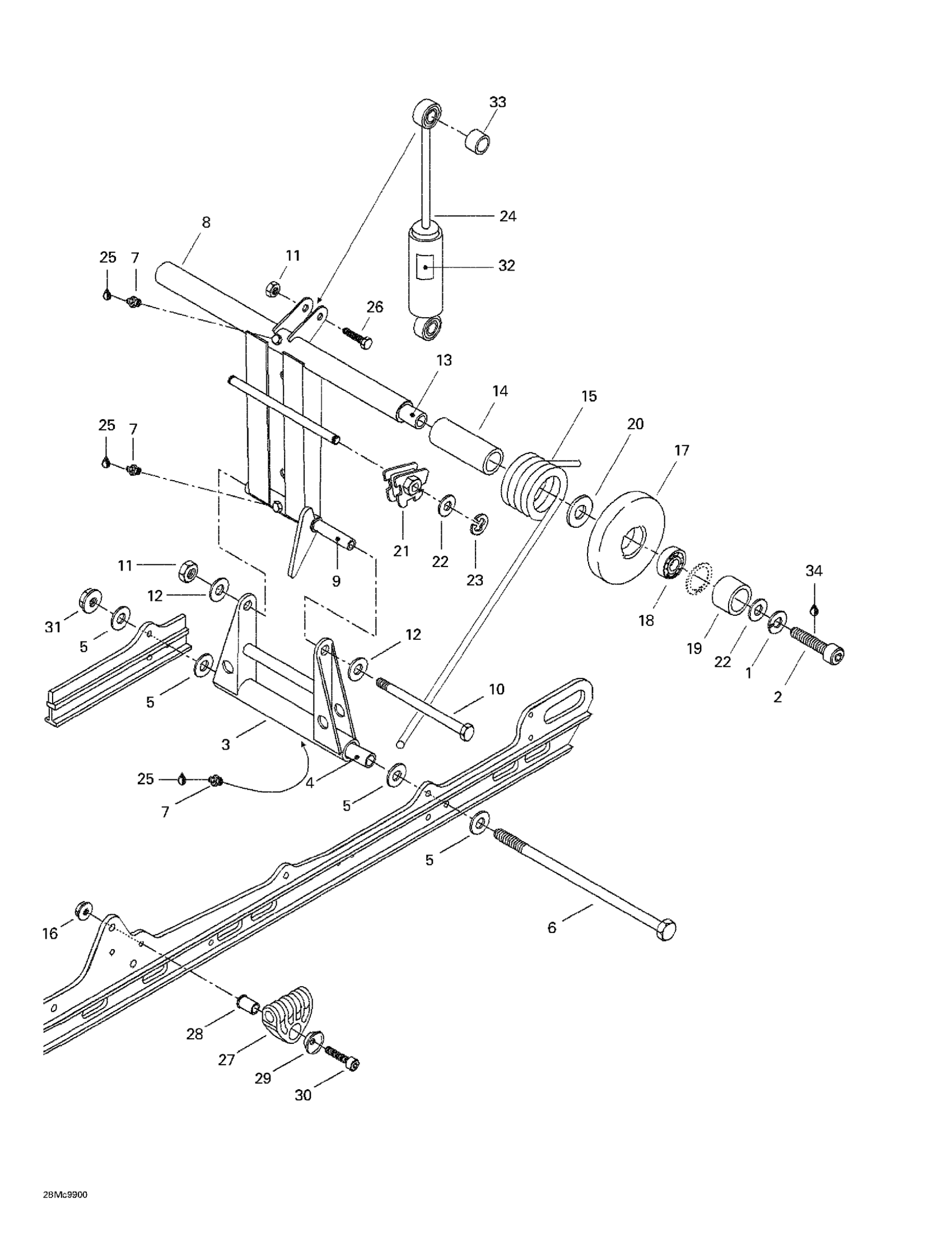

Ski-Doo MX Z 440, 1999 Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

2

Socket Screw M10 X 35

205003544

$1.39

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.97

7

Grease Fitting

408200700

$2.80

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.98

10

Bolt M8, Short

732601197

$15.06

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Flat Washer 8 mm

234081410

$0.69

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

18

Ball Bearing

405404600

$24.58

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.58

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

e Circlip

371907100

Unavailable

24

Rear Shock

503188988

Unavailable

25

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

26

Hex. Screw M8 X 40

207084044

$0.92

27

Spring Support

503189657

$10.20

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.74

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

HPG Decal (Europe)

516000182

Unavailable

33

CUSHION - Call your local BRP dealership

414802600

Unavailable

34

Loctite 243, 10 ml

293800060

$20.77
