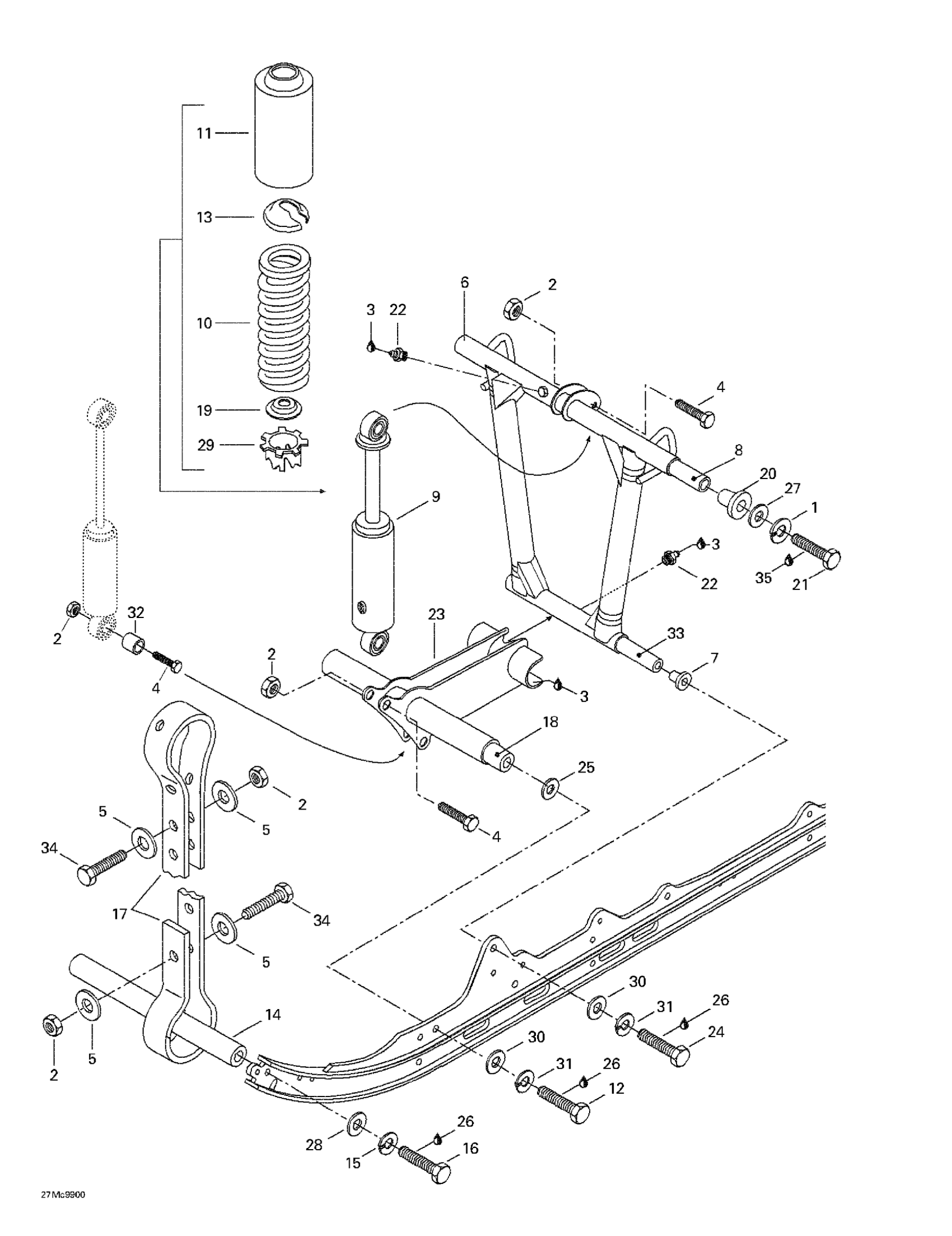

Ski-Doo MX Z 440, 1999 Front Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503189222
Unavailable
7
Cushion
503188940
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock
503189167
Unavailable
10
SPRING - Call your local BRP dealership
415070100
Unavailable
11
Protector
503193663
Unavailable
12
SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership
222023565
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap
570069300
Unavailable
18
Lower Axle
503174800
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support
503182100
Unavailable
24
Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.
222026065
Unavailable
25
Hardened Washer
503175400
Unavailable
26
Loctite 271, 10 ml
293800005
Unavailable
27
Flat Washer 10 mm
234001410
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
Cam
503169000
Unavailable
31
Lock Washer 12 mm
224721218
Unavailable
32
CUSHION - Call your local BRP dealership
414802600
Unavailable
33
Shaft
503182000
Unavailable
34
Hex. Screw M8 X 25
207182544
Unavailable
