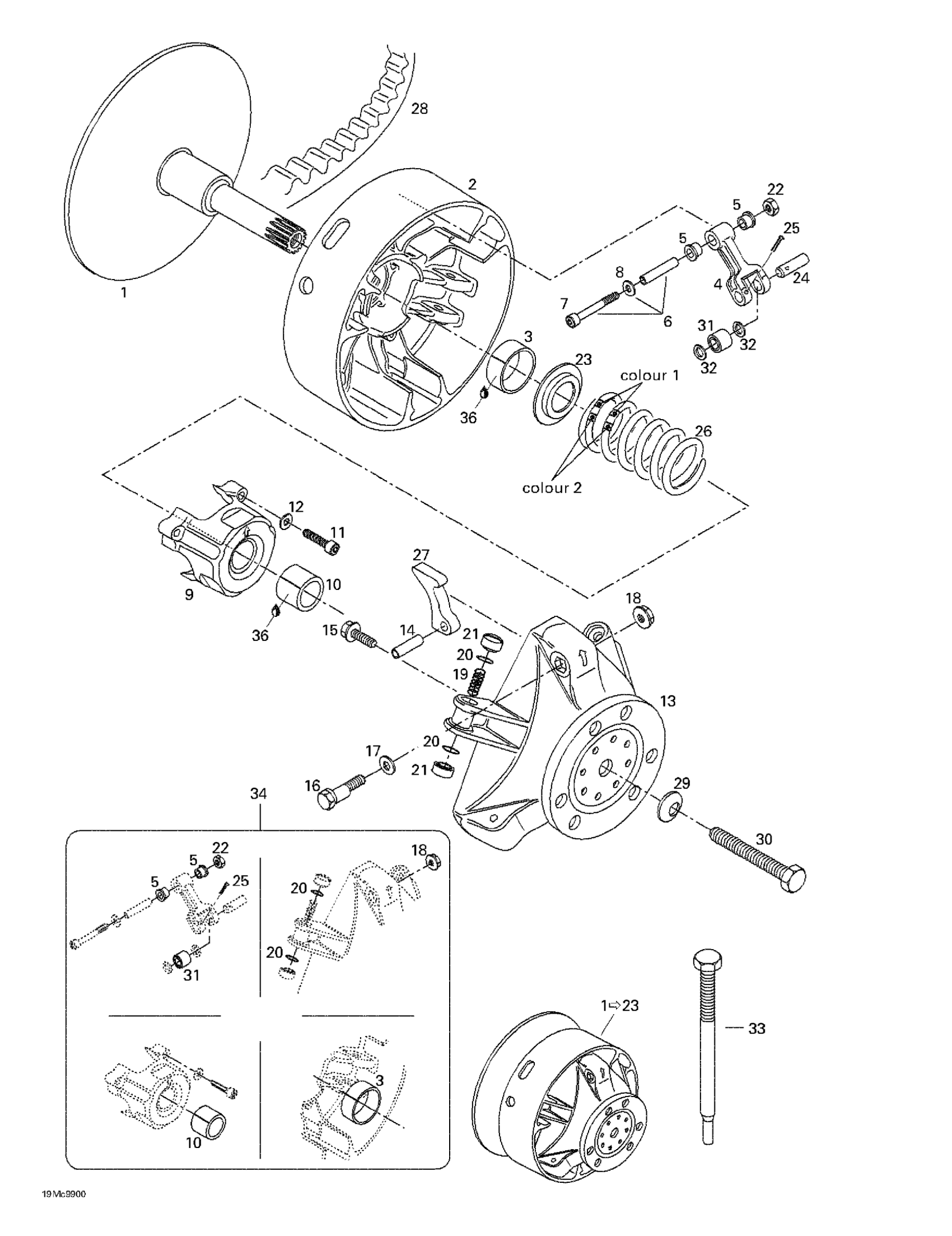

Ski-Doo MX Z 440, 1999 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500.
417222120
Unavailable
1
Fixe Flange | Formula DLX 500.
417222071
Unavailable
2
SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.
417010000
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
8
Flat Washer 6 mm
234061410
Unavailable
9
Spring Cover Ass'y | Includes 9 - 10.
417004000
Unavailable
10
Bushing
417004501
Unavailable
11
Allen Screw M6 x 40
222964066
Unavailable
12
WASHER - Call your local BRP dealership
420245370
Unavailable
13
Gouvernor Cup Ass'y
417004700
Unavailable
14
Pin M8 X 24
732804009
Unavailable
15
Hex. Locking Screw M6 x 18 | Formula Deluxe 500.
732601249
Unavailable
16
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
18
Hex. Flange Nut M6
233061414
Unavailable
19
Spring
417005700
Unavailable
22
Elastic Stop Nut M6
232561414
Unavailable
23
Spring Seat
417222044
Unavailable
24
Pin
417004309
Unavailable
27
Ramp 291 X | Formula Deluxe 500.
417222070
Unavailable
28
Drive Belt
415060600
Unavailable
29
Conical Spring Washer M12
250200005
Unavailable
30
BOLT - Call your local BRP dealership
417113800
Unavailable
33
Puller Inner Half
529007900
Unavailable
34
Clutch Repair Kit
417006100
Unavailable
35
High Altitude Kit (Not Shown)
861767900
