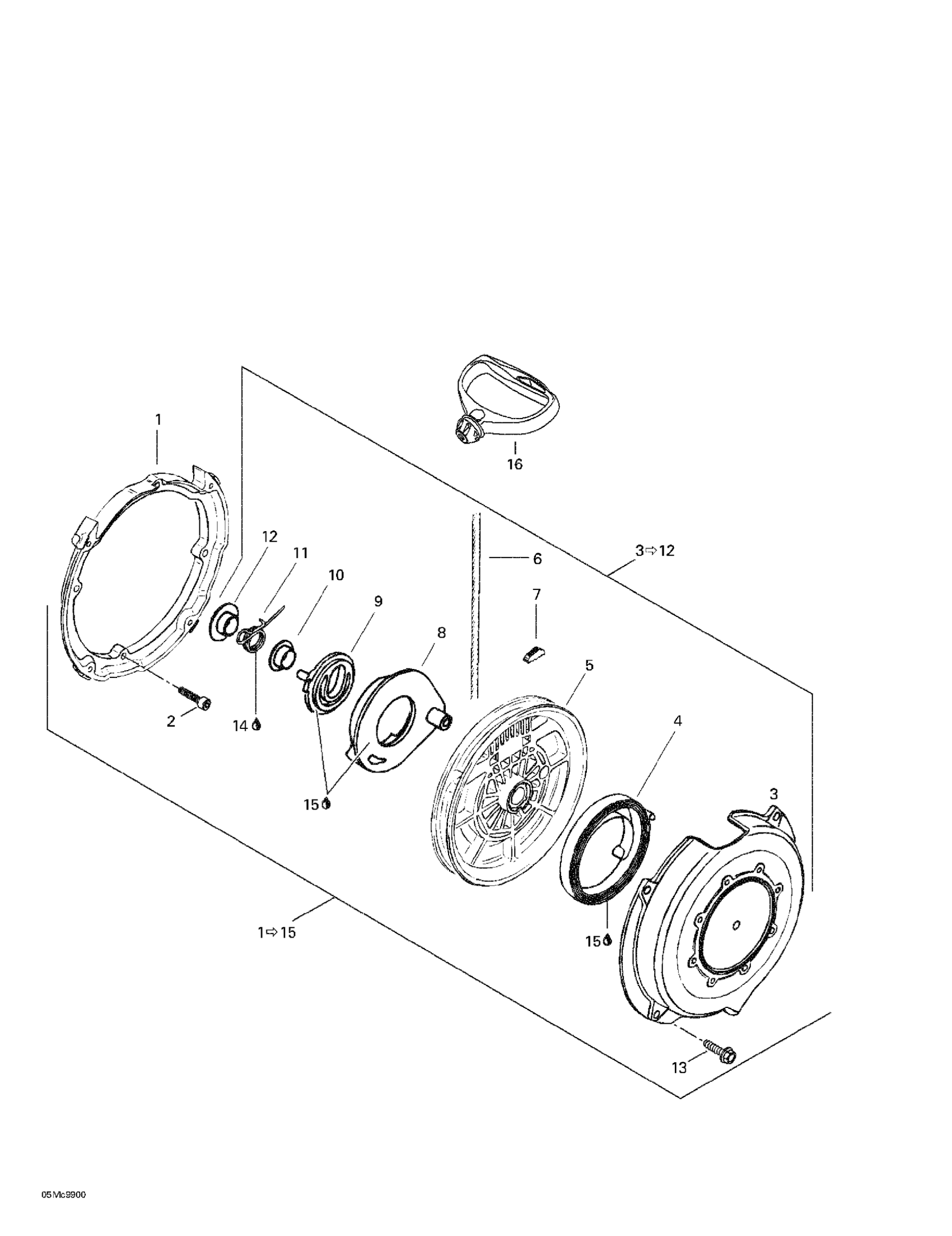

Ski-Doo MX Z 440, 1999 Rewind Starter Diagram
#
Description
Price
1
Rewind Starter Kit | Includes 1 - 13. Formula SL.
420888211
Unavailable
1
Flange Connector
420810955
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Rewind Starter | Includes 3 - 12. Formula SL.
420888210
Unavailable
3
Starter Housing
420811340
Unavailable
5
Rope Sheave
420852480
Unavailable
6
Was 412500100 Rope-Starter
219704403
Unavailable
7
Key Clamp
420852070
Unavailable
8
Pawl
420852296
Unavailable
9
PAWL LOCK - Call your local BRP dealership | Formula 500 LC.
420852301
Unavailable
10
Stage Sleeve
420847926
Unavailable
11
Pawl Spring
420938986
Unavailable
12
Stage Sleeve | Formula SL.
420847920
Unavailable
13
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Silicone Compound Grease
420879061
Unavailable
16
Starter Grip
572084400
Unavailable
