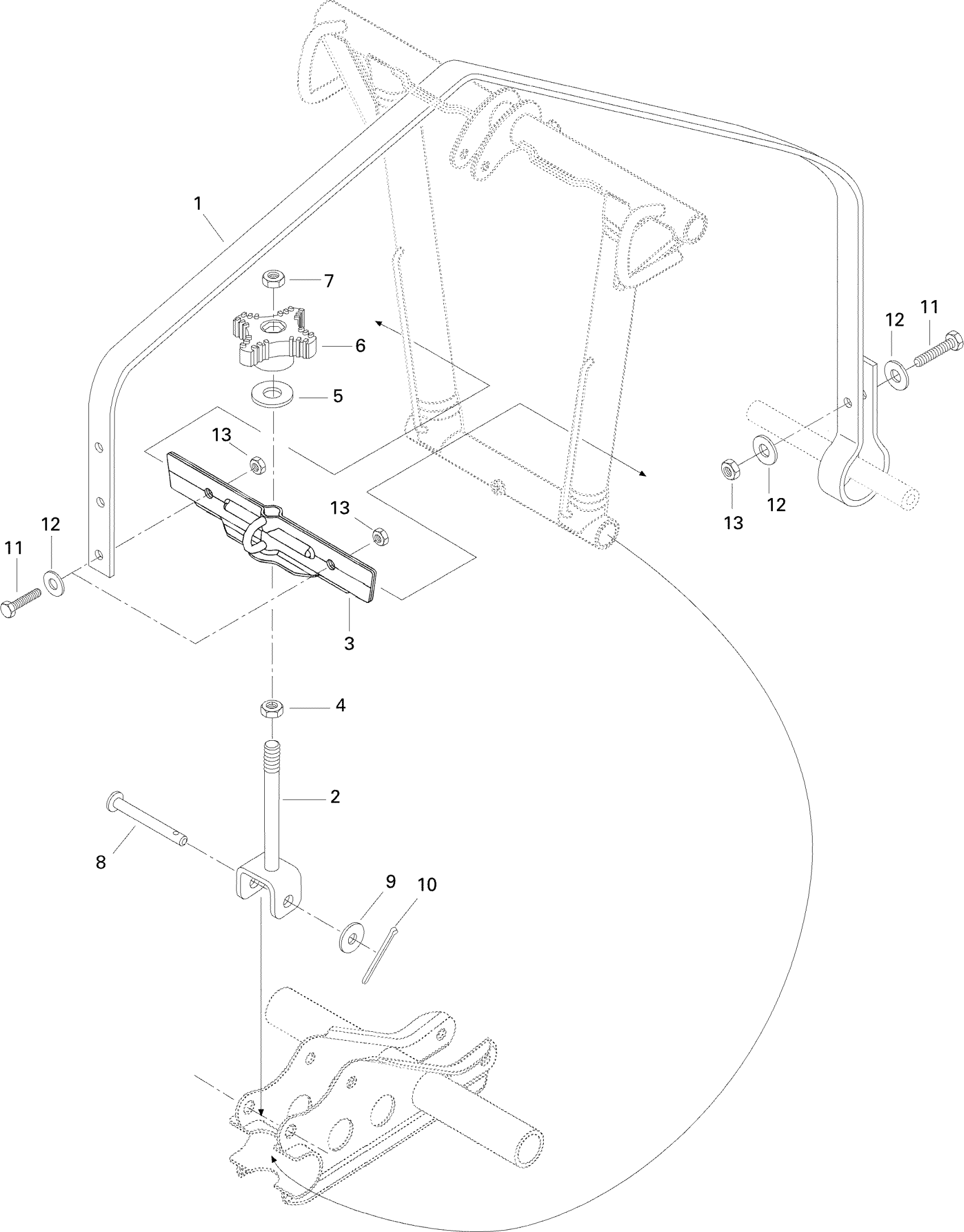

Ski-Doo MX Z 440, 1996 Rear Suspension Quick Adjusment Diagram

#

Description

Price

1

Quick Adjustment Parts | Includes 1 to 13

861754700

Unavailable

1

Strap

570049700

Unavailable

2

Strap Link

503170000

Unavailable

3

Stopper

503166300

Unavailable

4

Hex. Nut M10 X 1.5

232006414

$1.11

5

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

6

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.68

8

Clevis Pin

414803900

Unavailable

9

Flat Washer 10 mm

234001410

Unavailable

10

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

11

Hex. Screw M8 X 25

207182544

Unavailable

12

Flat Washer 8 mm

234082410

$1.11

13

Hex. Elastic Stop Nut M8

232581414

Unavailable
