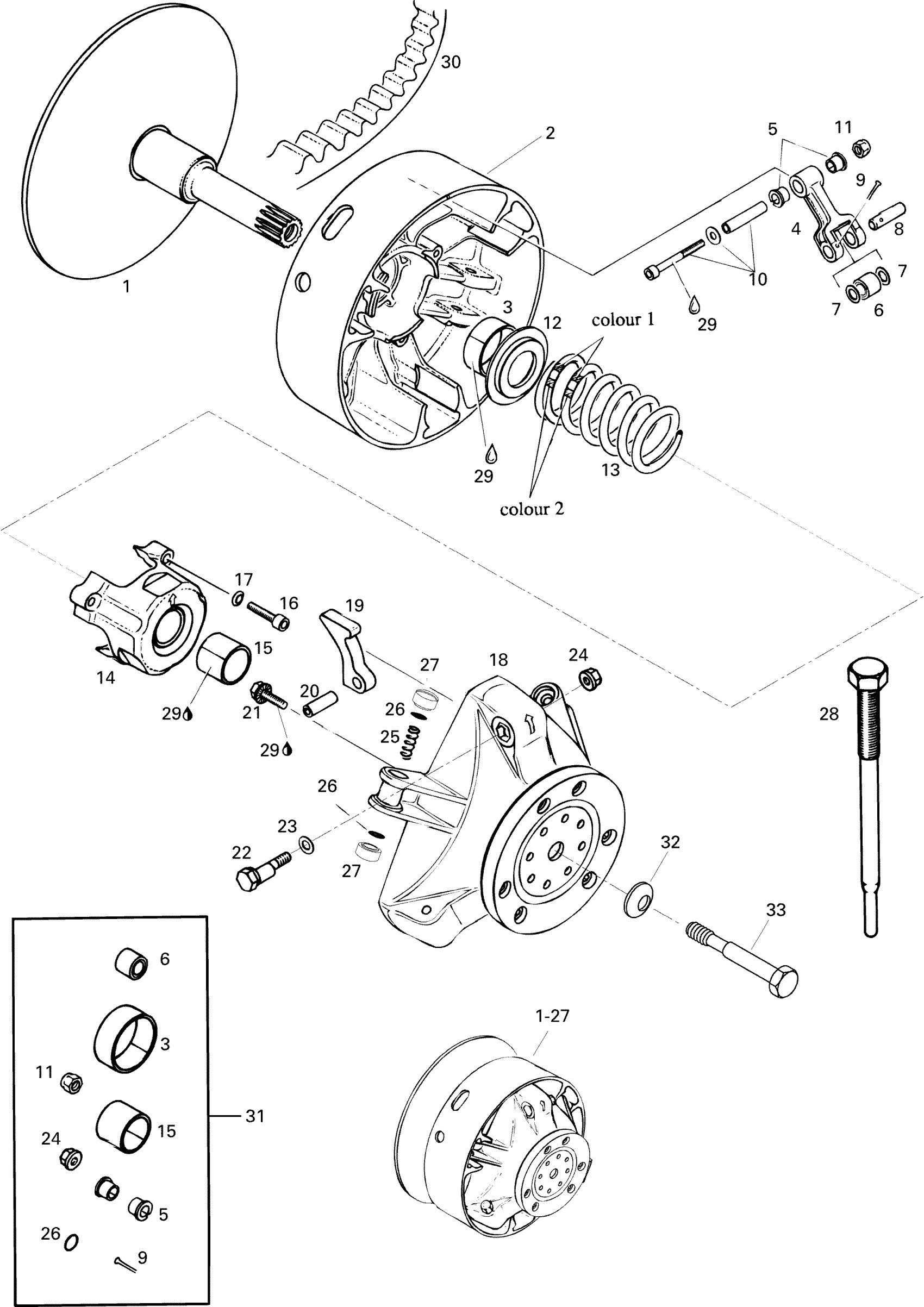

Ski-Doo MX Z 440, 1996 Drive Pulley 440 Diagram

#

Description
Price

1

Drive Pulley Ass‘y | Includes 1 to 27

417210000

Unavailable

1

Inner Half Ass‘y

420480416

Unavailable

2

OUTER HALF ASS?Y - Call your local BRP dealership | Includes 3 to 4

420480297

Unavailable

3

BUSHING OUTER HALF - Call your local BRP dealership

420433173

Unavailable

4

Lever Ass‘y | Includes 5 to 6

420448455

Unavailable

5

Bushing

417004305

Unavailable

6

Roller

417222947

$19.97

7

Stopper Washer

417004302

$15.99

8

Pin

417004309

Unavailable

9

Cotter Pin

250400060

$1.60

10

Fitting Screw

420440166

Unavailable

11

Elastic Stop Nut M6

232561414

Unavailable

12

Spring Seat

420427392

Unavailable

13

SPRING, ROSE/WHITE - Call your local BRP dealership | North America

414991400

Unavailable

14

Spring Cover Ass‘y | Includes 15 to 16

420412287

Unavailable

15

Bushing

417004501

Unavailable

16

Socket Screw M6 X 40

205064086

Unavailable

17

WASHER - Call your local BRP dealership

420245370

Unavailable

18

Governor Cup

420480395

Unavailable

19

Ramp

420480283

Unavailable

20

Dowel Tube M8 x 24

420429150

Unavailable

21

Hex. Locking Screw M6 x 20

420440180

Unavailable

22

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

23

Washer | Skandic Super Wide Track.

420927941

Unavailable

24

Hex. Flange Nut M6

233061414

Unavailable

25

Spring

417005700

Unavailable

26

O-Ring

732401030

$0.95

27

Slider Shoe This part replaces 420460045.

417223021

$6.09

28

Puller Inner Half

529007900

Unavailable

29

Sealant Loctite 648

219703000

Unavailable

30

Drive Belt

414860700

Unavailable

31

Clutch Repair Kit

420483325

Unavailable

32

Spring Washer 14 mm

250200006

Unavailable

33

Drive Pulley Bolt

417120000

$63.82
