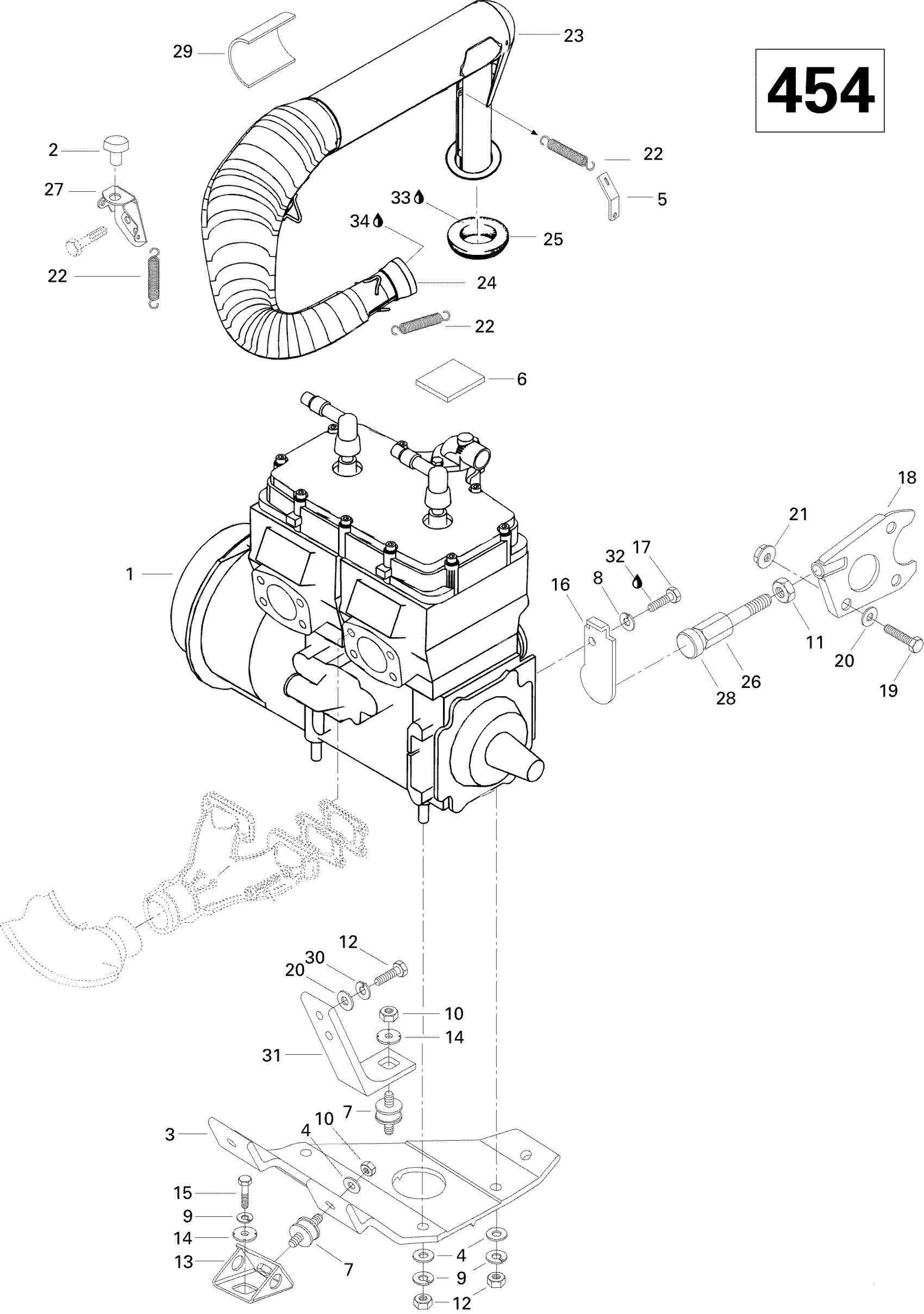

Ski-Doo MX Z 440, 1996 Engine And Engine Support 440 Diagram

#

Description
Price

1

«454» Engine

400407500

Unavailable

2

Rubber Bumper

514053654

$49.20

3

Engine Support | MX Z 500.

512054200

Unavailable

4

Flat Washer 10 mm

234001410

Unavailable

5

Spring Bracket

514054522

$6.28

6

Reflective Sheet | MX Z 500.

415025400

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Lock Washer M6, Black

234161471

$0.52

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.68

11

Nut Hexagonal RH.

232026414

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.11

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

Unavailable

15

Hex. Screw M10 X 25

207102544

Unavailable

16

Stopper Plate

512052900

Unavailable

17

Hex. Screw M6 X 16

207161644

Unavailable

18

Plate | Formula Z 583. Formula Z 670.

512055500

Unavailable

19

Hex. Screw M8 X 25

207182544

Unavailable

20

Flat Washer 8 mm

234081410

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

Unavailable

22

Spring

415107100

$6.20

23

Muffler | Includes 23 to 24

514044800

Unavailable

24

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

420879991

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

27

Muffler Support

514044100

Unavailable

28

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

29

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

30

Lock Washer 8 mm

234181401

Unavailable

31

Engine Support | MX Z 500.

512054300

Unavailable

32

Loctite 271, 10 ml

293800005

Unavailable

33

Grease, Super Lube

293550030

Unavailable

34

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable
