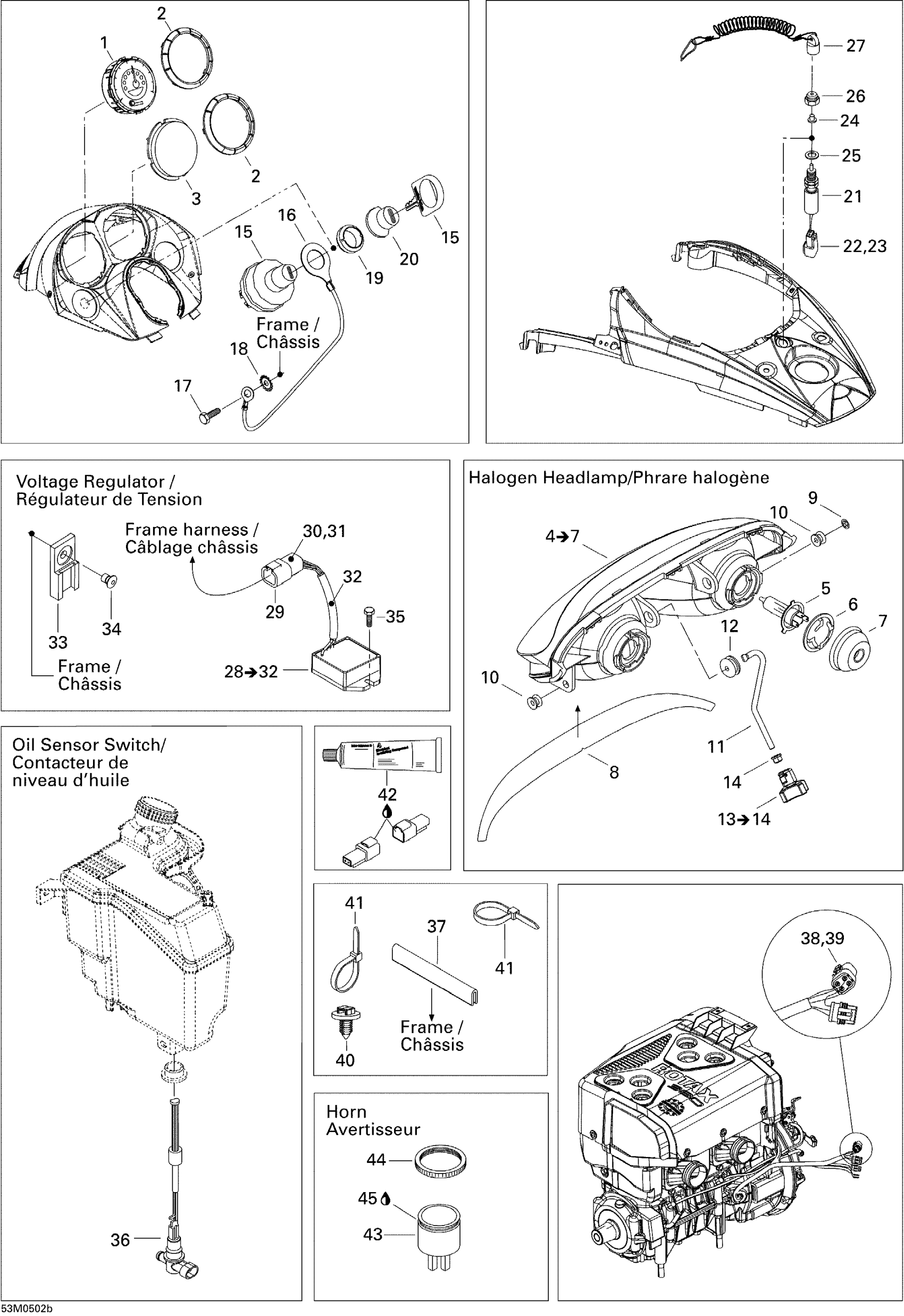

Ski-Doo MX Z 380F, 2005 Electrical Accessories MX Z Diagram

#

Description
Price

1

Speedometer

515176263

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$1.72

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

16

Ignition Switch Ground Wire

515176288

Unavailable

17

Hex. Forming Screw M6 X 10

210261050

$1.42

18

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

19

FACE NUT - Call your local BRP dealership

410112100

Unavailable

20

Switch Boot

570013700

$10.82

21

Brake Switch

515175653

$15.57

22

Male Terminal Housing, 2 Circuits

515175654

$7.48

23

Male Terminal

515175232

$1.49

24

Plunger Cap

570151100

$10.14

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Switch Nut

515145900

$10.83

27

Cap Ass'y

515178283

$37.66

28

Voltage Regulator | Manual Start, Includes 39 to 44

515176188

$136.12

29

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

30

Male Terminal

515175568

$7.48

31

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

32

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

33

Clip

270000141

$8.33

34

Avdel Rivet 3/16"

293150037

$0.47

35

Hex. Flange Screw M6 X 12

210261250

$1.56

36

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

37

TRIM - Call your local BRP dealership

509000263

Unavailable

38

Female Terminal Housing, 4 Circuits

278001473

$25.35

39

Female Lock, 4 Circuits

278001474

$3.02

40

Mount Dart

293730040

$0.86

41

Tie-Rap 180 mm

414115200

$0.09

41

Tie Wrap 142 mm

293750002

$0.88

41

Tie-Rap 173 mm

293750009

$0.85

42

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

43

HORN - Call your local BRP dealership

515176035

Unavailable

44

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

45

Silicone Sealant 51388, 300 ml

296000309

$35.72
