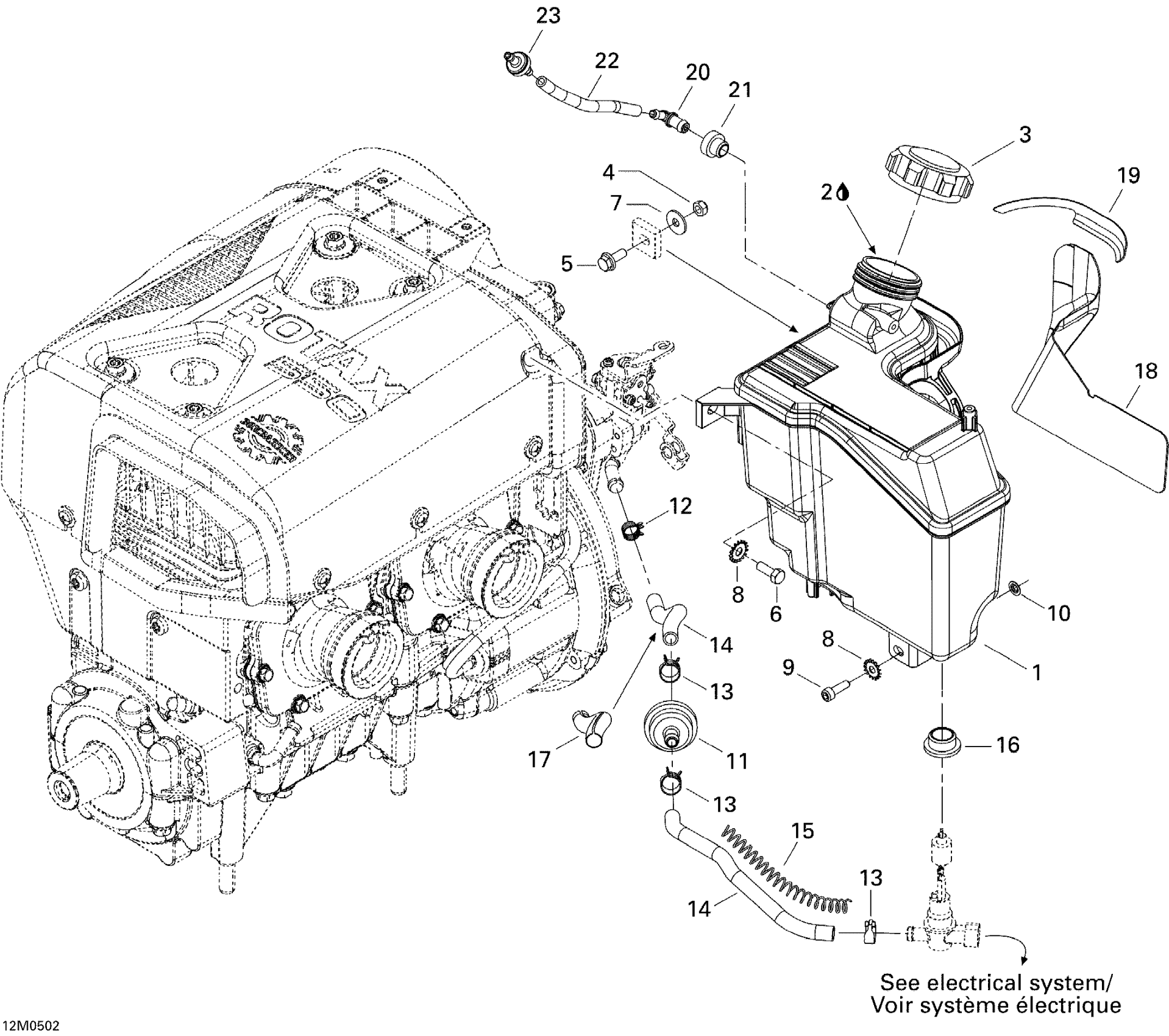

Ski-Doo MX Z 380F, 2005 Oil System MX Z Diagram
#
Description
Price
1
INJECTION OIL TANK - Call your local BRP dealership
519000073
Unavailable
2
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
2
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
3
CAP - Call your local BRP dealership
519000033
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Hex. Flange Screw M6 X 16
207661644
Unavailable
6
Hex. Screw M6 X 18
207161844
Unavailable
7
Flat Washer
250200082
Unavailable
8
Lock Washer Serrated M6
250200041
Unavailable
10
Push Nut
732610072
Unavailable
12
Spring Clamp
414420700
Unavailable
15
SPRING - Call your local BRP dealership
519000125
Unavailable
16
Insulating Ring
570023000
Unavailable
17
Tubing 10 MM 1000MM Long
219704407
Unavailable
18
REFLECTIVE SHEET - Call your local BRP dealership
519000054
Unavailable
19
REFLECTIVE SHEET - Call your local BRP dealership
519000072
Unavailable
20
Male Connector
414580700
Unavailable
22
Polyurethane Hose 10000Mm Long
219704410
Unavailable
23
Check Valve
275500398
Unavailable
