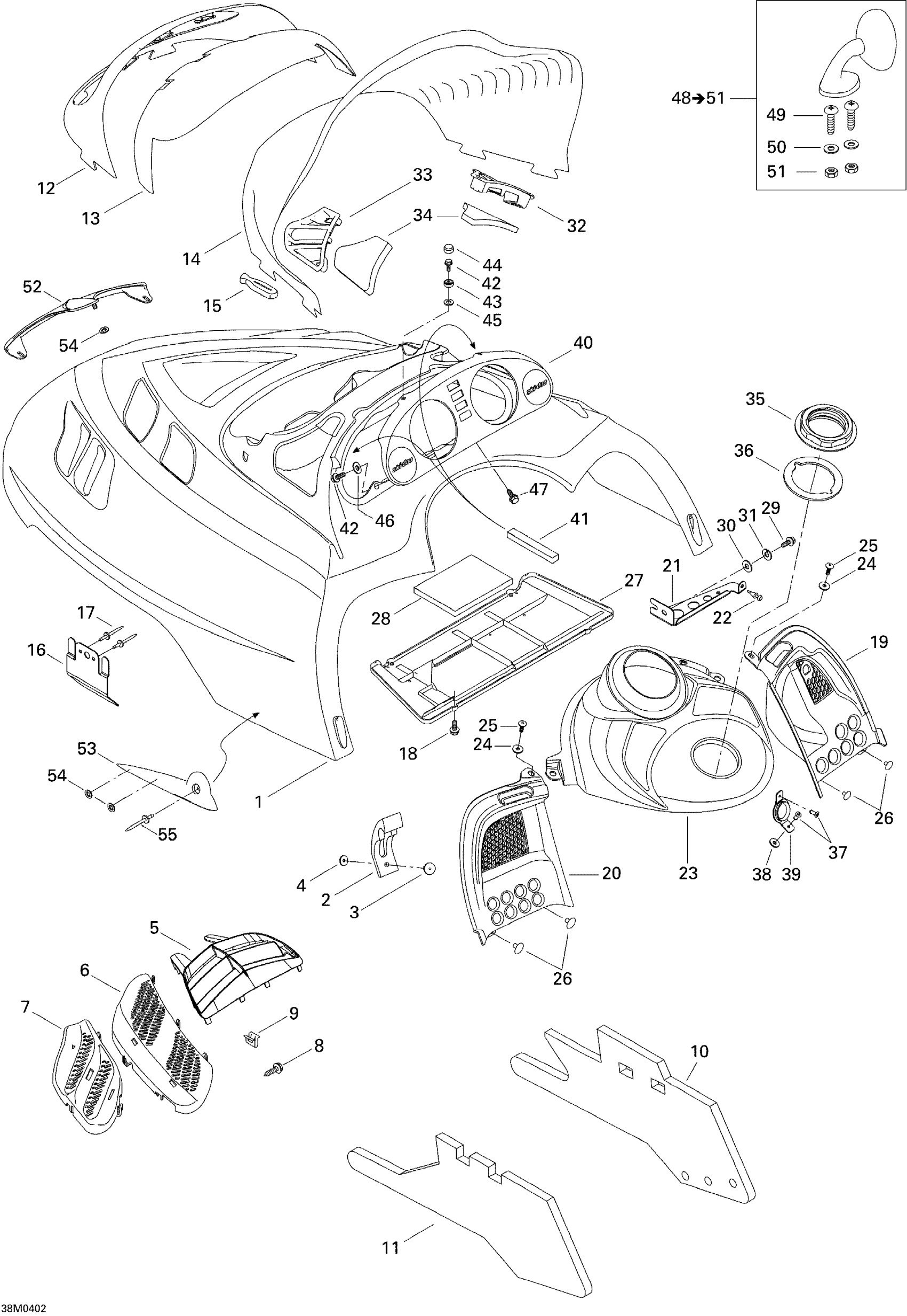

Ski-Doo MX Z 380F, 2004 Cab, Console (MX Z) Diagram

#

Description
Price

1

Deep Black, Hood

517302846

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16”

293150108

$1.23

4

Washer

517124300

Unavailable

5

Center Grill, Black

517302676

Unavailable

6

RH Intermediate Grill, Black

517302567

Unavailable

6

LH Intermediate Grill, Black

517302568

Unavailable

7

RH Side Grill

517302569

Unavailable

7

LH Side Grill

517302570

Unavailable

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

9

Edge Clip

517302785

Unavailable

10

RH Side Foam

517302669

Unavailable

11

LH Side Foam

517303132

Unavailable

12

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

14

WINDSHIELD - Call your local BRP dealership

517302356

Unavailable

14

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

Unavailable

15

Windshield Latch

570023800

Unavailable

16

Hood Guide

517302615

Unavailable

17

Pop Rivet 3/16”

390910000

$0.48

18

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

19

RH Console

517302561

Unavailable

20

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

21

RH Console Support

517302621

Unavailable

22

Rubber Stopper

517302624

Unavailable

23

Deep Black, Center Console

517302564

Unavailable

24

Washer | DS 650 X

391301600

Unavailable

25

Forming Screw M5 x 16

250000676

$0.83

26

Pop Rivet 3/16"

293150103

Unavailable

27

AIR INTAKE PLATE - Call your local BRP dealership

517302836

Unavailable

28

Secondary Foam

517302425

Unavailable

29

Hex. Flange Screw M6 X 12

210261250

$1.56

30

Flat Washer 6 mm

234061410

Unavailable

31

Lock Washer M6, Black

234161471

$0.52

32

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

33

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

34

Air Intake Foam

517302151

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

293250029

Unavailable

37

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

38

Rubber Stopper

517302286

Unavailable

39

Rope Guide

517302129

Unavailable

40

Indicator Support

517302760

Unavailable

41

Foam

517302420

Unavailable

42

Screw K40 X 10

241140060

$1.25

43

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

44

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

45

Flat Washer 4 mm, Stainless

234042600

Unavailable

46

Washer

517124300

Unavailable

47

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

48

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

48

LH MIRROR - Call your local BRP dealership

414972010

$37.66

49

Screw M4 x 16

208041641

Unavailable

50

Washer

517124300

Unavailable

51

Elastic Stop Nut M4

232541414

$0.48

52

Front Hood Moulding

517302780

Unavailable

53

RH Hood Moulding

517302781

Unavailable

53

LH Hood Moulding

517302782

Unavailable

54

Push Nut

732610072

Unavailable

55

Pop Rivet 3/16”

293150092

Unavailable
