2004 Ski-Doo MX Z 380F Chaincase Diagram

← All diagrams

Find the part on the Chaincase diagram for your 2004 Ski-Doo MX Z 380F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

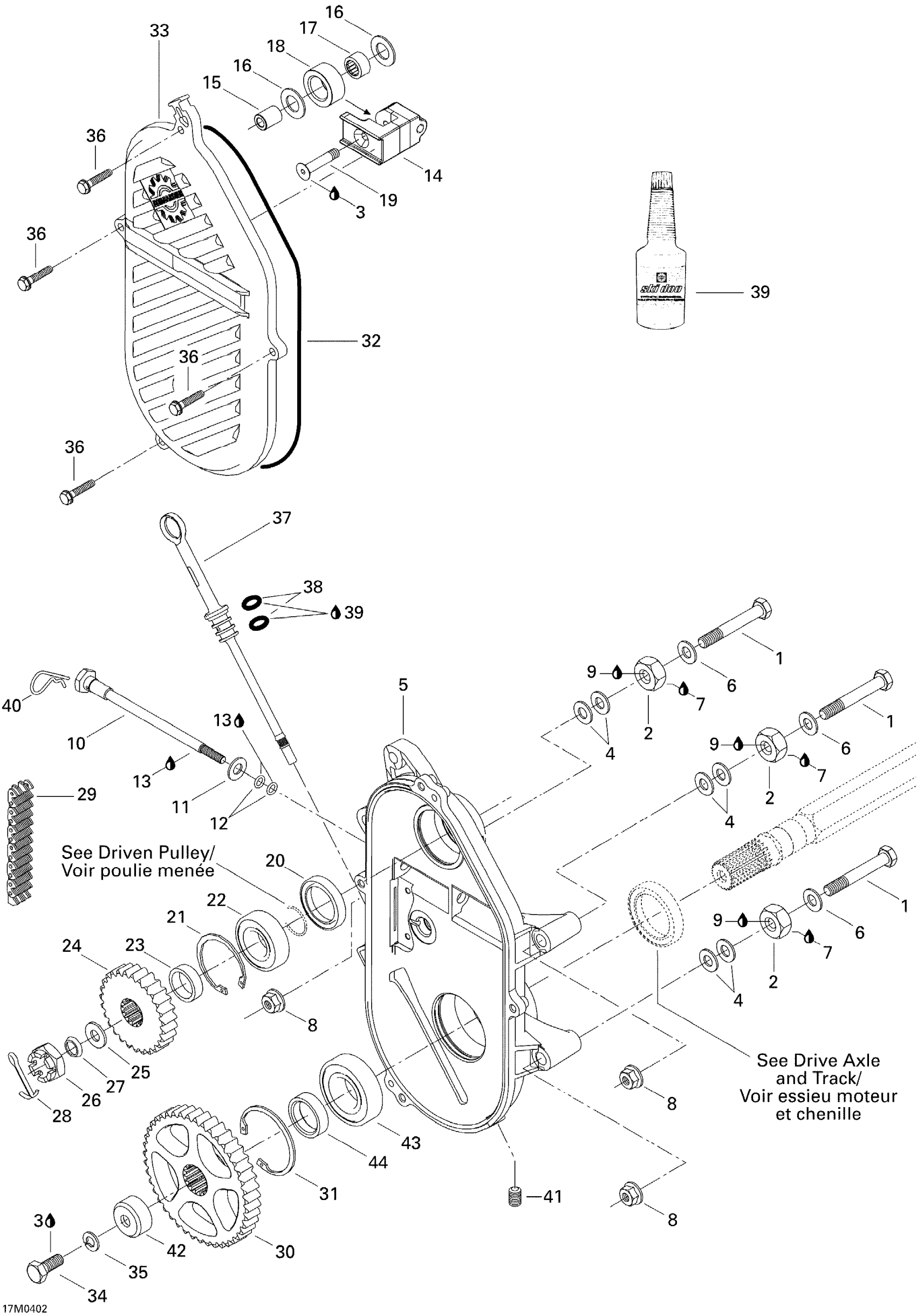

2004 Ski-Doo MX Z 380F Chaincase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

Spacer

504083800

—
Out of stock

3

Loctite 271, 10 ml

293800005

1

$20.77

In stock

4

WASHER - Call your local BRP dealership

504073700

—
Out of stock

5

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

—
Out of stock

6

Washer

503183800

3
Out of stock

7

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

8

Hex. Flange Elastic Nut M10

233201414

3
Out of stock

9

Loctite 243, 10 ml

293800060

1
Out of stock

10

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

—
Out of stock

11

Flat Washer 10 mm

234001410

1

$0.98

In stock

12

O-Ring

414484400

2
Out of stock

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

14

Chain Tensioner

504151951

—
Out of stock

15

—

$15.35

In stock

16

—

$4.63

In stock

17

—

$22.28

In stock

18

ROLLER - Call your local BRP dealership

414531300

—
Out of stock

19

—

$1.37

In stock

20

SEAL - Call your local BRP dealership

504151927

—
Out of stock

21

CIRCLIP - Call your local BRP dealership

371901700

—
Out of stock

22

Ball Bearing

293350115

1
Out of stock

23

SHIM - Call your local BRP dealership

504147200

—
Out of stock

24

Sprocket (19 Tooth, Narrow) | GT 550F Europe

414680500

—
Out of stock

25

—

$3.05

In stock

27

Spring Washer

417000900

—
Out of stock

28

Cotter Pin

371801300

—
Out of stock

30

43 TEETH SPROCKET, LARGE - Call your local BRP dealership

504148600

—
Out of stock

31

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

—
Out of stock

32

O-Ring

415046400

1

$24.58

In stock

33

—

$161.51

In stock

34

1

$1.11

In stock

35

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

—
Out of stock

36

Hex. Flange Screw M6 X 30 | International

210263050

4
Out of stock

37

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

—
Out of stock

38

O-RING - Call your local BRP dealership

414969400

—
Out of stock

39

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

—
Out of stock

40

Hair Pin

414575600

1
Out of stock

41

Plug 1/8”-27

504151921

1

$3.97

In stock

42

Cap

501022400

—
Out of stock

43

Ball Bearing

504152005

1
Out of stock

44

Shim

504152058

—
Out of stock
