Description

Price

1

FRONT BOTTOM PAN - Call your local BRP dealership

502006821

Unavailable

1

Front Bottom Pan | Renegade X (Yellow/Black)

502006862

Unavailable

2

BOTTOM PAN GRILL, BLACK - Call your local BRP dealership

502006746

$11.85

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Pop Rivet 3/16"

293150103

$0.54

5

Washer

517124300

$0.16

6

Pop Rivet 3/16"

293150043

$1.61

7

Nut Welded, M6

293100003

$6.32

8

RH BOTTOM PAN, BLACK - Call your local BRP dealership

502006725

$45.99

9

LH BOTTOM PAN, BLACK - Call your local BRP dealership

502006726

$45.99

10

Hex. Screw M6 X 14

207161444

$0.48

11

BUMPER, BLACK - Call your local BRP dealership

502006724

Unavailable

12

Lock Washer M6, Black

234161471

$0.52

13

Flat Washer

224061121

$0.44

14

Support

502006772

$36.12

15

Black, Nylon Cap

414916600

$4.32

16

LH BOTTOM PAN FOAM - Call your local BRP dealership

502006765

$8.68

17

RH BOTTOM PAN FOAM - Call your local BRP dealership

502006767

$8.68

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

REFLECTIVE SHEET - Call your local BRP dealership

502006809

$4.58

20

REFLECTIVE SHEET - Call your local BRP dealership

502006810

$4.58

21

BUMPER FOAM - Call your local BRP dealership

502006800

$6.89

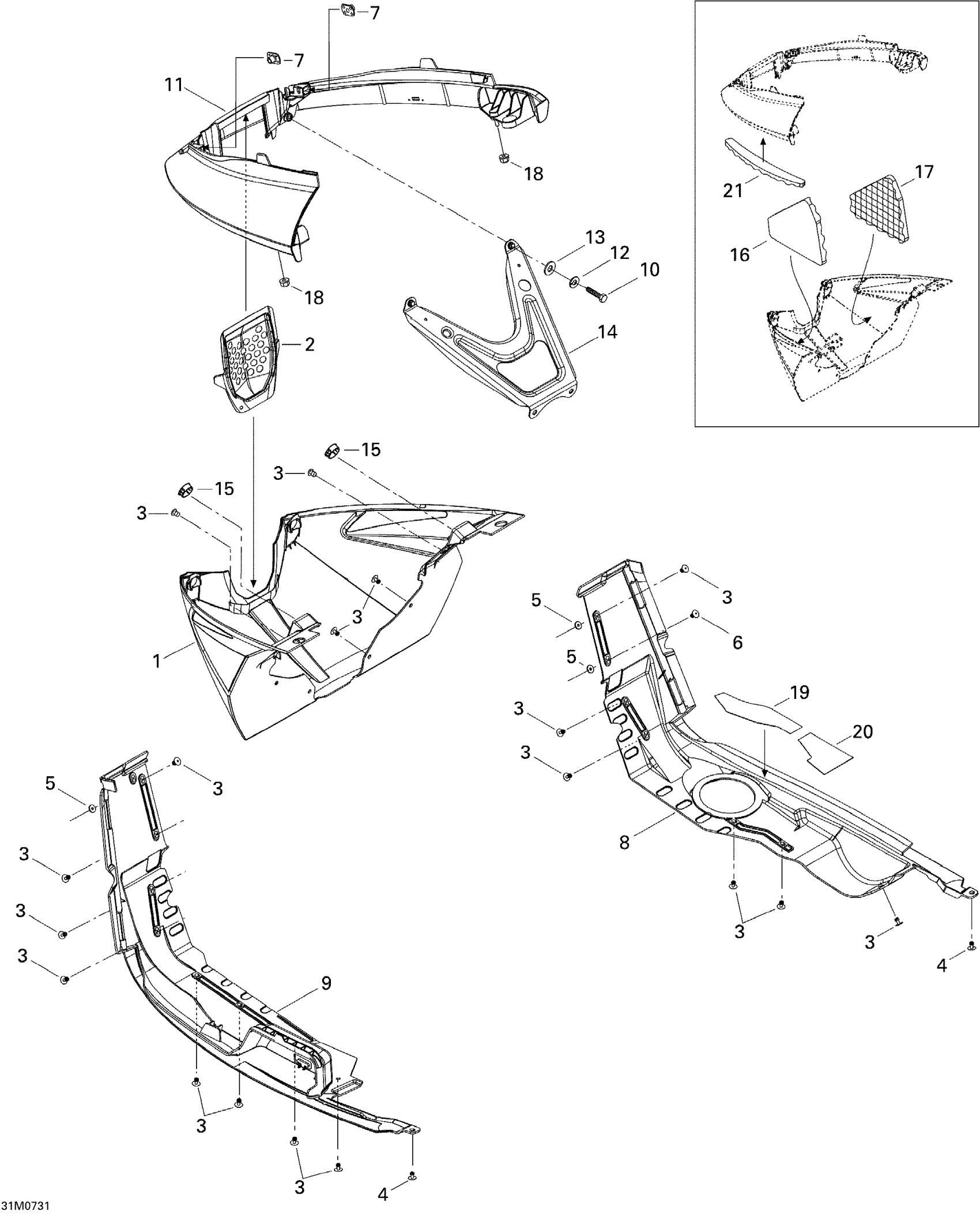

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Bottom Pan Diagram

FRONT BOTTOM PAN - Call your local BRP dealership

Front Bottom Pan | Renegade X (Yellow/Black)

BUMPER, BLACK - Call your local BRP dealership
