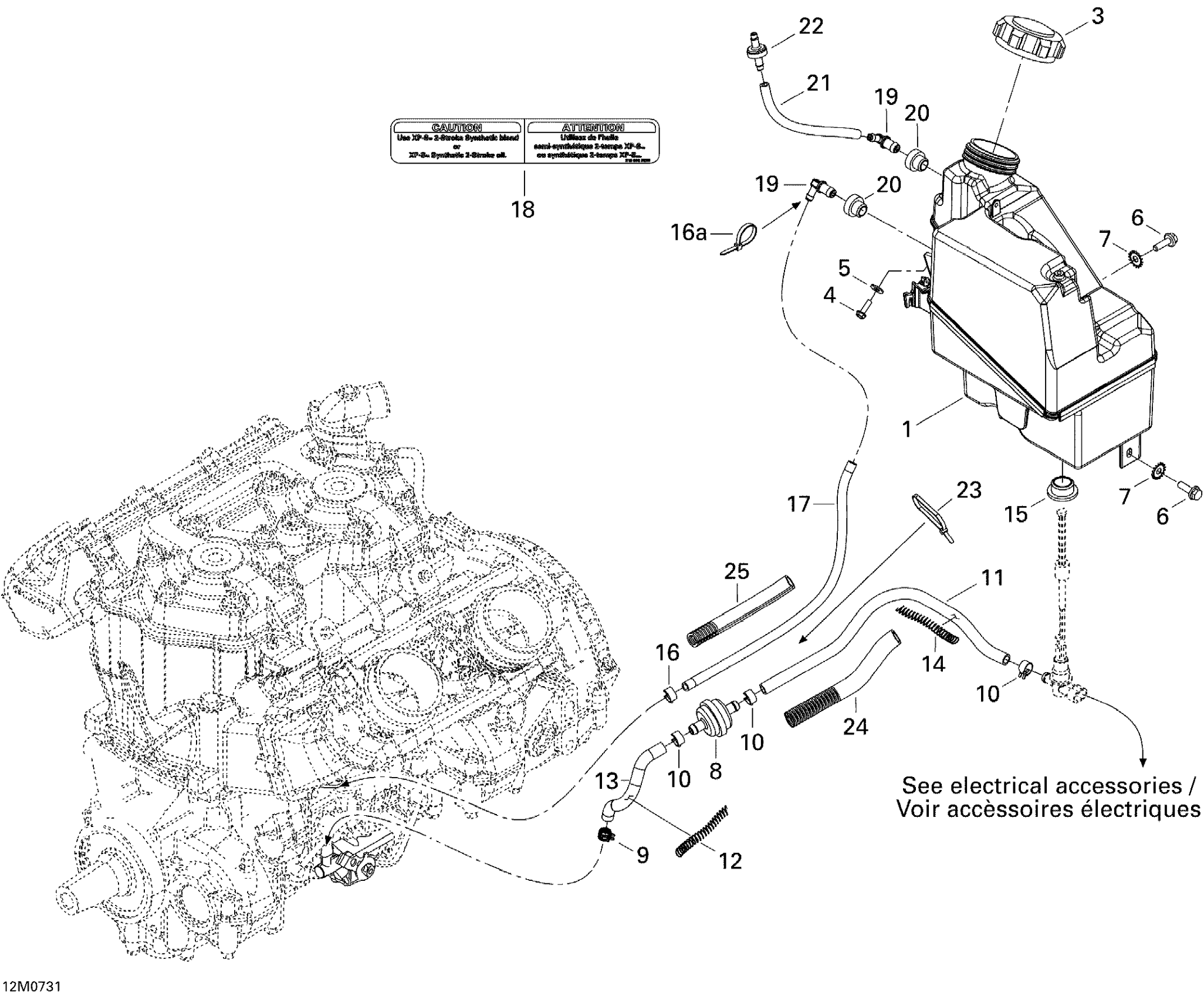

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000070

$80.74

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Forming Screw M5 X 16

210251650

$0.92

5

Flat Washer

224061121

$0.44

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Lock Washer Serrated M6

250200041

$0.92

8

Filter

414536500

$3.25

9

Spring Clamp

414420700

$0.68

10

Spring Clamp

414415200

$0.83

11

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

12

SPRING_COMPRESSION - Call your local BRP dealership

414940300

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

14

SPRING - Call your local BRP dealership

519000065

Unavailable

15

Insulating Ring

570023000

$4.62

16

Spring Clamp

414554800

$0.83

16a

Tie Wrap 142 mm

293750002

$0.88

17

Polyurethane Hose 10000Mm Long

219704410

$46.12

18

Warning Decal, Oil

516002325

Unavailable

19

Male Connector

414580700

$3.38

20

Grommet

513032908

$8.74

21

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Check Valve

275500398

$8.57

23

Tie Wrap 142 mm

293750002

$0.88

24

Tubing 10 MM 1000MM Long

219704407

$2.20

25

Was 409901700 Tubing (9 mm)

219704399

$79.97
