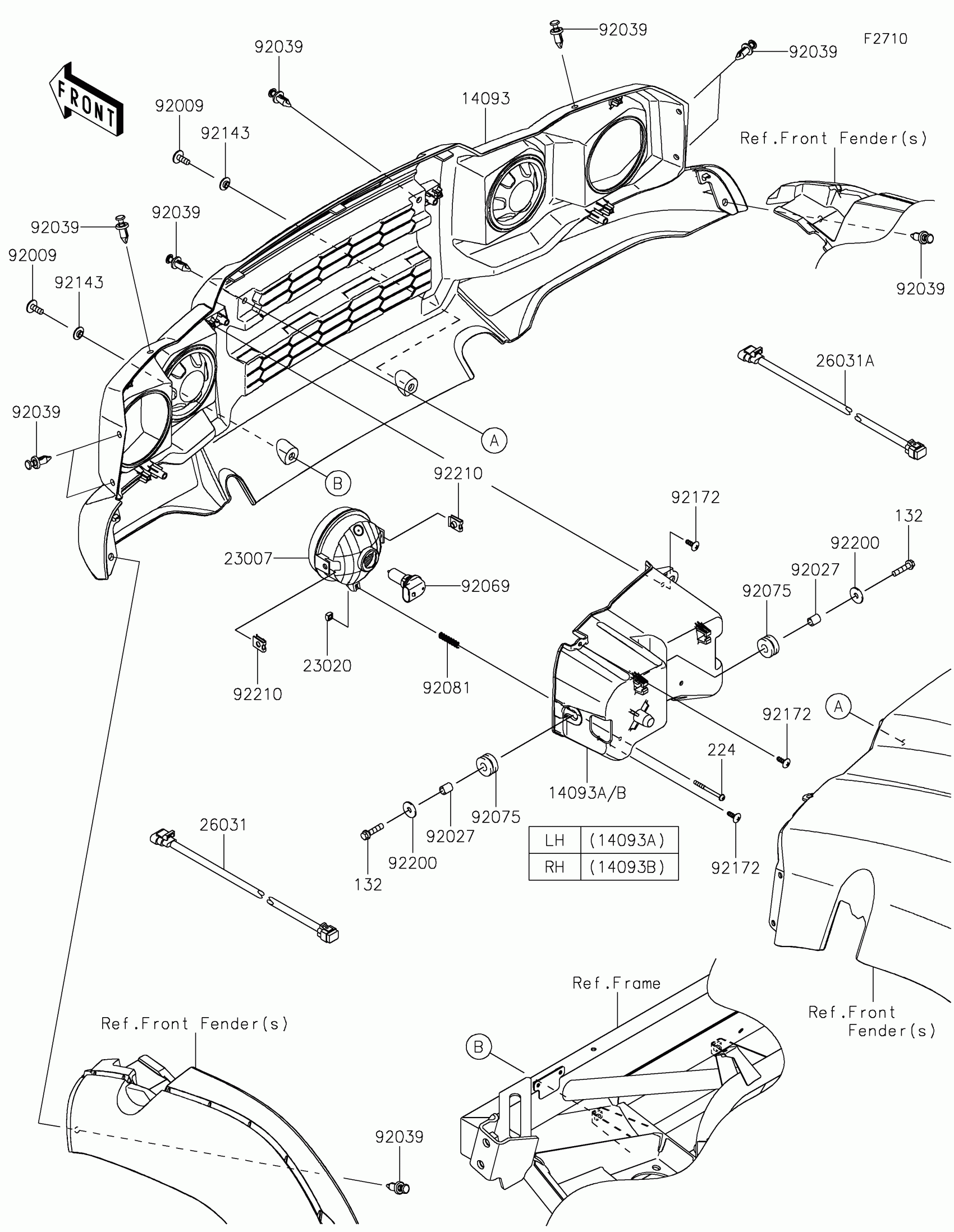

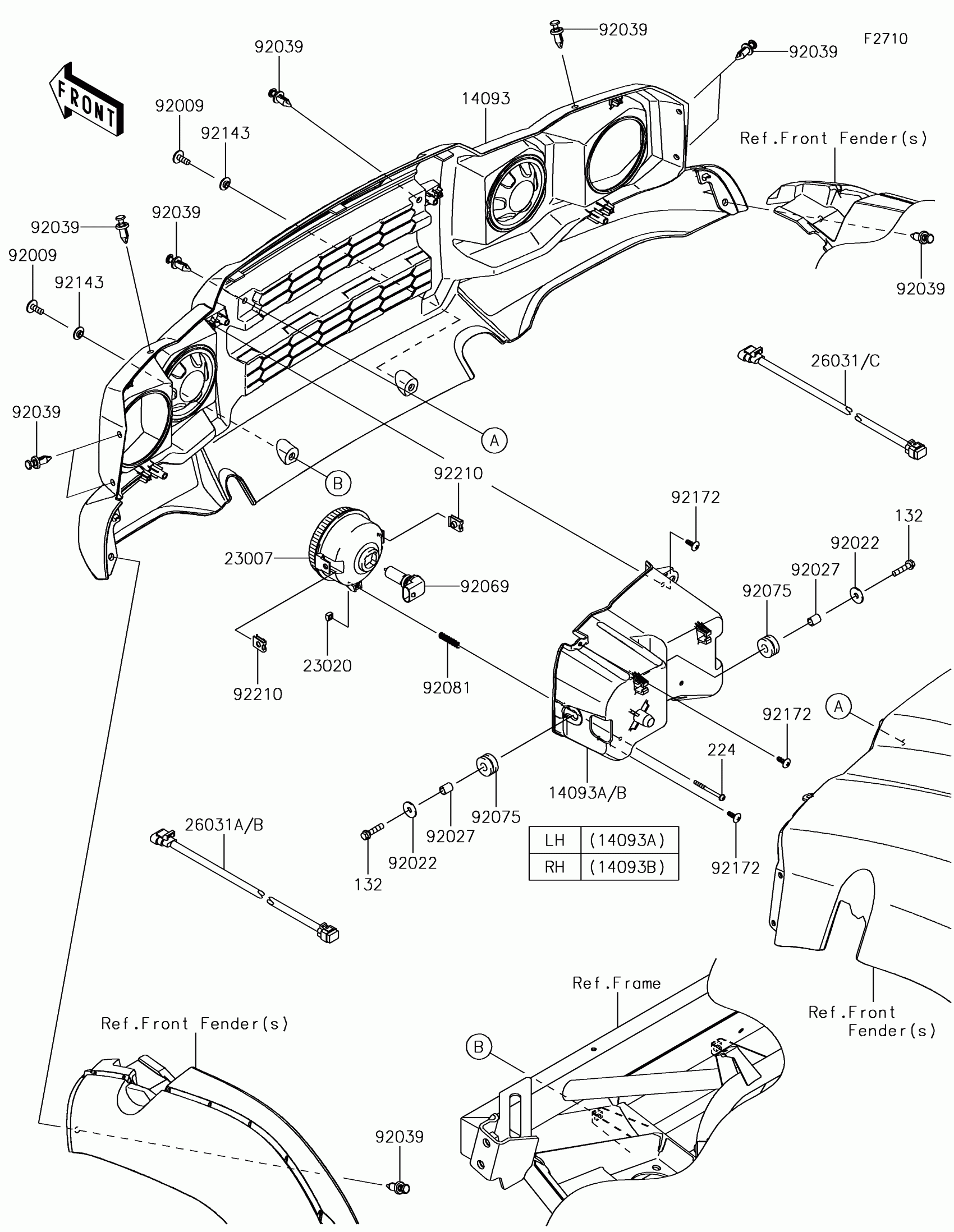

Kawasaki MULE SX™ Headlight(s) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0392

$93.40

14093A

COVER,HEAD LAMP,LH

14093-0394

$13.01

14093B

COVER,HEAD LAMP,RH

14093-0395

$16.12

23007

LENS-COMP,HEAD LAMP

23007-0096

$44.76

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

26031B

HARNESS,HEAD LAMP,LH

26031-2384

$16.54

26031C

HARNESS,HEAD LAMP,RH

26031-2385

$18.51

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92039

RIVET

92039-0776

$0.80

92069

BULB,12V 35/35W

92069-0019

$11.94

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,5X14

92172-0265

$1.04

92210

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33
