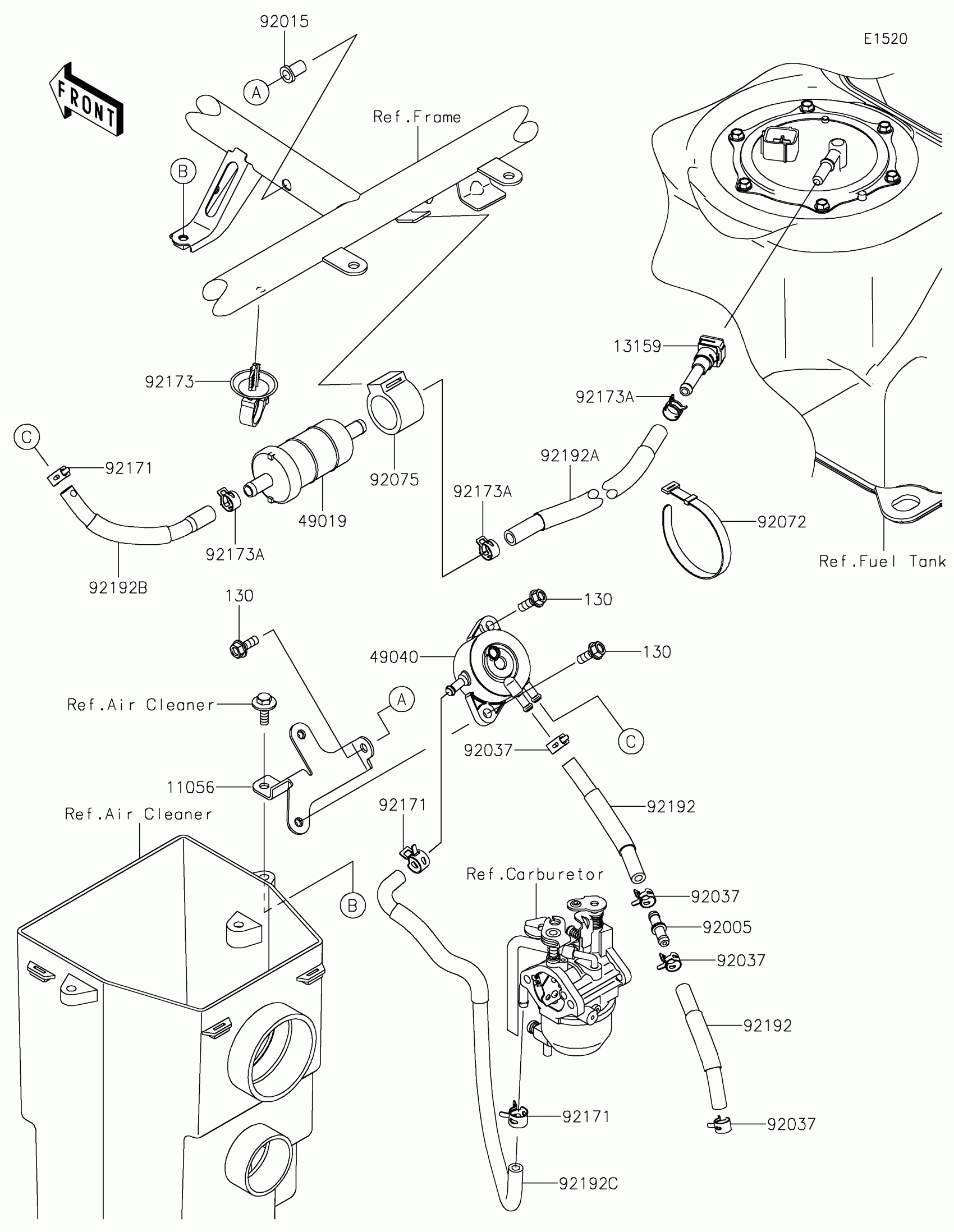

Kawasaki MULE SX™ Fuel Pump Diagram

Description

Price

11056

BRACKET,PUMP-FUEL

11056-4297

$7.64

13159

CONNECTOR

13159-0022

$23.32

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-7001

$31.70

92005

FITTING

92005-0856

$19.69

92015

NUT,POP,6MM

92015-1759

$4.42

92037

CLAMP,TUBE

92037-1505

$3.63

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP

92171-0515

$5.56

92192

TUBE,CARB.-PUMP FUEL

92192-0826

$59.18

92192A

TUBE,CRAB.INSULATOR-PUMP

92192-1613

$5.54

92192B

TUBE,TANK-FUEL FILTER

92192-1689

$42.61

92192C

TUBE,FUEL FILTER-FUEL PUMP

92192-1750

$40.71

130

BOLT-FLANGED,6X16

130BA0616

$0.97
