2019 Kawasaki Mule SX™ 4x4 XC SE Swingarm Diagram

← All diagrams

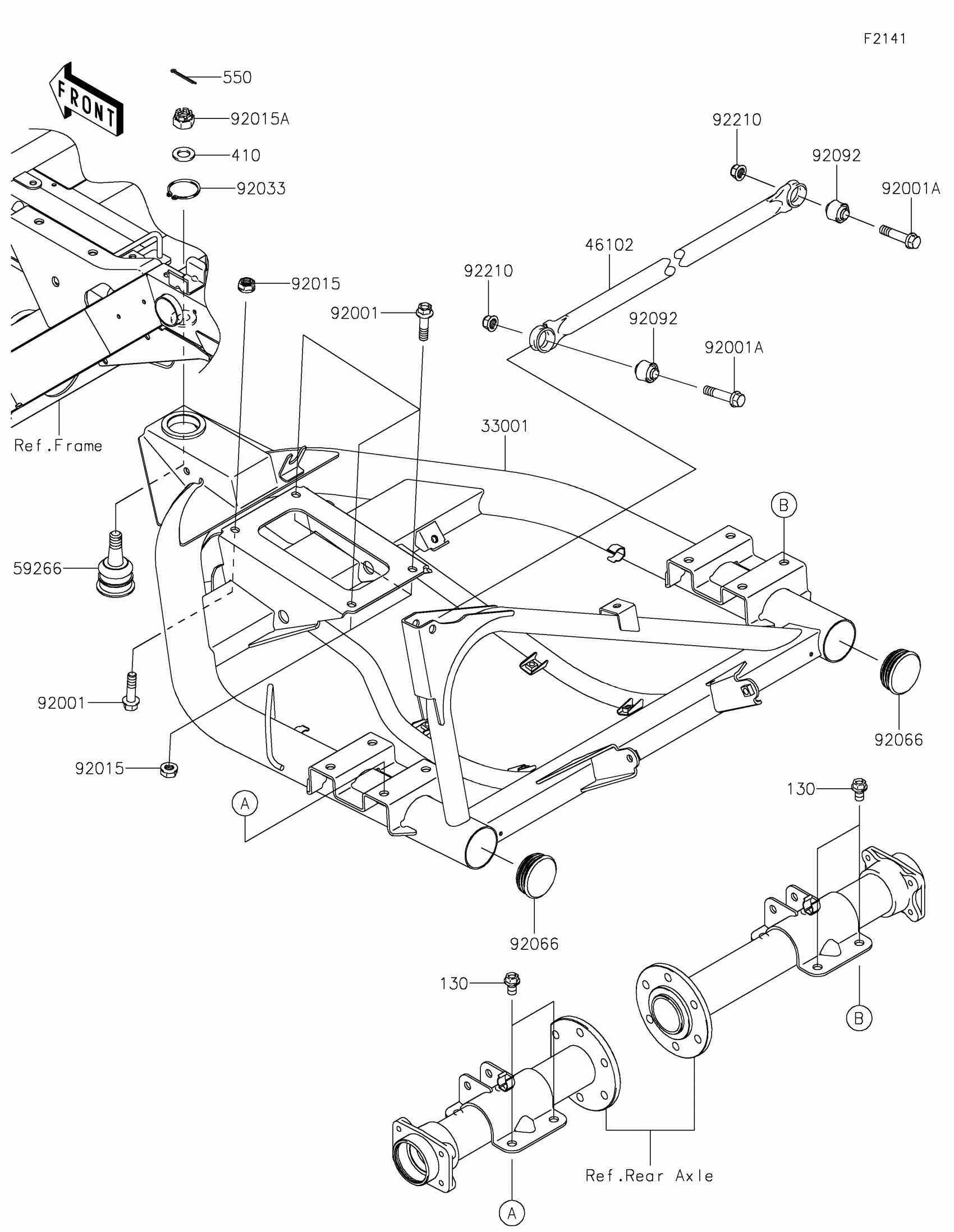

Find the part on the Swingarm diagram for your 2019 Kawasaki Mule SX™ 4x4 XC SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ 4x4 XC SE Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0061

1

$542.25

In stock

46102

ROD

46102-0583

1

$82.45

In stock

59266

JOINT-BALL

59266-1087

1

$59.58

In stock

92001

BOLT,FLANGED,10X38

92001-1293

1

$7.55

In stock

92001A

BOLT,FLANGED,10X44

92001-1499

1

$4.37

In stock

92015

1

$7.86

In stock

92015A

NUT,CASTLE,14MM

92015-1841

1

$6.66

In stock

92033

RING-SNAP

92033-0050

1

$7.56

In stock

92066

PLUG

92066-0044

1

$4.02

In stock

92092

BUSHING-RUBBER

92092-7502

1

$10.34

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

410

1

$1.81

In stock

550

PIN-COTTER,3.2X30

550AA3230

1

$2.08

In stock
