2019 Kawasaki Mule SX™ 4x4 XC SE Ignition Switch Diagram

← All diagrams

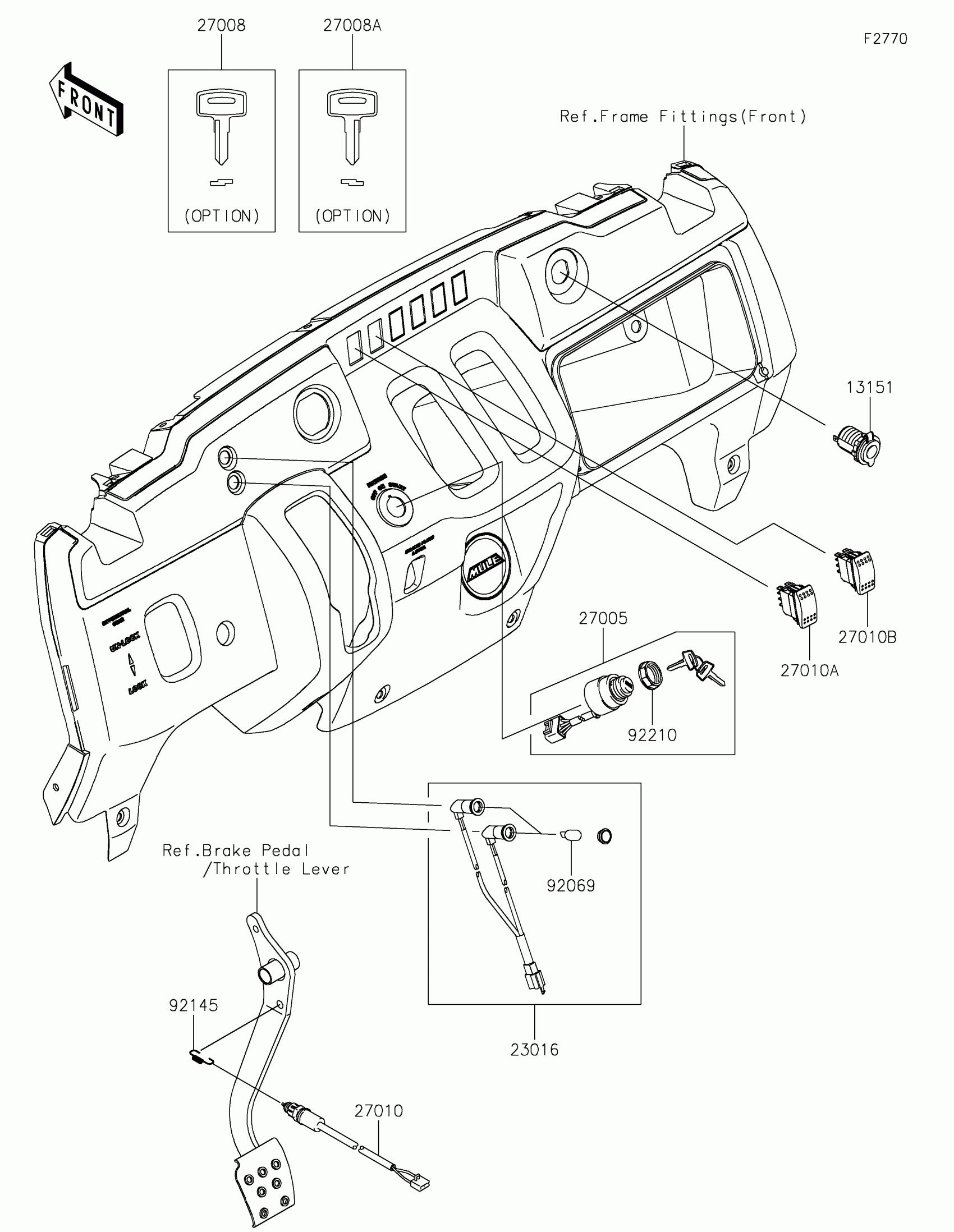

Find the part on the Ignition Switch diagram for your 2019 Kawasaki Mule SX™ 4x4 XC SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ 4x4 XC SE Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

SWITCH-COMP,OUTLET,12V

13151-0556

1
Out of stock

23016

LAMP-ASSY,PARKING&OIL TEMP

23016-0590

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1146

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1153

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1157

1
Out of stock

27010

SWITCH,BRAKE

27010-0724

1
Out of stock

27010A

SWITCH,OUTER

27010-0806

1
Out of stock

27010B

SWITCH,INNER

27010-0807

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92145

SPRING,REAR BRAKE SWITCH

92145-7508

1
Out of stock

92210

NUT,IGNITION SWITCH

92210-1264

1
Out of stock
