2019 Kawasaki Mule SX™ 4x4 XC SE Frame Diagram

← All diagrams

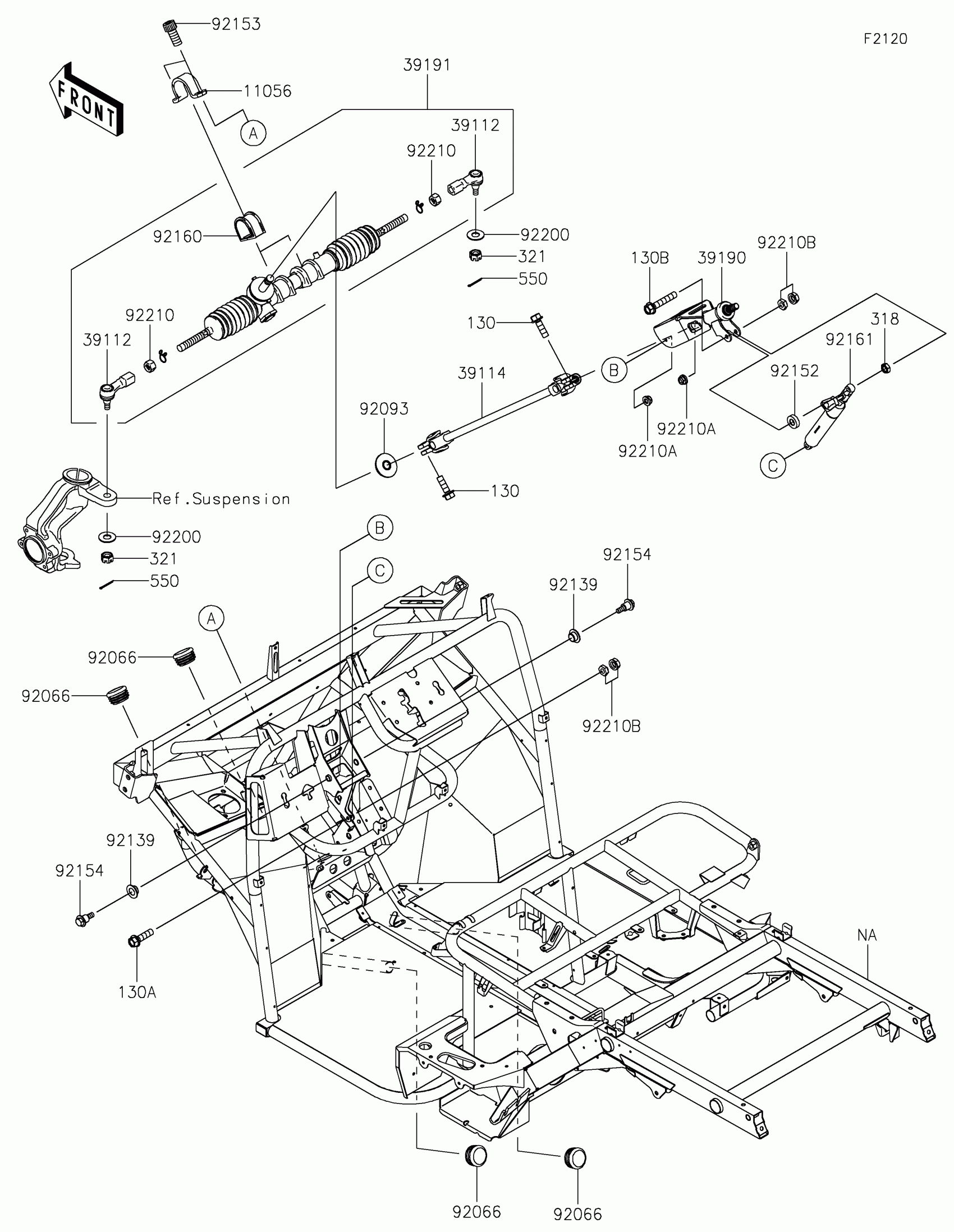

Find the part on the Frame diagram for your 2019 Kawasaki Mule SX™ 4x4 XC SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ 4x4 XC SE Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STEERING GEAR

11056-2238

1
Out of stock

39112

1

$104.28

In stock

39114

SHAFT-COMP-STRG

39114-0022

1

$289.85

In stock

39190

SHAFT-ASSY-STEERING

39190-0006

1

$221.22

In stock

39191

GEAR-ASSY-STEERING

39191-0023

1

$1,016.47

In stock

92066

PLUG

92066-0036

1
Out of stock

92093

SEAL

92093-1313

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92152

COLLAR,8.2X18X5

92152-1848

1
Out of stock

92153

BOLT,SOCKET,10X23

92153-1269

1
Out of stock

92154

BOLT,6X21.5

92154-1320

1
Out of stock

92160

DAMPER,STEERING GEAR

92160-1084

1
Out of stock

92161

DAMPER,GAS SPRING

92161-1825

1

$46.43

In stock

92200

WASHER,10.3X23X1.6

92200-2009

1
Out of stock

92210

NUT,14MM

92210-0217

1
Out of stock

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock

92210B

NUT,HARD LOCK,8MM

92210-0934

1
Out of stock

130

BOLT-FLANGED,8X25

130BA0825

1

$2.34

In stock

130A

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

130B

BOLT-FLANGED,8X45

130CA0845

1

$1.10

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

321

NUT-CASTLE

321BA1000

1
Out of stock

550

PIN-COTTER,2.0X22

550AA2022

1
Out of stock
