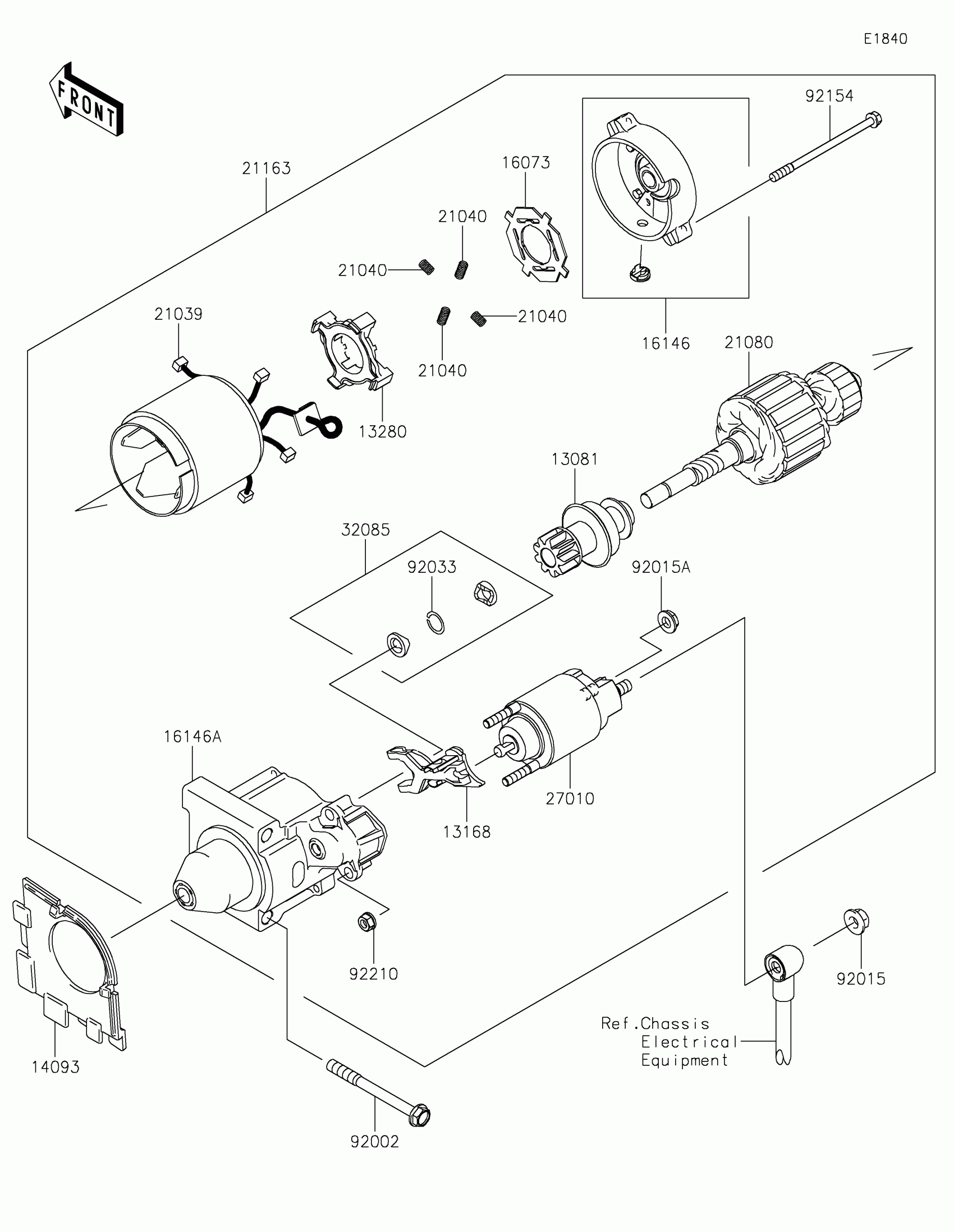

Kawasaki MULE SX™ 4x4 XC LE Starter Motor Diagram

Description

Price

13081

CLUTCH-ASSY

13081-0710

$89.28

13168

LEVER,PINION DRIVE

13168-0847

$17.58

13280

HOLDER,BRUSH

13280-0873

$22.92

14093

COVER

14093-0932

$6.47

16073

INSULATOR

16073-0854

$8.02

16146

COVER-ASSY

16146-0886

$61.07

16146A

COVER-ASSY

16146-0887

$87.68

21039

BRUSH,STARTER-ELECTRIC

21039-0011

$11.88

21040

SPRING-BRUSH

21040-0005

$2.69

21080

ARMATURE,STARTER-ELECTRIC

21080-0011

$254.37

21163

STARTER-ELECTRIC

21163-0801

$444.34

27010

SWITCH,MAGNET

27010-0843

$158.45

32085

STOPPER,PINION

32085-0797

$12.02

92002

BOLT,8X83

92002-1794

$4.48

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT

92015-2147

$2.29

92033

RING-SNAP

92033-0777

$3.04

92154

BOLT

92154-2116

$9.01

92210

NUT

92210-1493

$1.06
