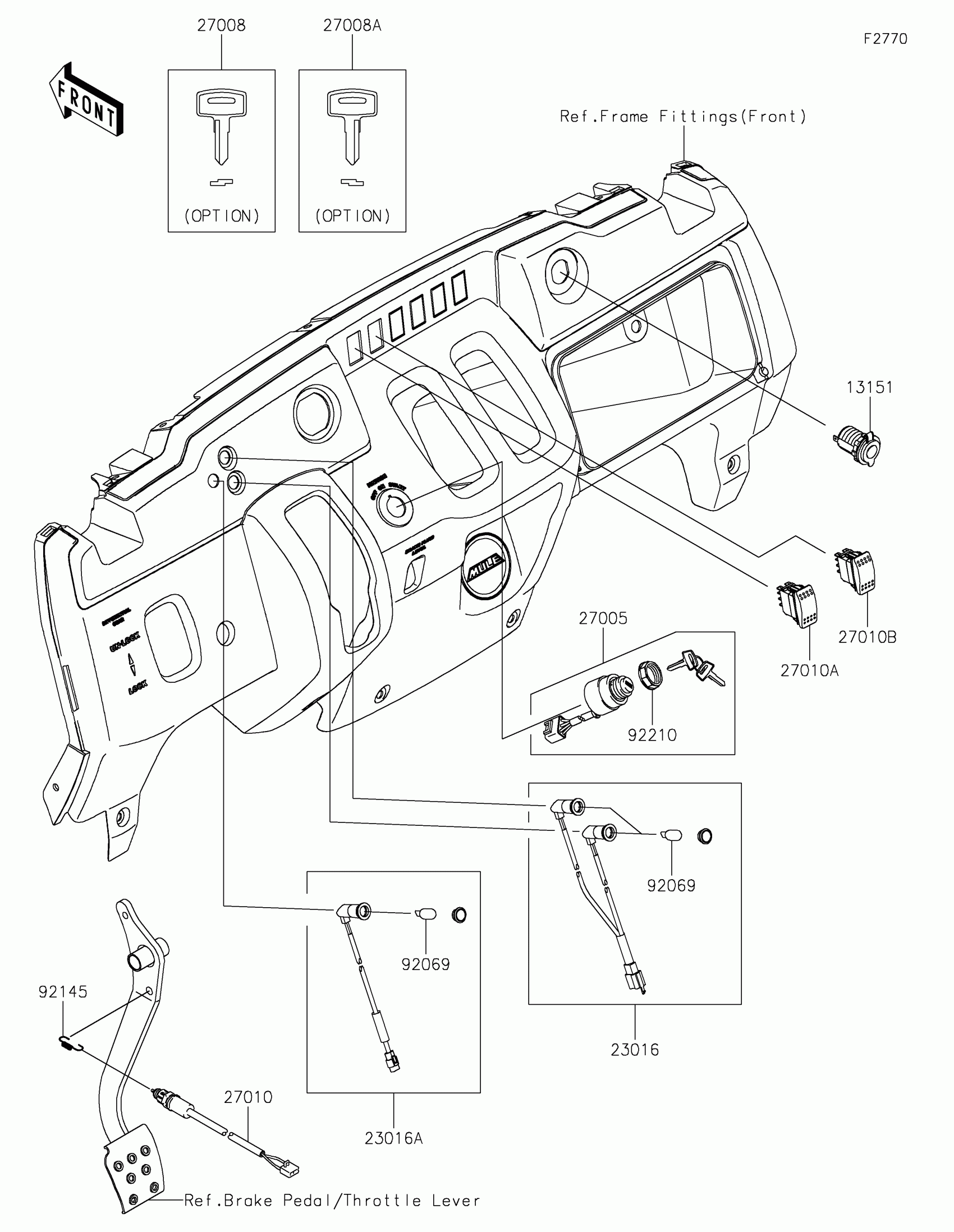

Kawasaki MULE SX™ 4x4 XC LE FI Ignition Switch Diagram

Description

Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

23016

LAMP-ASSY,PARKING&OIL TEMP

23016-0628

$88.49

23016A

LAMP-ASSY,MIL

23016-0629

$15.90

27005

SWITCH-ASSY-IGNITION

27005-1146

Unavailable

27008

KEY-LOCK,BLANK

27008-1153

$14.13

27008A

KEY-LOCK,BLANK

27008-1157

$14.13

27010

SWITCH,BRAKE

27010-0724

$31.74

27010A

SWITCH,OUTER

27010-0806

$56.49

27010B

SWITCH,INNER

27010-0807

$63.97

92069

BULB,12V 1.7W,T10WB

92069-0103

$3.95

92145

SPRING,REAR BRAKE SWITCH

92145-7508

$6.38

92210

NUT,IGNITION SWITCH

92210-1264

$4.75
