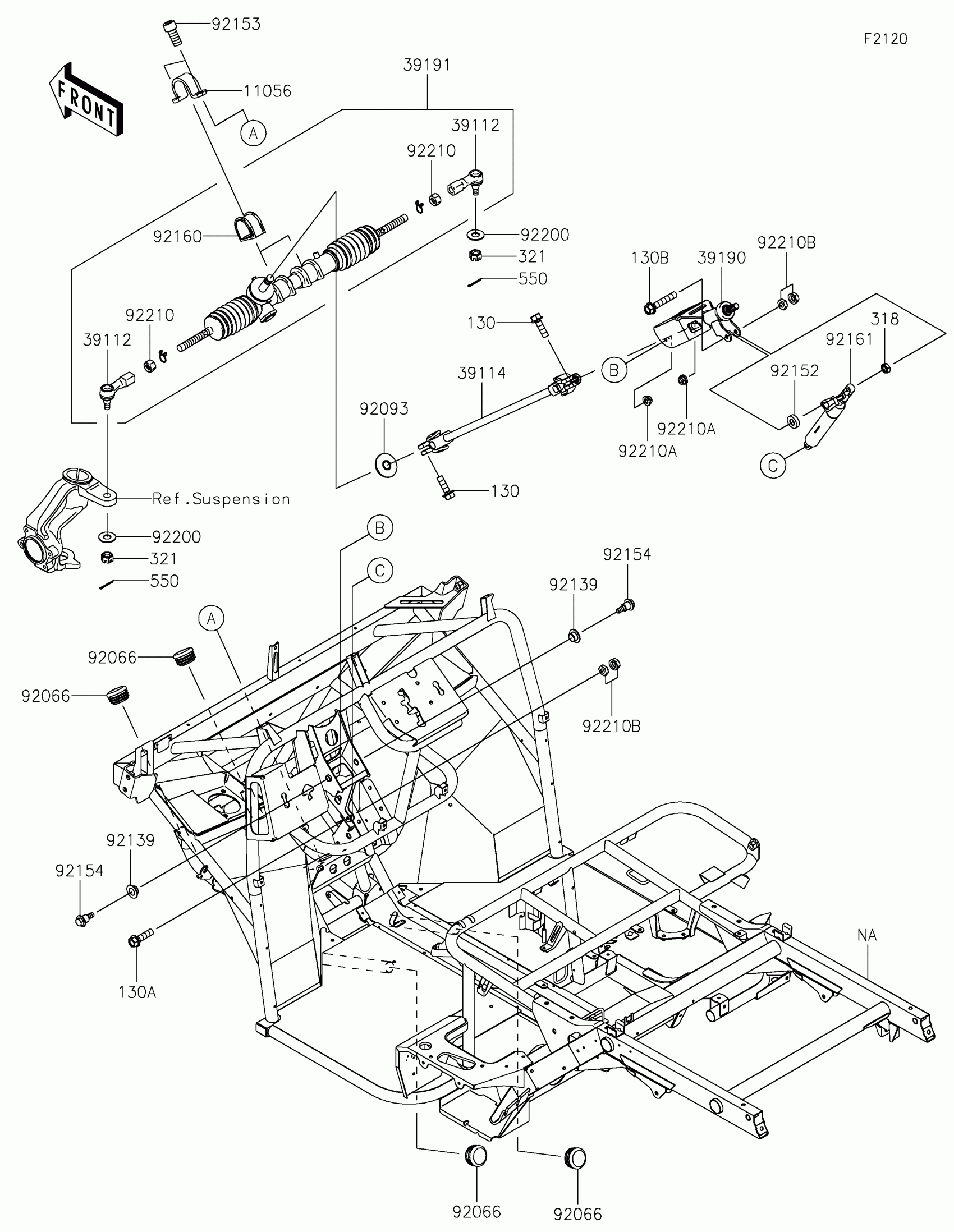

Kawasaki MULE SX™ 4x4 XC LE FI Frame Diagram

Description

Price

11056

BRACKET,STEERING GEAR

11056-2238

$8.07

39112

RODEND-TIE,STEERING GEAR

39112-0008

$104.28

39114

SHAFT-COMP-STRG

39114-0022

$289.85

39190

SHAFT-ASSY-STEERING

39190-0006

$206.86

39191

GEAR-ASSY-STEERING

39191-0023

$975.40

92066

PLUG

92066-0036

$1.52

92093

SEAL

92093-1313

$7.17

92139

BUSHING

92139-0230

$4.10

92152

COLLAR,8.2X18X5

92152-1848

$4.98

92153

BOLT,SOCKET,10X23

92153-1269

$1.98

92154

BOLT,6X21.5

92154-1320

$2.05

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92161

DAMPER,GAS SPRING

92161-1825

$45.35

92200

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,14MM

92210-0217

$4.95

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210B

NUT,HARD LOCK,8MM

92210-0934

$4.34

130

BOLT-FLANGED,8X25

130BA0825

$2.01

130A

BOLT-FLANGED,8X30

130CA0830

$0.86

130B

BOLT-FLANGED,8X45

130CA0845

$0.95

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

321

NUT-CASTLE

321BA1000

$4.93

550

PIN-COTTER,2.0X22

550AA2022

$1.80
