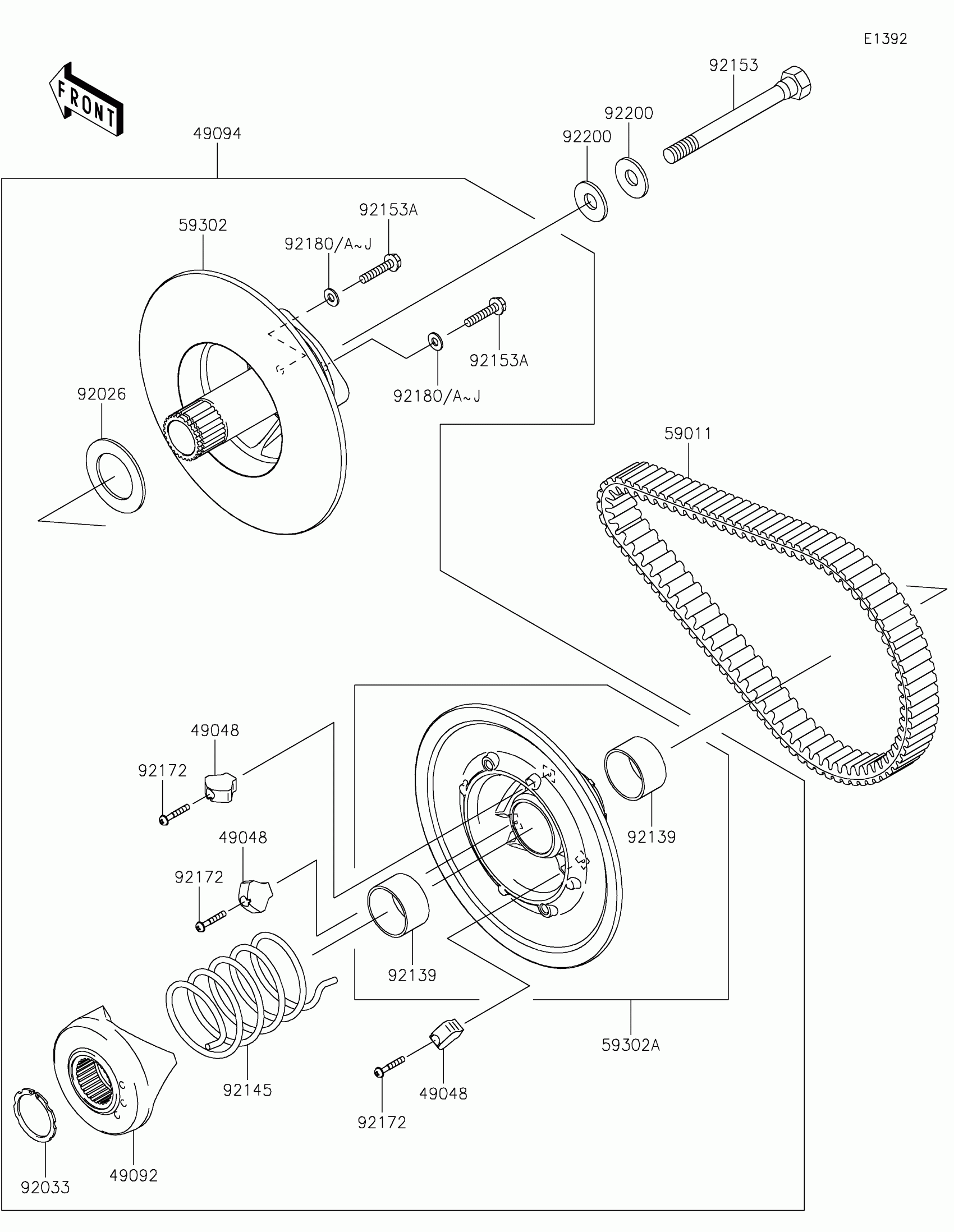

Kawasaki MULE SX™ 4x4 XC LE FI Driven Converter/Drive Belt Diagram

Description

Price

49048

SHOE

49048-0001

$4.38

49092

RAMP

49092-0005

$65.54

49094

CONVERTER-ASSY-DRIVEN

49094-0049

$525.78

59011

BELT

59011-0011

$143.43

59302

SHEAVE-COMP,FIXED

59302-0008

Unavailable

59302A

SHEAVE-COMP

59302-0098

$223.15

92026

SPACER,38X60X2.5

92026-0046

$10.02

92033

RING-SNAP

92033-0053

$5.44

92139

BUSHING

92139-0054

$11.98

92145

SPRING

92145-0743

$38.55

92153

BOLT,12X121

92153-0593

Unavailable

92153A

BOLT,6X28

92153-0833

$6.32

92172

SCREW,4X25

92172-0060

$1.64

92180

SHIM,T=0.8

92180-0150

$2.92

92180A

SHIM,T=1.0

92180-0151

$2.92

92180B

SHIM,T=1.2

92180-0152

$2.92

92180C

SHIM,T=1.4

92180-0153

$2.92

92180D

SHIM,T=1.6

92180-0154

$2.92

92180E

SHIM,T=1.8

92180-0155

$2.92

92180F

SHIM,T=2.0

92180-0156

$2.92

92180G

SHIM,T=2.3

92180-0157

$2.92

92180H

SHIM,T=2.5

92180-0158

$2.92

92180I

SHIM,T=2.8

92180-0159

$2.92

92180J

SHIM,T=3.2

92180-0160

$2.92

92200

WASHER

92200-0249

$4.34
