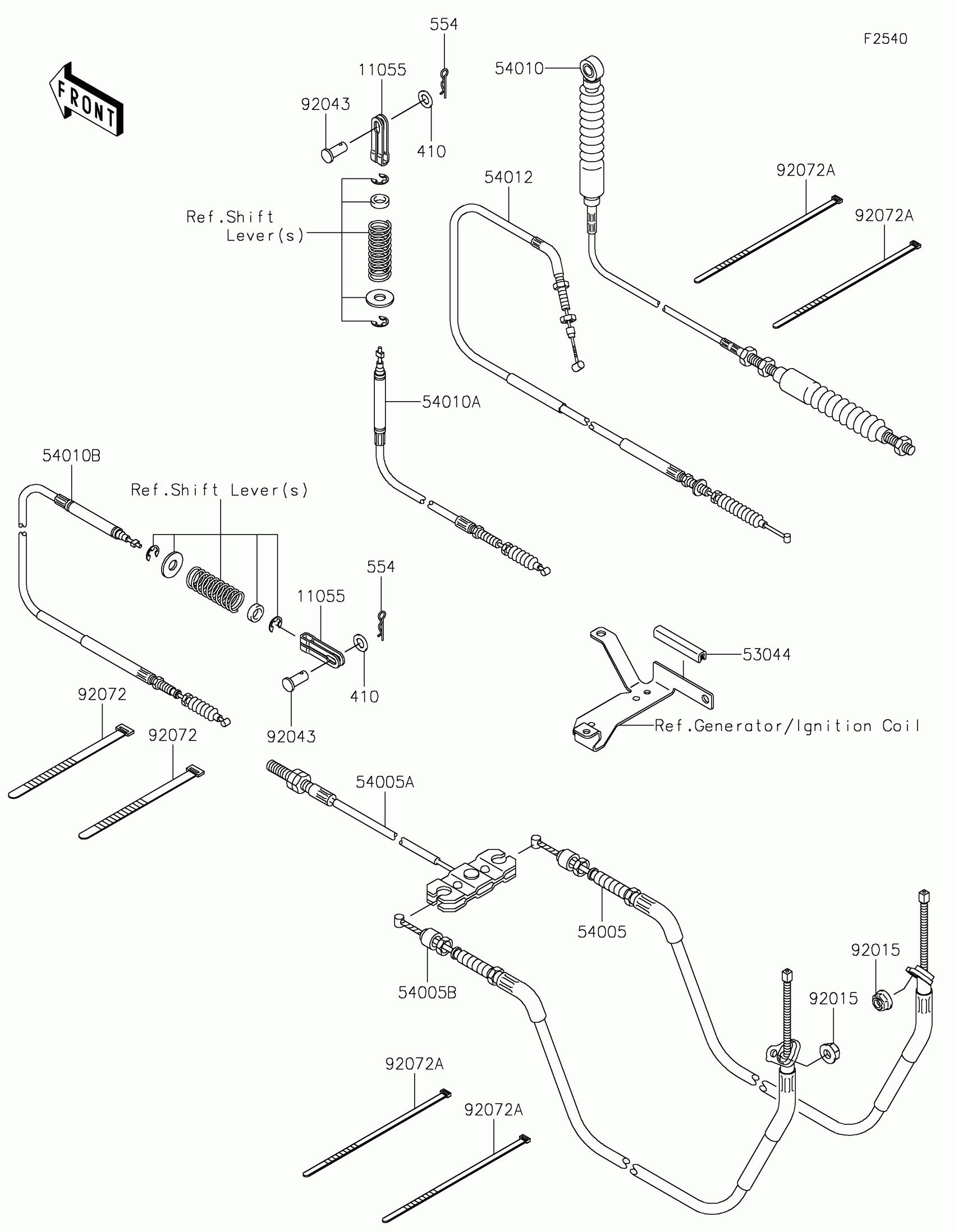

Kawasaki MULE SX™ 4x4 XC LE FI Cables Diagram

Description

Price

11055

BRACKET,DIFF LOCK

11055-7505

$9.02

53044

TRIM,L=60

53044-0651

$2.20

54005

CABLE-BRAKE,PARKING,RH

54005-0314

$40.07

54005A

CABLE-BRAKE,PARKING,FR

54005-1198

$8.16

54005B

CABLE-BRAKE,PARKING,LH

54005-7505

$33.05

54010

CABLE,SHIFT CONTROL

54010-0014

$175.55

54010A

CABLE,2-4WD

54010-0015

$52.08

54010B

CABLE,DIFF LOCK

54010-0017

$91.31

54012

CABLE-THROTTLE

54012-0702

$43.23

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92043

PIN,6X11

92043-092

$4.17

92072

BAND,L=149

92072-031

$3.97

92072A

BAND,L=188

92072-1239

$1.51

410

WASHER-PLAIN-SMALL

410AA0600

$1.19

554

PIN-SNAP,1.2X21.2

554DA0600

$0.92
