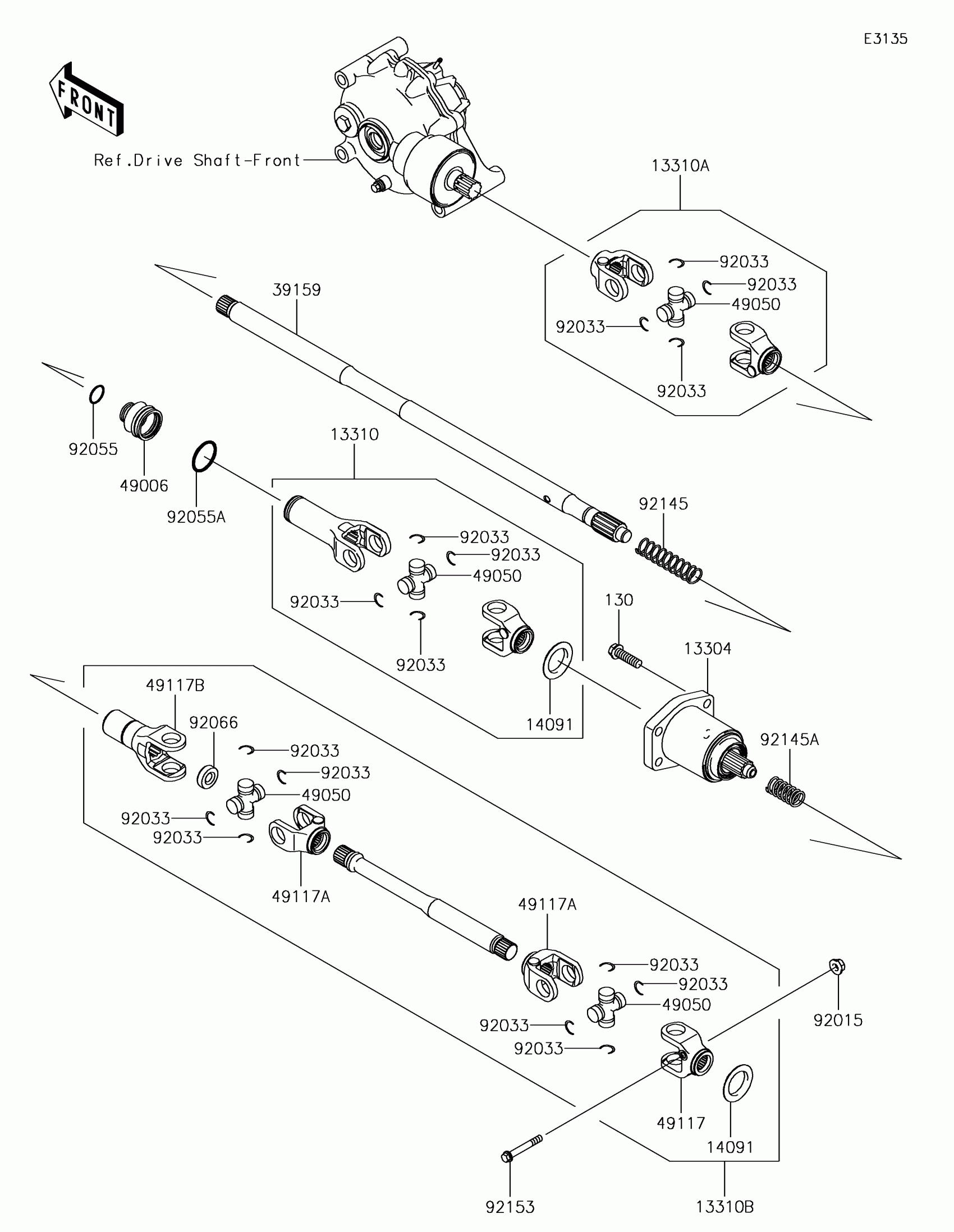

Kawasaki MULE SX™ 4x4 XC Drive Shaft-Propeller Diagram

Description

Price

13304

HOUSING-ASSY

13304-0002

$296.31

13310

SHAFT-ASSY,HOUSING

13310-0569

$268.44

13310A

SHAFT-ASSY,FR GEAR

13310-0570

$268.44

13310B

SHAFT-ASSY,RR GEAR

13310-0571

$343.66

14091

COVER

14091-0434

$4.92

39159

SHAFT-DRIVE,FR

39159-0568

$411.90

49006

BOOT

49006-0010

$13.21

49050

SPIDER

49050-1075

$74.89

49117

YOKE,21T

49117-0568

$59.04

49117A

YOKE,21T

49117-0570

$59.04

49117B

YOKE,13T

49117-0572

$112.51

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92033

RING-SNAP

92033-1030

$3.29

92055

RING-O,18X24X3

92055-1633

$4.90

92055A

RING-O,30X35X2.5

92055-1693

$4.90

92066

PLUG

92066-0027

$7.56

92145

SPRING

92145-0247

$3.08

92145A

SPRING

92145-0280

$4.07

92153

BOLT,6X44

92153-0595

$2.15

130

BOLT-FLANGED,10X35

130BA1035

$2.63
