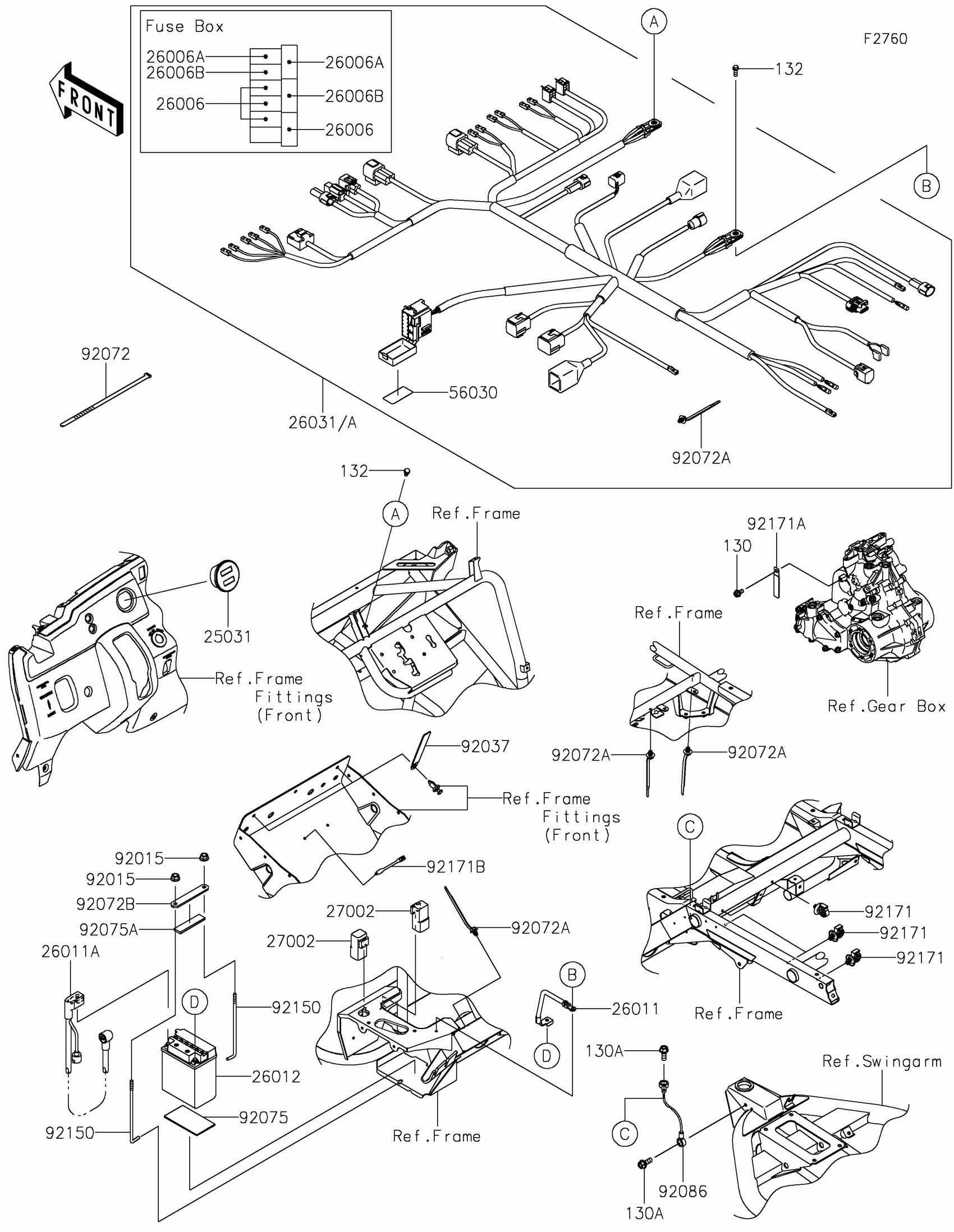

Kawasaki MULE SX™ 4x4 XC Chassis Electrical Equipment Diagram

Description

Price

25031

METER-ASSY

25031-0724

$108.49

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$4.16

26011

WIRE-LEAD,BATTERY(-)

26011-0923

$47.06

26011A

WIRE-LEAD,BATTERY(+)

26011-0924

$76.61

26012

BATTERY,YB14A-A2,12V 14AH

26012-1446

$102.11

26031A

HARNESS,MAIN

26031-2382

$258.04

27002

RELAY-ASSY

27002-1088

$38.14

56030

LABEL,FUSE BOX

56030-0950

$2.37

92015

NUT,FLANGED,8MM

92015-1406

$3.53

92037

CLAMP,HARNESS,L=100

92037-1636

$7.56

92072

BAND,L=188

92072-1239

$1.51

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92072B

BAND,BATTERY

92072-7507

$12.27

92075

DAMPER

92075-1076

$8.63

92075A

DAMPER

92075-1214

$3.92

92086

WIRE

92086-1054

$24.59

92150

BOLT,BATTERY

92150-1293

$8.44

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP,L=60

92171-0652

$2.15

92171B

CLAMP

92171-1365

$3.76

130

BOLT-FLANGED,6X12

130AA0612

$0.73

130A

BOLT-FLANGED,8X20

130BA0820

$3.27

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21
