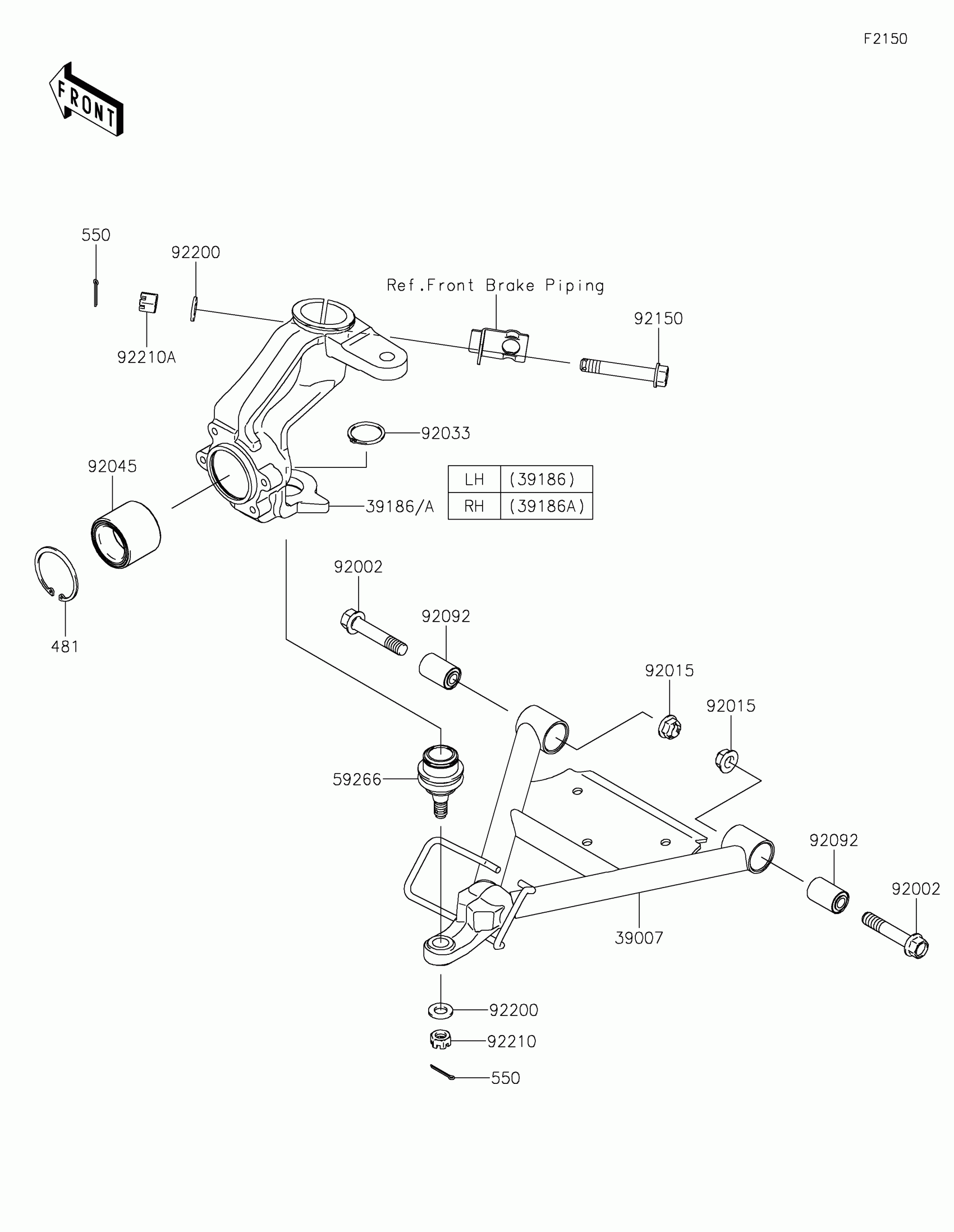

Kawasaki MULE SX™ 4x4 XC CAMO Suspension Diagram

Description

Price

39007

ARM-SUSP

39007-0397

$248.51

39186

KNUCKLE,LH

39186-0314

$162.31

39186A

KNUCKLE,RH

39186-0315

$162.31

59266

JOINT-BALL

59266-1080

$87.41

92002

BOLT,ROD,12MM

92002-1757

$10.07

92015

NUT

92015-1706

$5.93

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$5.07

92045

BEARING-BALL,DAC2552W-7CS31

92045-0028

$68.90

92092

BUSHING-RUBBER

92092-005

$11.16

92150

BOLT,FLANGED,12X72

92150-1356

$10.88

92200

WASHER,12.3X23X2.3

92200-1004

$3.72

92210

NUT,CASTLE,12MM

92210-0395

$3.07

92210A

NUT,12MM

92210-7501

$2.97

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.92

550

PIN-COTTER,3.0X25

550AA3025

$0.67
