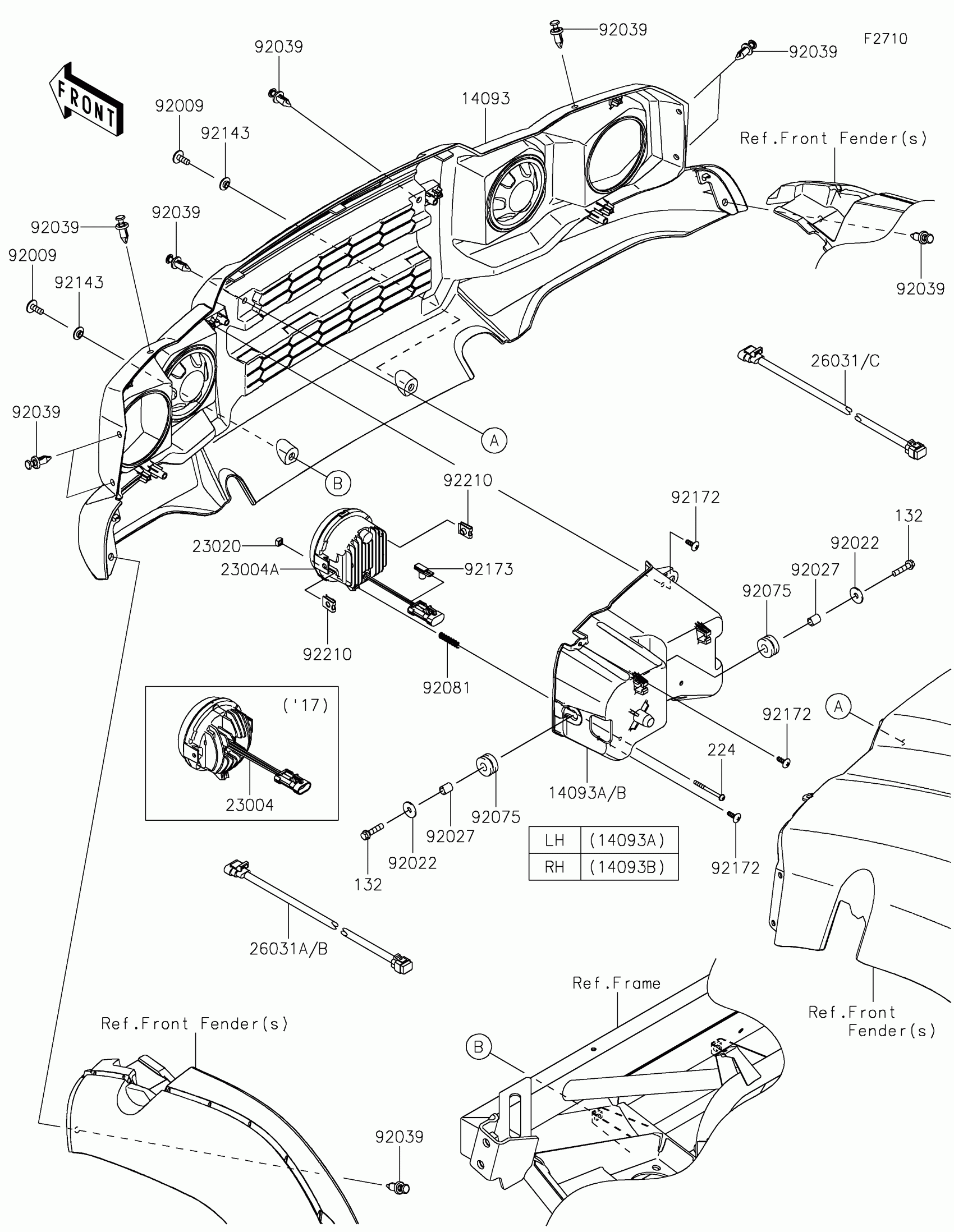

Kawasaki MULE SX™ 4x4 XC CAMO Headlight(s) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0392

$97.34

14093A

COVER,HEAD LAMP,LH

14093-0394

$16.12

14093B

COVER,HEAD LAMP,RH

14093-0395

$16.12

23004A

LAMP-HEAD

23004-0372

$146.36

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

26031B

HARNESS,HEAD LAMP,LH

26031-2384

$16.54

26031C

HARNESS,HEAD LAMP,RH

26031-2385

$18.51

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.21

92039

RIVET

92039-0776

$0.80

92075

DAMPER,10X24X12

92075-1690

$3.97

92081

SPRING,FOCUS ADJUST

92081-1896

$4.16

92143

COLLAR

92143-1087

$3.11

92172

SCREW,TAPPING,5X14

92172-0265

$1.20

92173

CLAMP

92173-1491

$0.83

92210

NUT

92210-1125

$3.78

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.54
