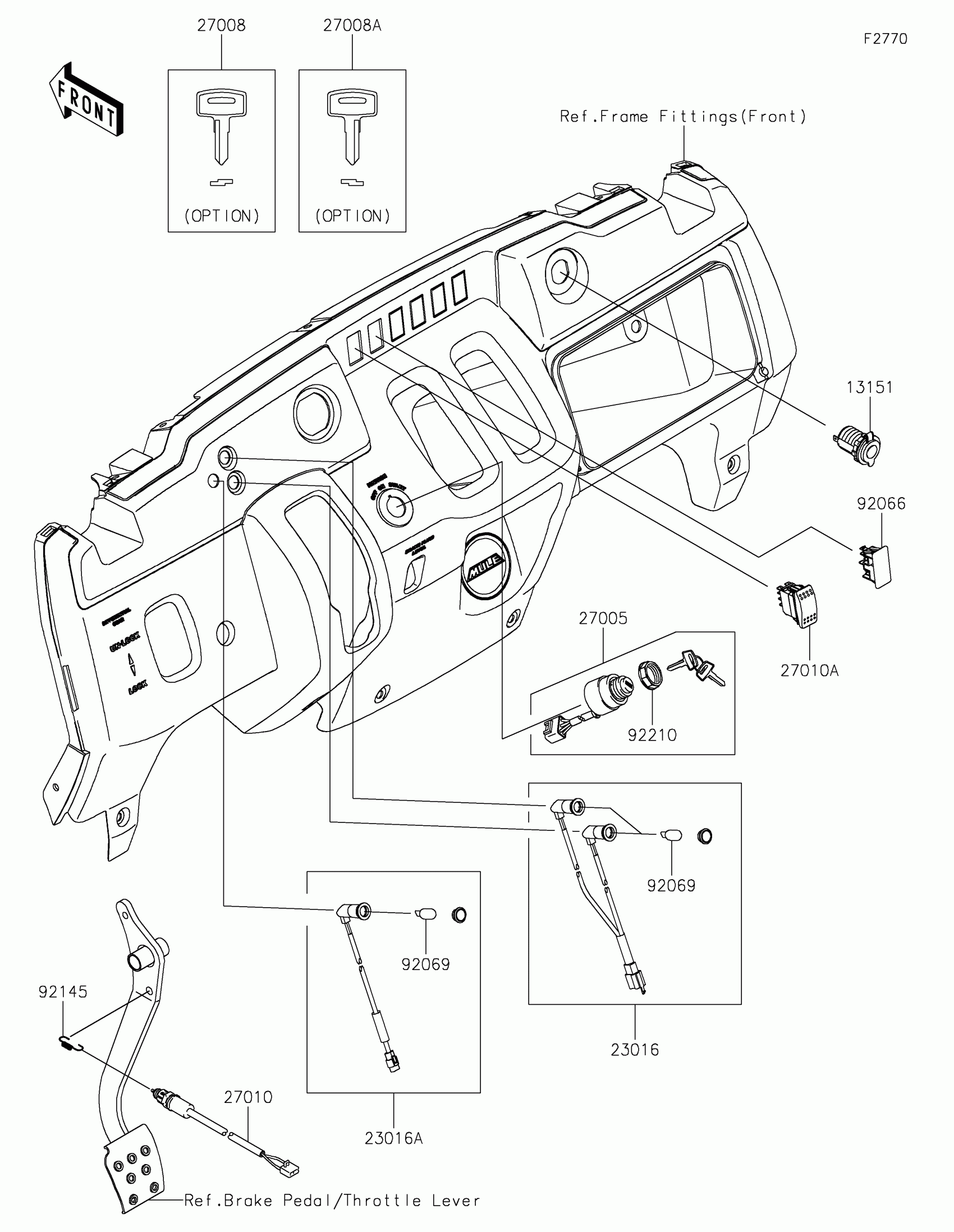

Kawasaki MULE SX™ 4x4 XC CAMO FI Ignition Switch Diagram

Description

Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

23016

LAMP-ASSY,PARKING&OIL TEMP

23016-0628

$88.49

23016A

LAMP-ASSY,MIL

23016-0629

$15.90

27005

SWITCH-ASSY-IGNITION

27005-1146

$91.54

27008

KEY-LOCK,BLANK

27008-1153

$13.56

27008A

KEY-LOCK,BLANK

27008-1157

$13.56

27010

SWITCH,BRAKE

27010-0724

$30.46

27010A

SWITCH,OUTER

27010-0806

$55.18

92066

PLUG

92066-0922

$3.24

92069

BULB,12V 1.7W,T10WB

92069-0103

$3.79

92145

SPRING,REAR BRAKE SWITCH

92145-7508

$6.12

92210

NUT,IGNITION SWITCH

92210-1264

$4.53
