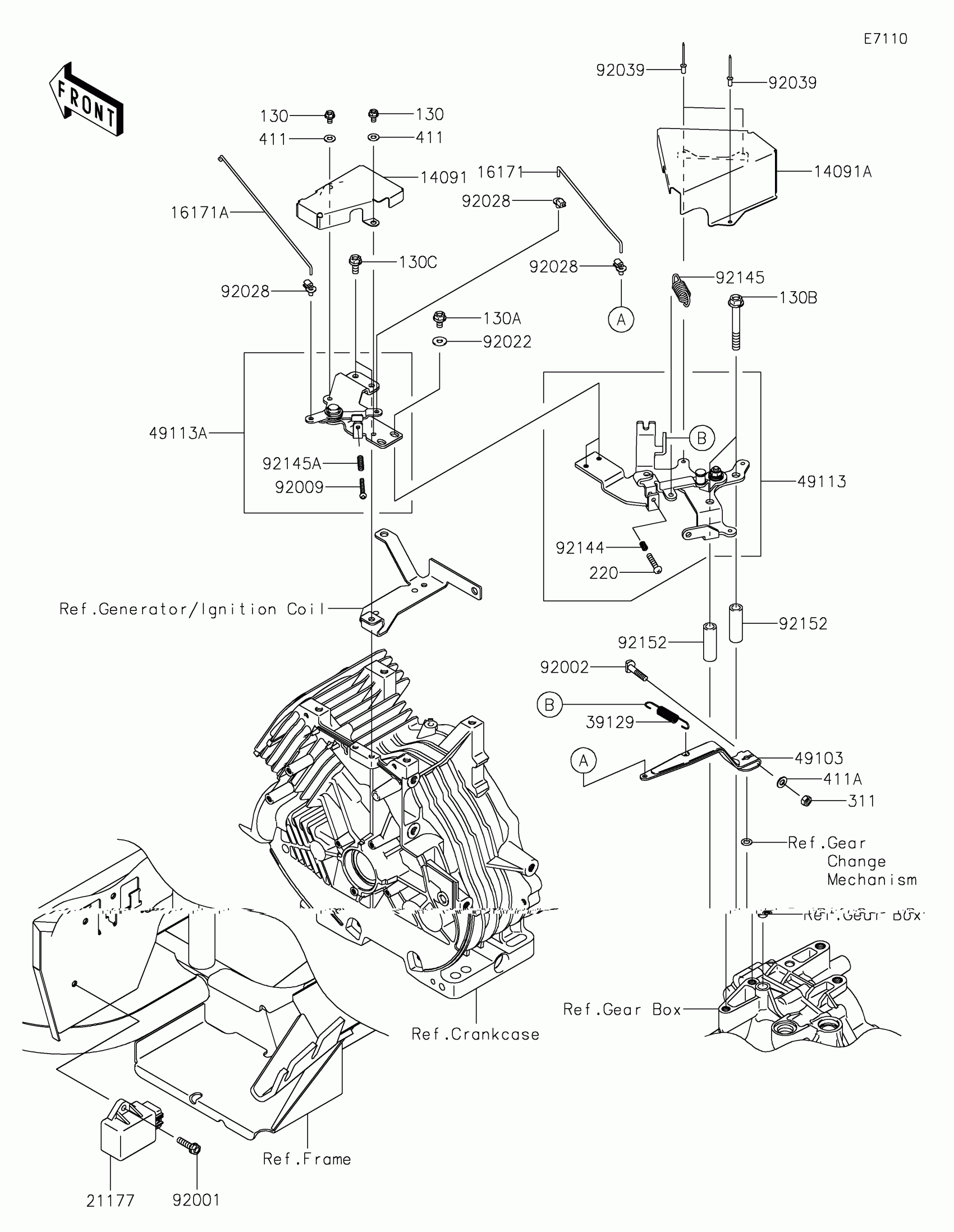

Kawasaki MULE SX™ 4x4 XC CAMO FI Control Diagram

Description

Price

14091

COVER,FR

14091-0401

$14.00

14091A

COVER,RR

14091-0402

$14.00

16171

LINK

16171-0007

$4.92

16171A

LINK,GOVERNOR

16171-0046

$12.66

21177

CONTROLLER

21177-0003

$141.72

39129

SPRING-GOVERNOR

39129-0006

$5.92

49103

ARM-GOVERNOR

49103-1055

$13.24

49113

PANEL-COMP-CONTROL

49113-0006

$88.97

49113A

PANEL-COMP-CONTROL

49113-0046

$26.86

92001

BOLT,FLANGED,6X22

92001-1352

$3.29

92002

BOLT,6X28

92002-2269

$1.05

92009

SCREW,4X30

92009-7002

$0.66

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92028

BUSHING,GOVERNOR

92028-2156

$1.66

92039

RIVET,BLIND,4.0X9.2

92039-1163

$2.47

92144

SPRING

92144-2266

$3.52

92145

SPRING,RETURN

92145-0301

$4.24

92145A

SPRING

92145-7005

$0.90

92152

COLLAR,9.1X13.95X42

92152-7501

$5.84

130

BOLT-FLANGED,5X8

130BA0508

$1.53

130A

BOLT-FLANGED,6X10

130BA0610

$0.97

130B

BOLT-FLANGED,8X60

130BA0860

$1.24

130C

BOLT-FLANGED,6X14

130BB0614

$1.77

220

SCREW-PAN-CROS,5X22

220AA0522

$0.67

311

NUT-HEX,6MM

311AA0600

$0.81

411

WASHER-PLAIN,5MM

411AA0500

$0.51

411A

WASHER-PLAIN,6MM

411AA0600

$2.06
