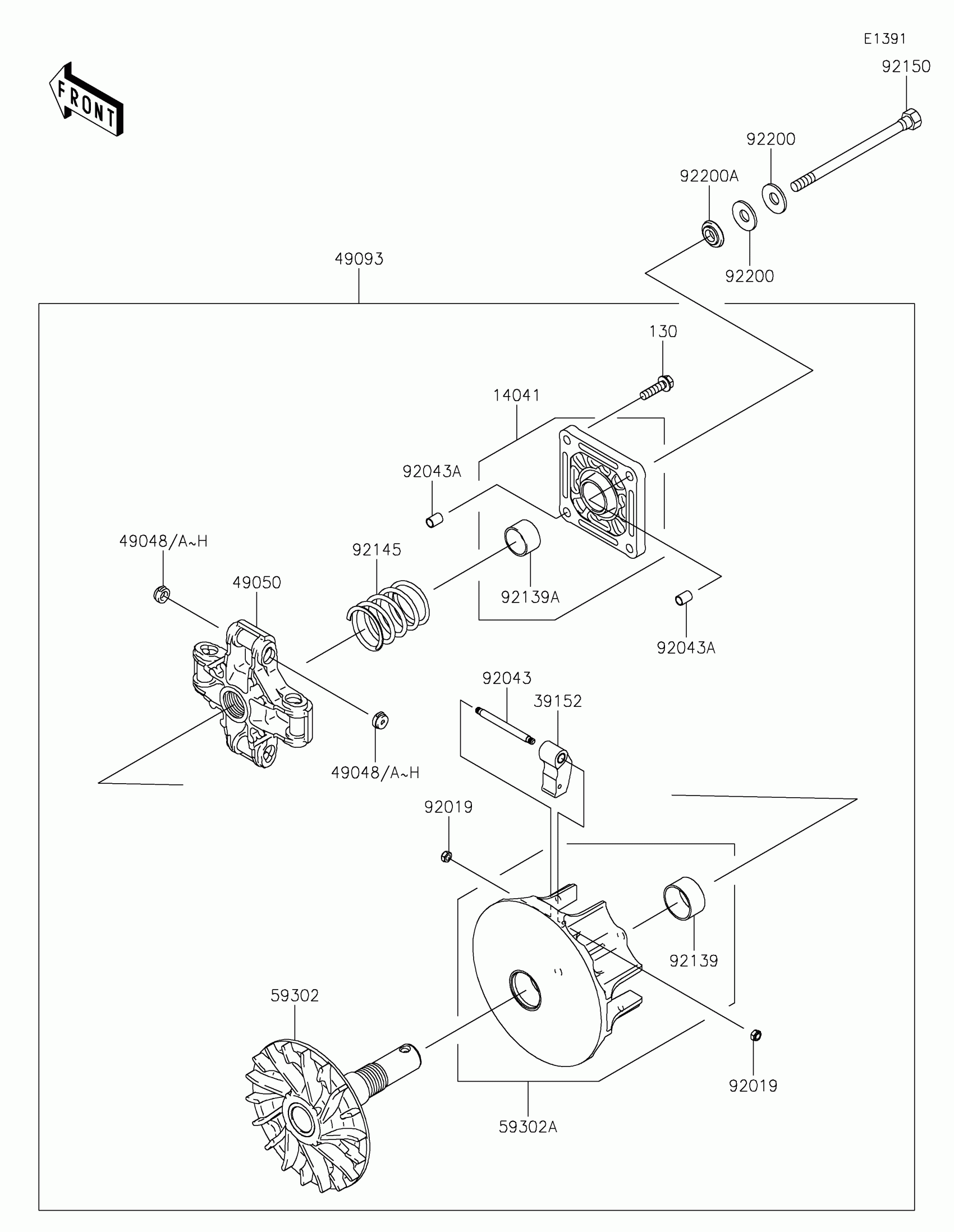

Kawasaki MULE SX™ 4x4 XC CAMO Drive Converter Diagram

Description

Price

14041

COVER-COMP

14041-0022

$91.68

39152

WEIGHT-RAMP

39152-0031

$54.39

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0012

$172.37

49093

CONVERTER-ASSY-DRIVE

49093-0031

$657.10

59302

SHEAVE-COMP,FIXED

59302-0025

Unavailable

59302A

SHEAVE-COMP

59302-0084

$208.45

92019

NUT,LOCK,6MM

92019-008

$3.36

92043

92043-0809

$12.66

92043A

PIN,8.2X10X14

92043-1264

$0.53

92139

BUSHING

92139-0049

$11.98

92139A

BUSHING

92139-0050

$11.98

92145

SPRING

92145-0742

$38.55

92150

BOLT,12X163.5

92150-1008

$24.41

92200

WASHER

92200-0249

$4.34

92200A

WASHER

92200-1634

$7.20

130

BOLT-FLANGED,8X30

130CA0830

$1.00
