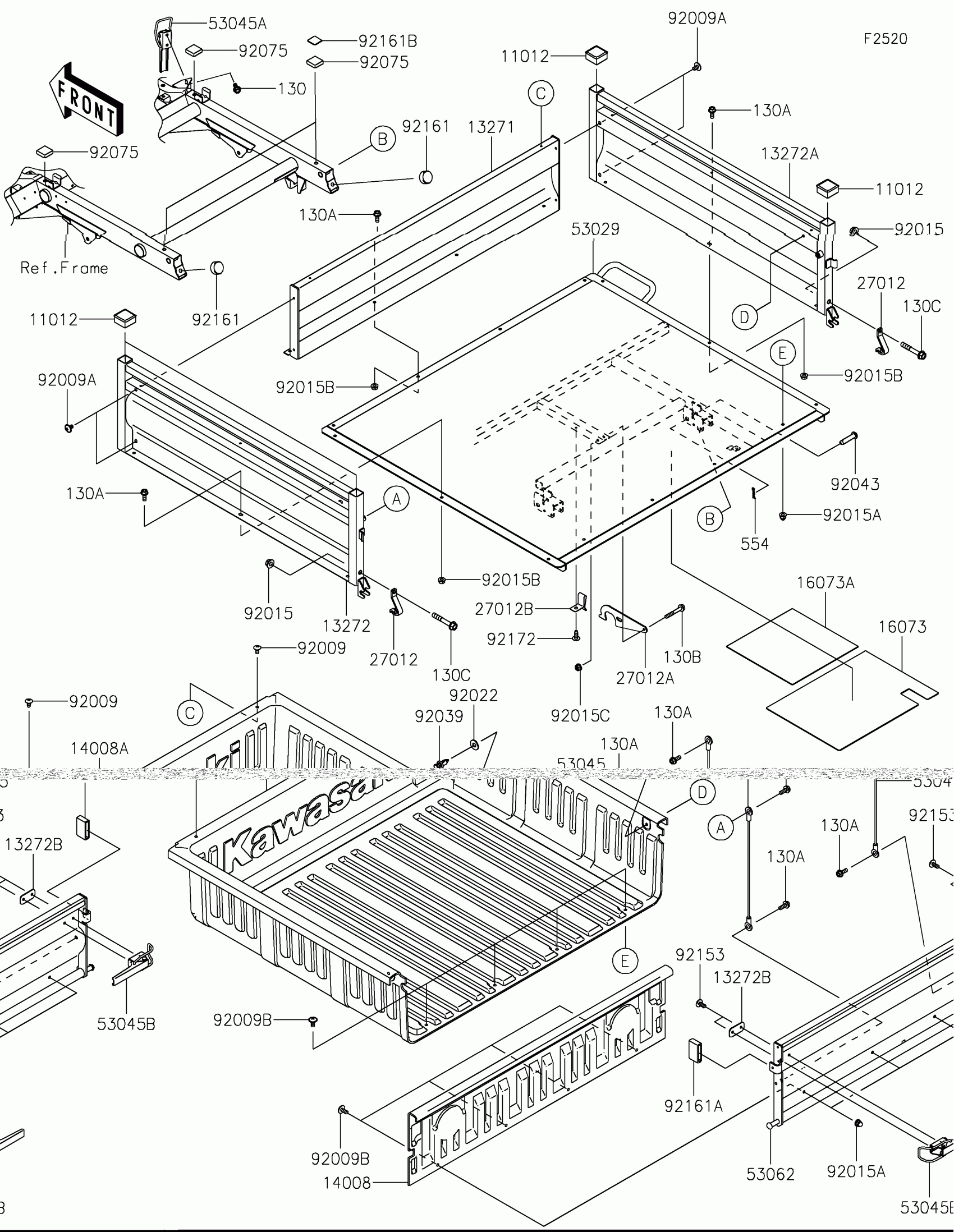

Kawasaki MULE SX™ 4x4 XC CAMO Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

13271

PLATE,CARRIER,SIDE,FR,BLACK

13271-0385-10

$185.73

13272

PLATE,SIDE CARRIER,LH,CAMO

13272-2098-42J

$401.52

13272A

PLATE,SIDE CARRIER,RH,CAMO

13272-2099-42J

$401.52

13272B

PLATE

13272-7516

$7.25

14008

LINER,TAILGATE

14008-0019

$36.80

14008A

LINER,CARRIER BASE

14008-0020

$216.73

16073

INSULATOR,295X400

16073-0849

$51.48

16073A

INSULATOR,265X265

16073-0850

$46.12

27012

HOOK,TAIL GATE

27012-0022

$4.81

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,BASE,BLACK

53029-0347-10

$1,278.78

53045

HOOK-ASSY,CABLE

53045-0030

$24.61

53045A

HOOK-ASSY

53045-0032

$21.71

53045B

HOOK-ASSY

53045-0033

$21.71

53062

GATE-TAIL,CAMOUFLAGE

53062-0025-42J

$513.09

92009

SCREW,6X12

92009-1480

$2.23

92009A

SCREW,6X10

92009-1661

$3.29

92009B

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,LOCK 6MM

92015-1262

$4.85

92015B

NUT,FLANGED,6MM

92015-1367

$2.53

92015C

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92039

RIVET

92039-0776

$0.80

92043

PIN,12X54

92043-1451

$9.42

92075

DAMPER

92075-1882

$6.18

92153

BOLT,SOCKET,6X14

92153-1021

$1.89

92161

DAMPER

92161-1065

$2.84

92161A

DAMPER

92161-7519

$2.68

92161B

DAMPER

92161-7520

Unavailable

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X40

130BA0640

$0.97

130C

BOLT-FLANGED,8X50

130BA0850

$1.63

554

PIN-SNAP,12MM

554DA1200

$2.63
