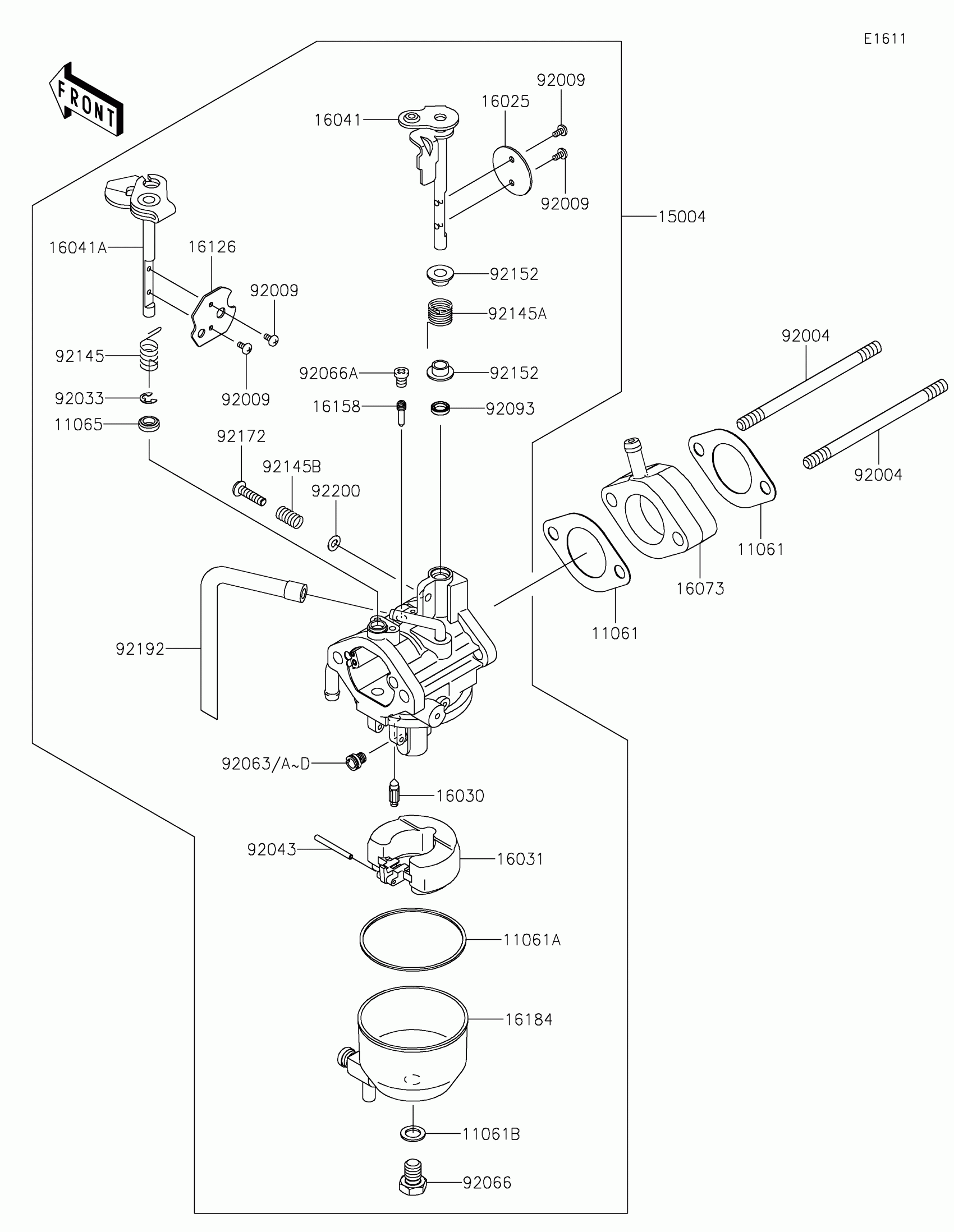

Kawasaki MULE SX™ 4x4 XC CAMO Carburetor Diagram

#

Description
Price

11061

GASKET,HEAD-CARB

11061-7027

$0.87

11061A

GASKET,FLOAT CHAMBER

11061-7044

$6.60

11061B

GASKET,CHAMBER

11061-7045

$1.44

11065

CAP

11065-7012

$1.44

15004

CARBURETOR-ASSY

15004-0953

$189.86

16025

VALVE-THROTTLE

16025-7008

$8.42

16030

VALVE-FLOAT

16030-7004

$18.66

16031

FLOAT

16031-7004

$27.47

16041

SHAFT-CARBURETOR

16041-2261

Unavailable

16041A

SHAFT-CARBURETOR

16041-2262

$33.36

16073

INSULATOR

16073-0827

$6.68

16126

VALVE

16126-2242

$7.63

16158

JET-SLOW,#54

16158-2051

$30.06

16184

CHAMBER-ASSY-FLOAT

16184-7018

$39.04

92004

STUD,6X95

92004-7027

$2.22

92009

SCREW

92009-2049

$0.83

92033

RING-SNAP

92033-7007

$1.56

92043

PIN,FLOAT

92043-7016

$1.90

92063

JET-MAIN,#99

92063-2458

$22.12

92063A

JET-MAIN,#105

92063-7013

$18.46

92063B

JET-MAIN,#102

92063-7014

$18.46

92063C

JET-MAIN,#109

92063-7044

$24.81

92063D

JET-MAIN,#112

92063-7045

$24.44

92066

PLUG

92066-7020

$11.66

92066A

PLUG

92066-7021

$4.08

92093

SEAL,D=5.9

92093-7001

$1.85

92145

SPRING

92145-2151

$2.37

92145A

SPRING

92145-2152

$2.37

92145B

SPRING

92145-7039

$2.02

92152

COLLAR

92152-7008

$4.54

92172

SCREW

92172-7007

$1.20

92192

TUBE

92192-2085

Unavailable

92200

WASHER

92200-7025

$1.61
