2019 Kawasaki Mule SX™ 4x4 SE Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2019 Kawasaki Mule SX™ 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

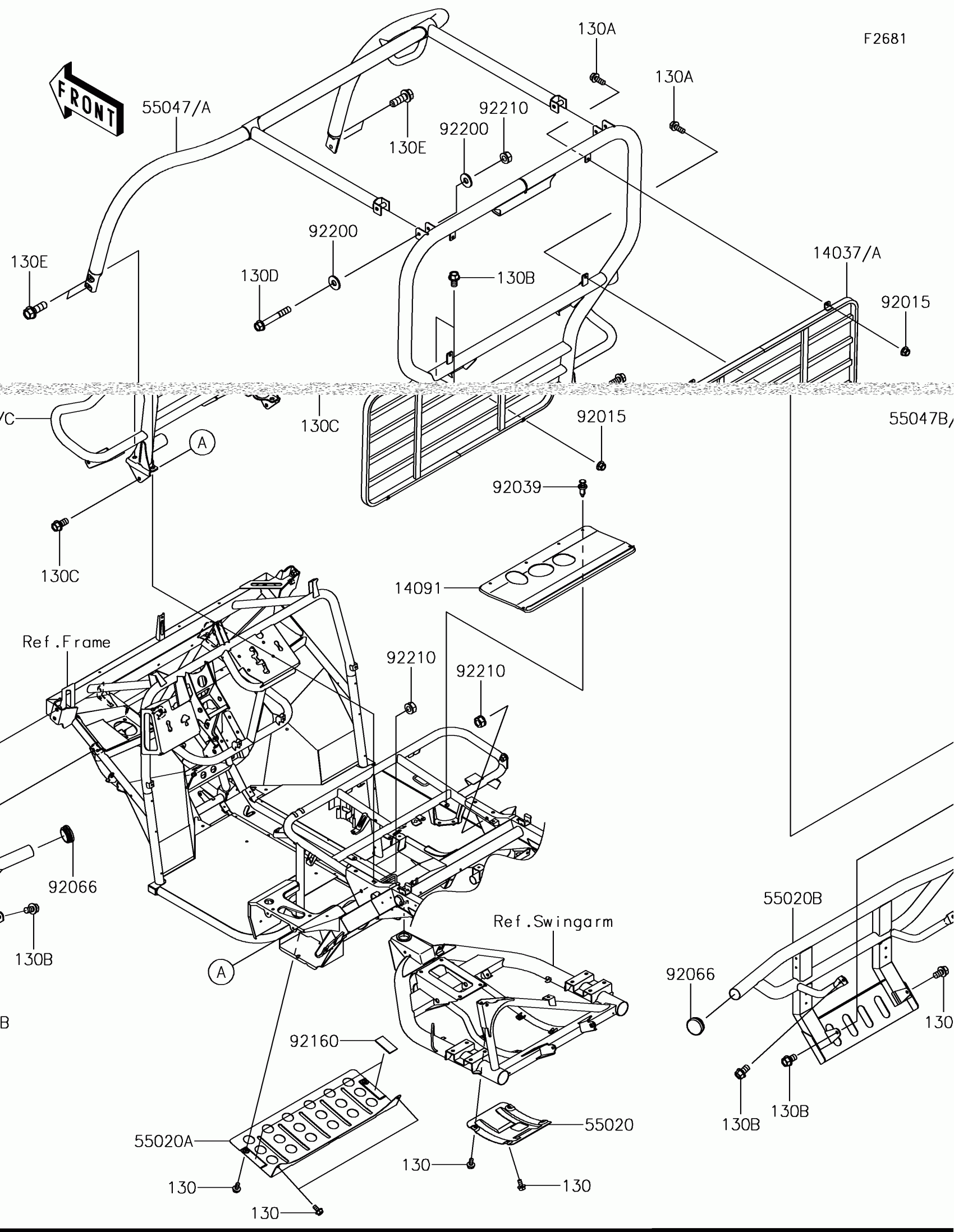

2019 Kawasaki Mule SX™ 4x4 SE Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037A

SCREEN,T.BLACK

14037-0774-388

1

$161.32

In stock

14091

COVER

14091-0355

1
Out of stock

55020

GUARD,DIFF

55020-0141

1

$40.89

In stock

55020A

GUARD

55020-0883

1

$72.41

In stock

55020B

GUARD,FR,T.BLACK

55020-1933-388

1
Out of stock

55047A

BAR-COMP,FR,T.BLACK

55047-0355-388

1
Out of stock

55047C

BAR-COMP,RR,T.BLACK

55047-0356-388

1
Out of stock

92015

NUT,FLANGED,LOCK,8MM

92015-1668

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92066

PLUG,42MM

92066-0830

1
Out of stock

92160

DAMPER

92160-1102

1
Out of stock

92200

WASHER,11X26X2.6

92200-0352

1
Out of stock

92210

NUT,LOCK,10MM

92210-1204

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

130B

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

130C

BOLT-FLANGED,10X20

130BA1020

1

$2.68

In stock

130D

BOLT-FLANGED,10X70

130BA1070

1

$2.25

In stock

130E

BOLT-FLANGED,12X35

130BA1235

1

$3.19

In stock
