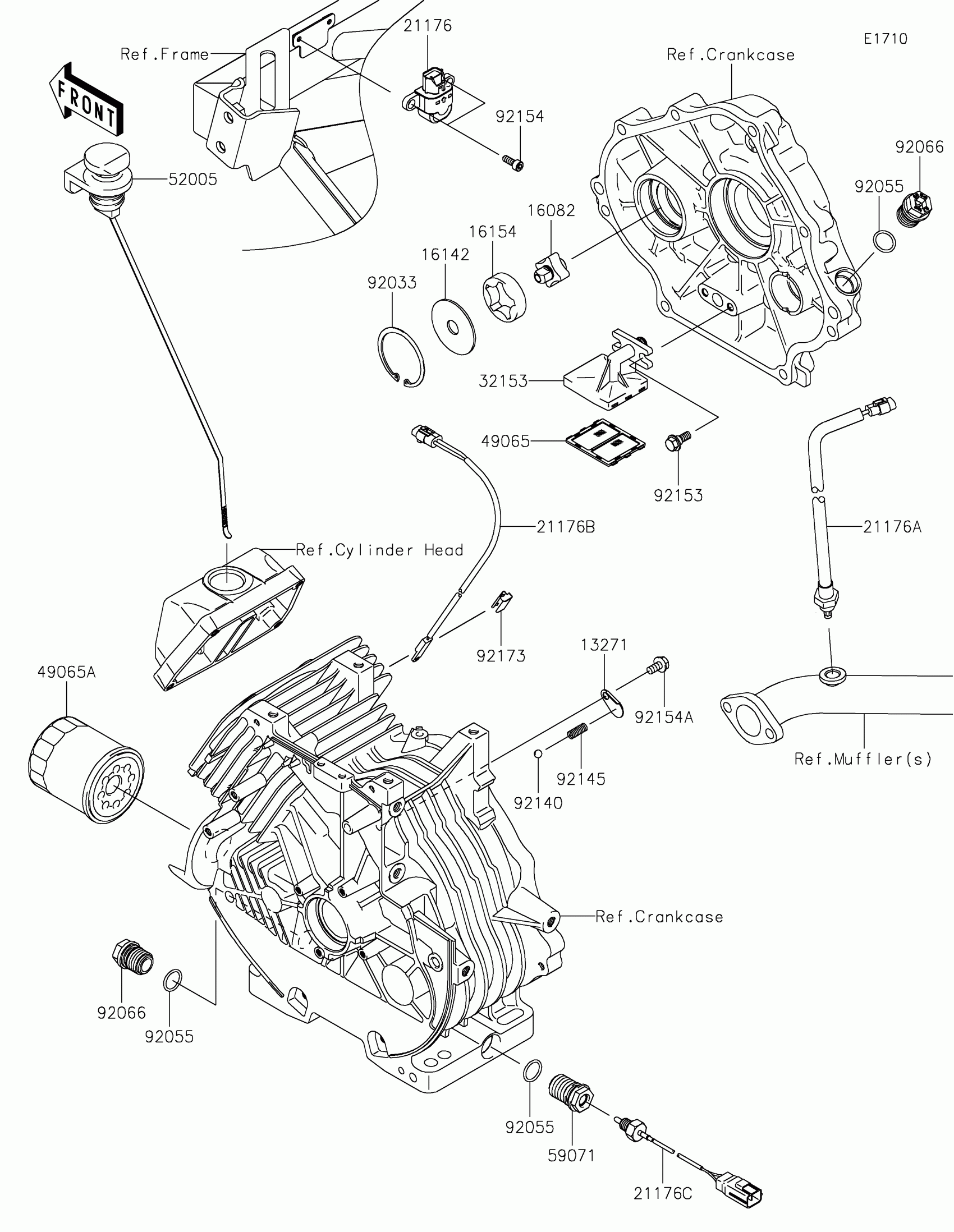

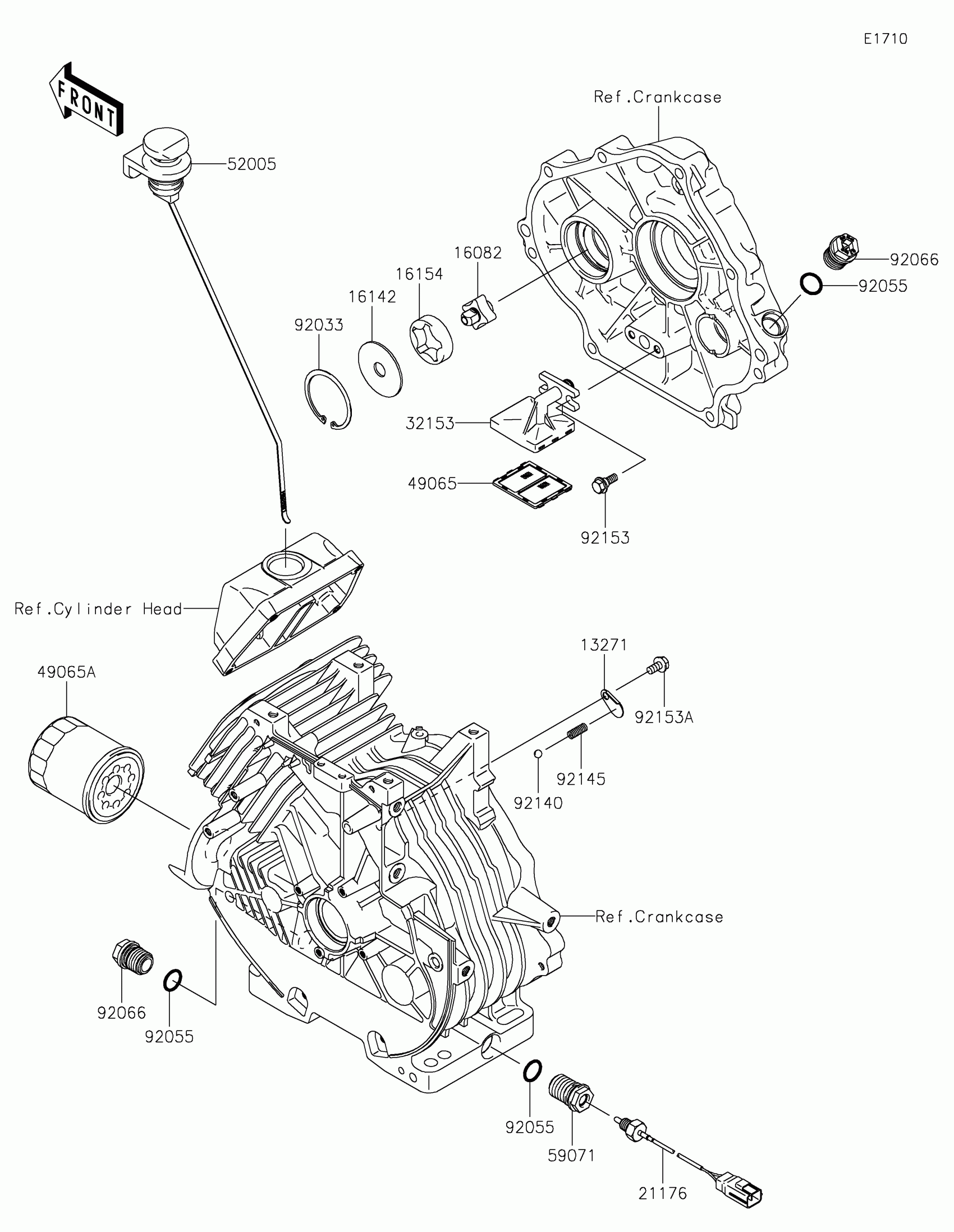

Kawasaki MULE SX™ 4x4 Oil Pump/Oil Filter Diagram

Description

Price

13271

PLATE,OIL RELIEF

13271-7026

$0.78

16082

PUMP-ASSY-OIL

16082-0760

$12.79

16142

COVER-PUMP

16142-7001

$2.92

16154

ROTOR-PUMP,OUT

16154-2054

$6.57

21176

SENSOR,OIL TEMP

21176-2108

$104.78

32153

PIPE

32153-7002

$3.40

49065

FILTER-OIL

49065-7005

$2.92

49065A

FILTER-OIL

49065-7010

$10.72

52005

GAUGE,OIL LEVEL

52005-7020

$25.05

59071

JOINT,SENSOR

59071-0745

$4.08

92033

RING-SNAP

92033-7008

$2.19

92055

RING-O,15.8X2.4

92055-0892

$0.46

92066

PLUG

92066-0774

$3.82

92140

BALL

92140-7001

$0.90

92145

SPRING,OIL RELIEF

92145-7035

$1.05

92153

BOLT,FLANGED,6X16

92153-7007

$2.92

92153A

BOLT,6X12

92153-7043

$0.63
