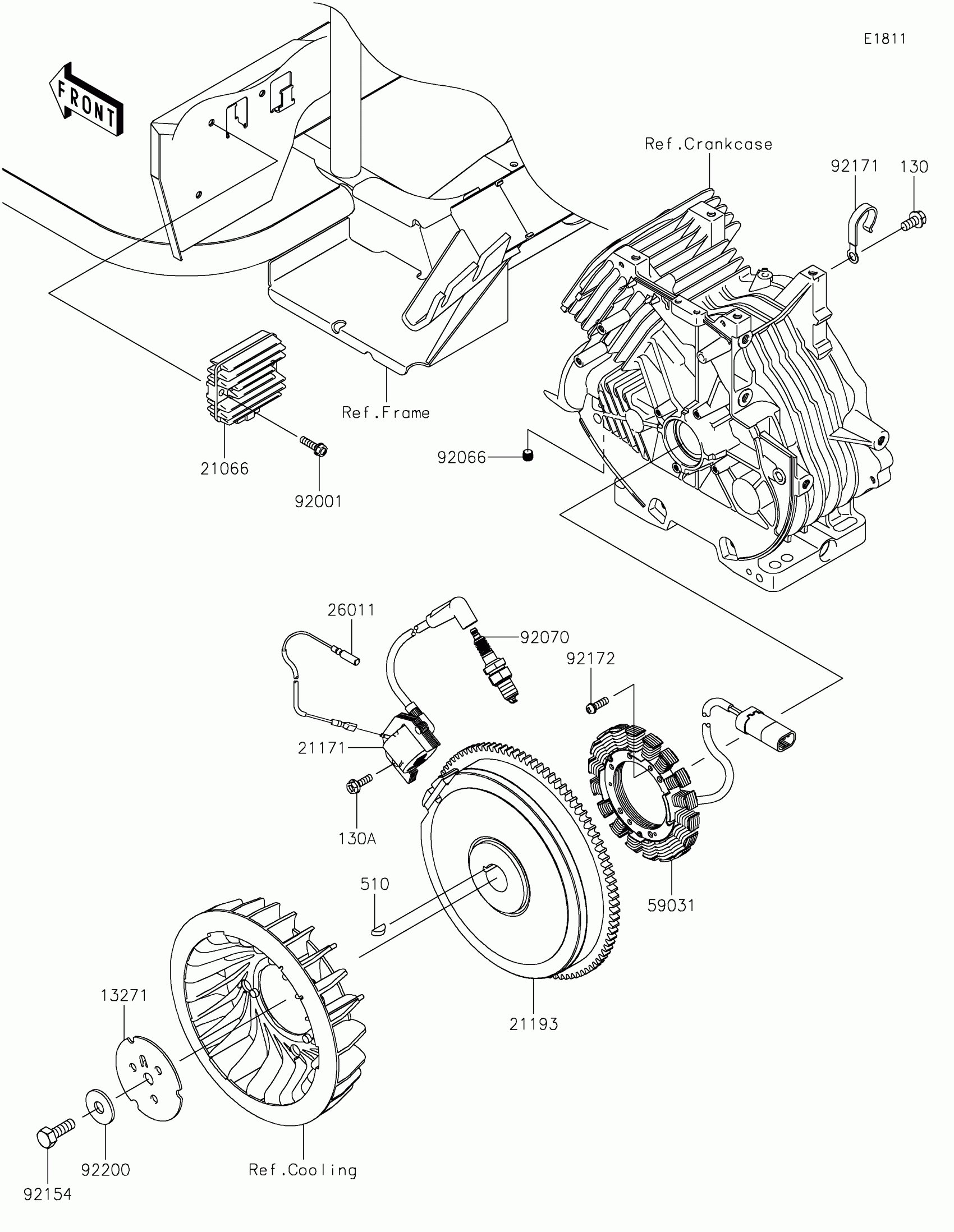

Kawasaki MULE SX™ 4x4 Generator/Ignition Coil Diagram

Description

Price

13271

PLATE,FAN

13271-7029

$2.44

21066

REGULATOR-VOLTAGE

21066-0039

$153.30

21171

COIL-ASSY-IGNITION

21171-7035

$46.67

21193

FLYWHEEL-ASSY

21193-0025

$143.47

26011

WIRE-LEAD

26011-7014

$2.47

59031

COIL-CHARGING

59031-2132

$67.39

92001

BOLT,FLANGED,6X22

92001-1352

$3.43

92066

PLUG

92066-0762

$3.44

92070

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

$4.44

92154

BOLT,12X30

92154-7003

$3.85

92171

CLAMP

92171-7005

$5.85

92172

SCREW,5X20

92172-7018

$0.46

92200

WASHER

92200-7002

$1.92

130

BOLT-FLANGED,8X16

130AA0816

$0.83

130A

BOLT-FLANGED,6X20

130BA0620

$1.49

510

WOODRUFF KEY

510A5100

$2.17
