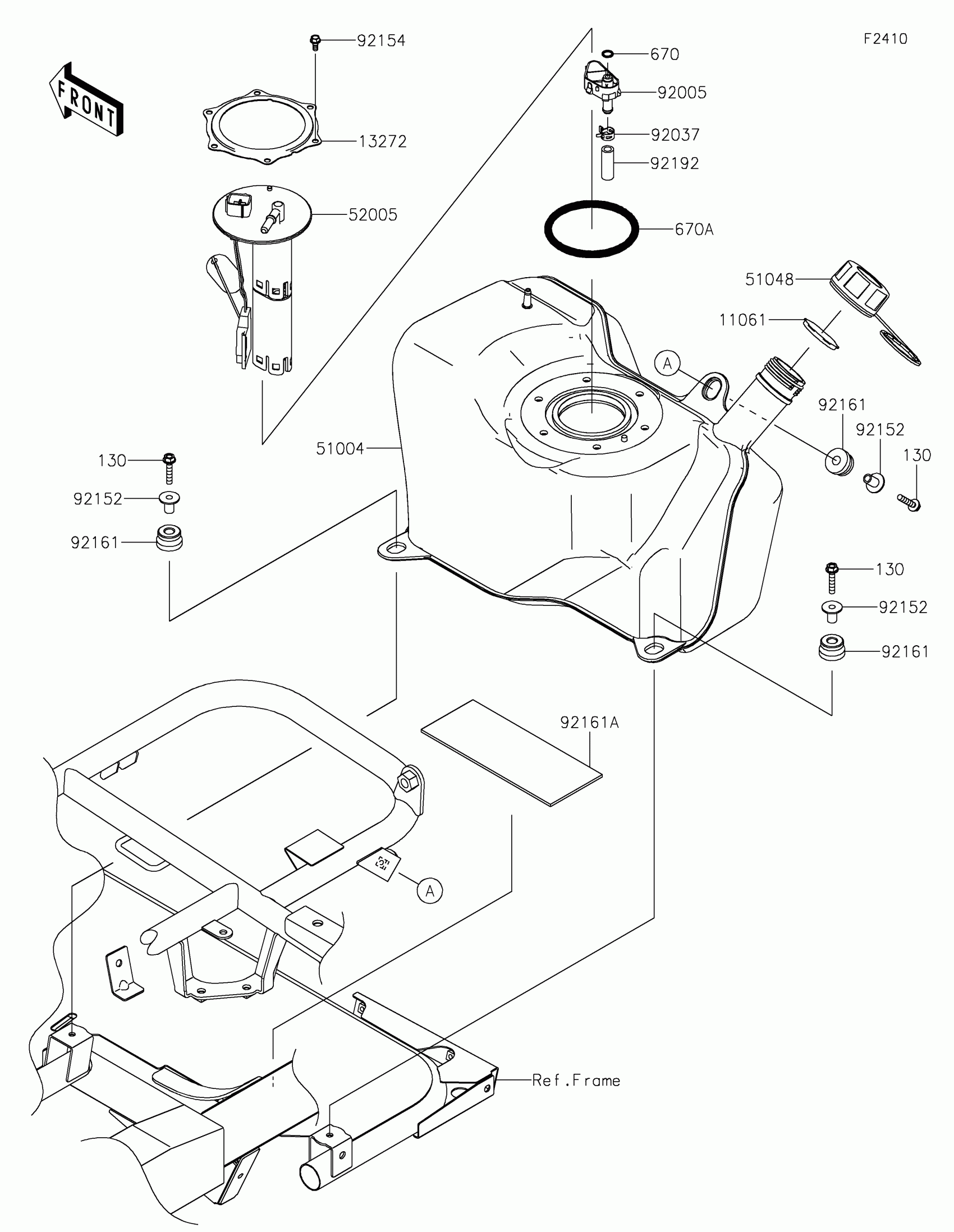

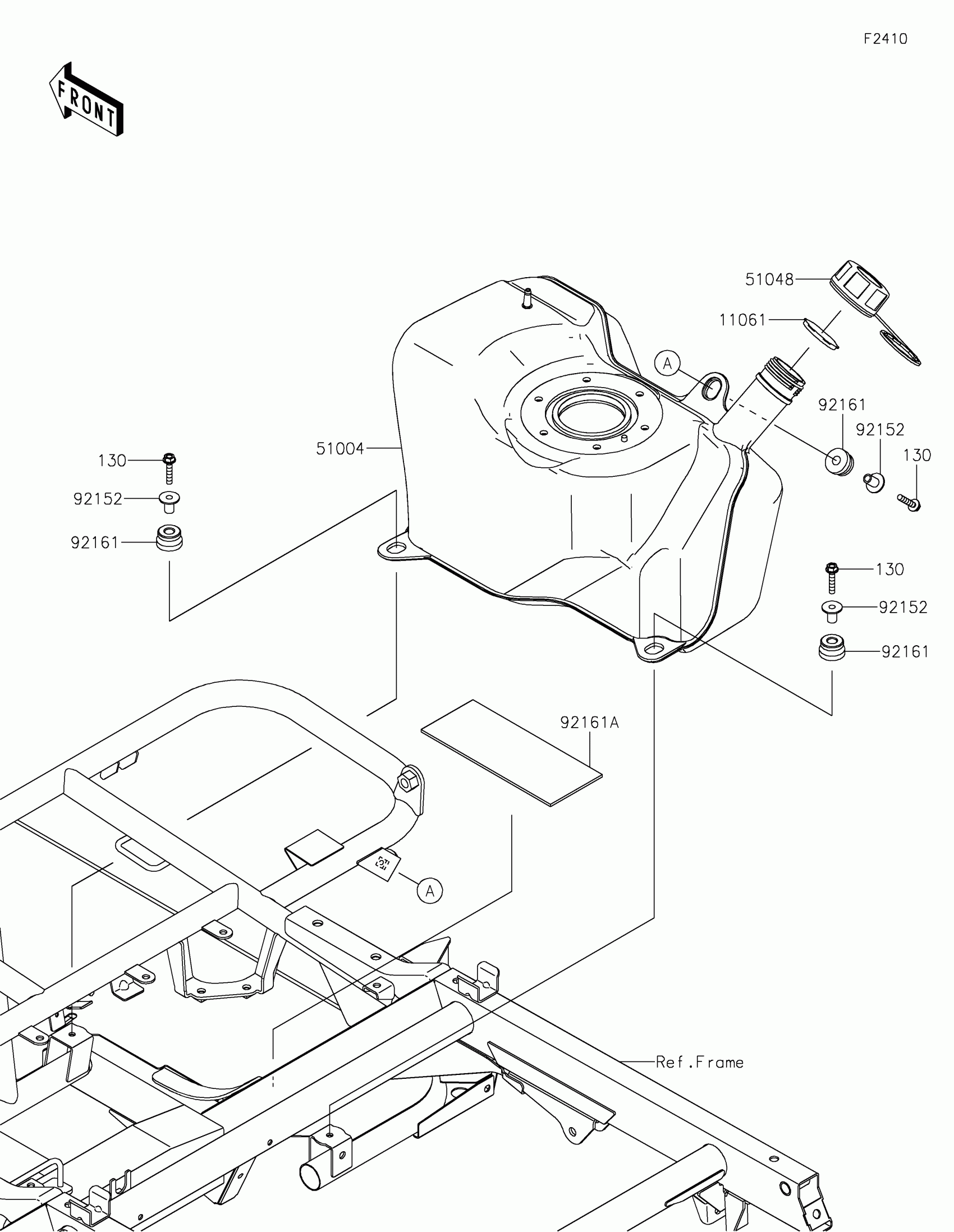

Kawasaki MULE SX™ 4x4 Fuel Tank Diagram

Description

Price

11061

GASKET,FUEL TANK CAP

11061-0395

$4.42

13272

PLATE

13272-1398

$5.20

51004

TANK-FUEL

51004-0010

$143.19

51048

CAP-ASSY-TANK,FUEL

51048-0026

$9.66

52005

GAUGE,FUEL

52005-0757

$214.95

92005

FITTING

92005-0813

$2.61

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92152

COLLAR,6.8X10X18.1

92152-1867

$4.61

92154

BOLT,FUEL PUMP

92154-1326

$0.81

92161

DAMPER,10X28X17

92161-1614

$1.42

92161A

DAMPER,80X200X3.175

92161-1645

$14.44

92192

TUBE,8X13X37

92192-1622

$1.31

130

BOLT-FLANGED,6X30

130BA0630

$1.13

670

O RING,9MM

670E1509

$2.83

670A

O RING

670E5090

$27.18
