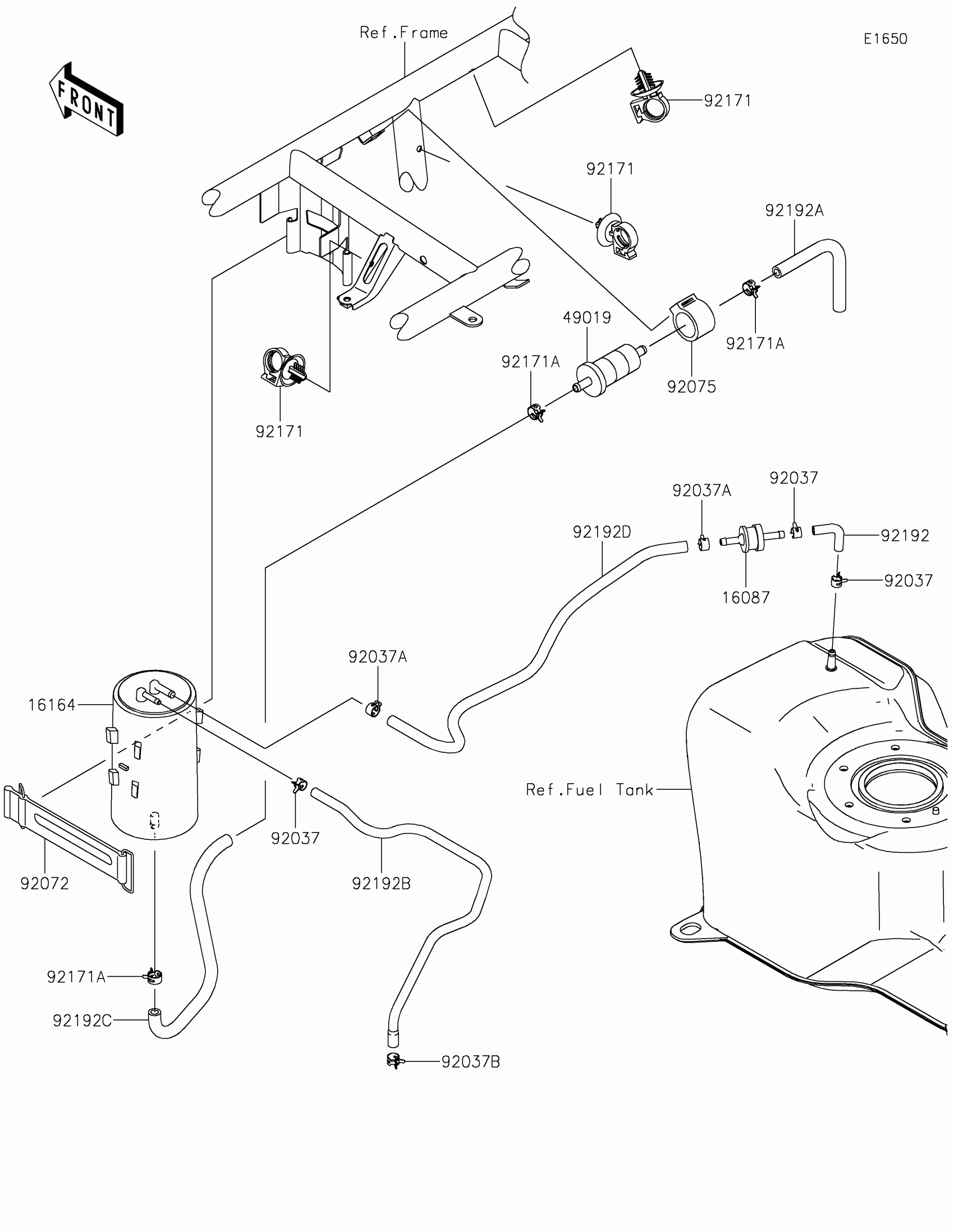

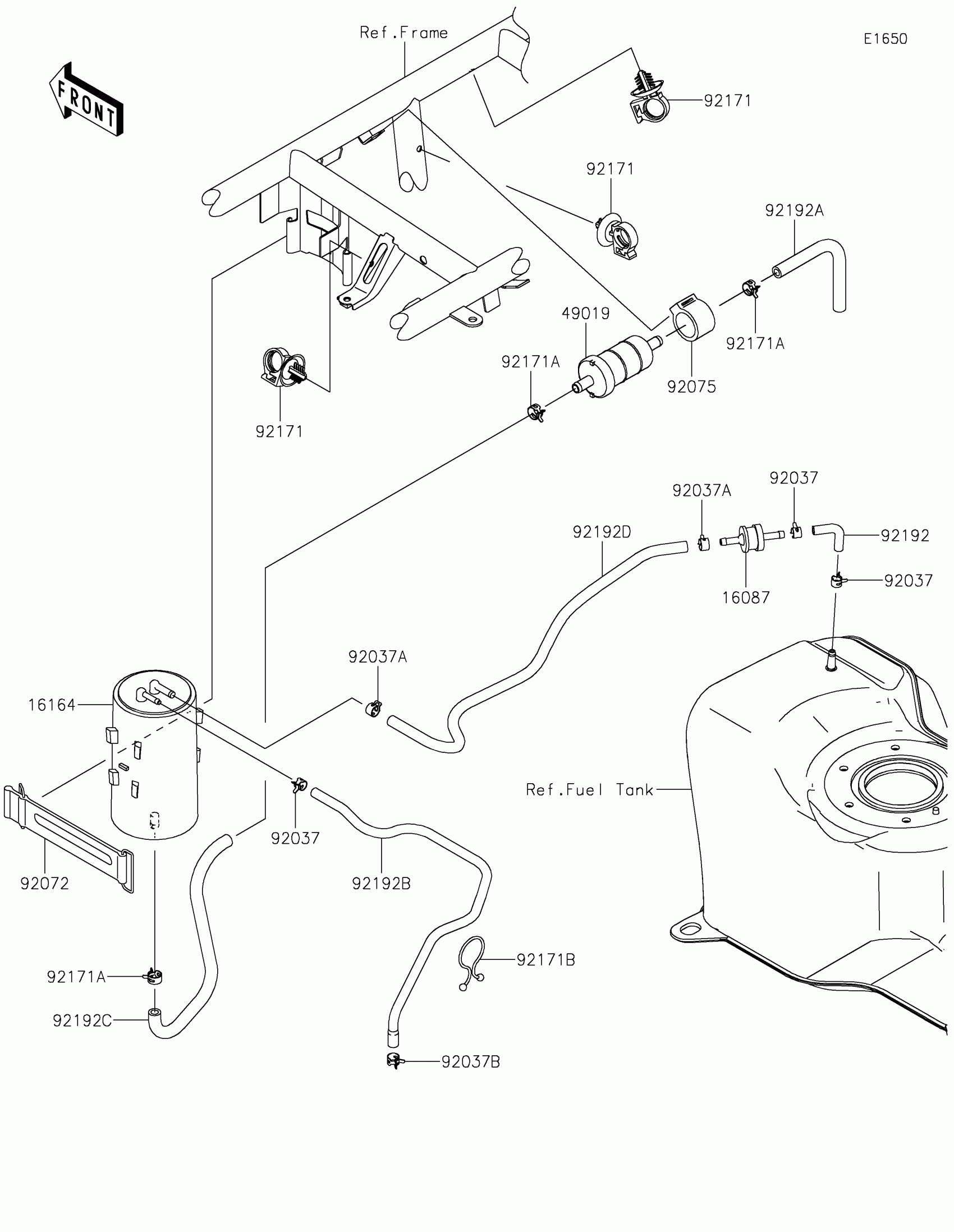

Kawasaki MULE SX™ 4x4 Fuel Evaporative System Diagram

Description

Price

16087

VALVE-CHECK

16087-0008

$34.38

16164

CANISTER

16164-0013

$197.62

49019

FILTER-FUEL

49019-1055

$21.00

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP,TUBE

92037-1505

$3.78

92037B

CLAMP

92037-2113

$0.97

92072

BAND,L=168

92072-1306

$10.88

92075

DAMPER,FUEL FILTER

92075-1853

$9.78

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP

92171-0515

$5.56

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.08

92192A

TUBE,FILTER-AIR

92192-0609

$5.32

92192B

TUBE,CANISTER-DUCT

92192-1027

$10.36

92192C

TUBE,CANISTER-FILTER

92192-1639

$4.88

92192D

TUBE,VALVE-CANISTER

92192-1641

$9.37
