2020 Kawasaki Mule SX™ 4x4 FI Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2020 Kawasaki Mule SX™ 4x4 FI, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

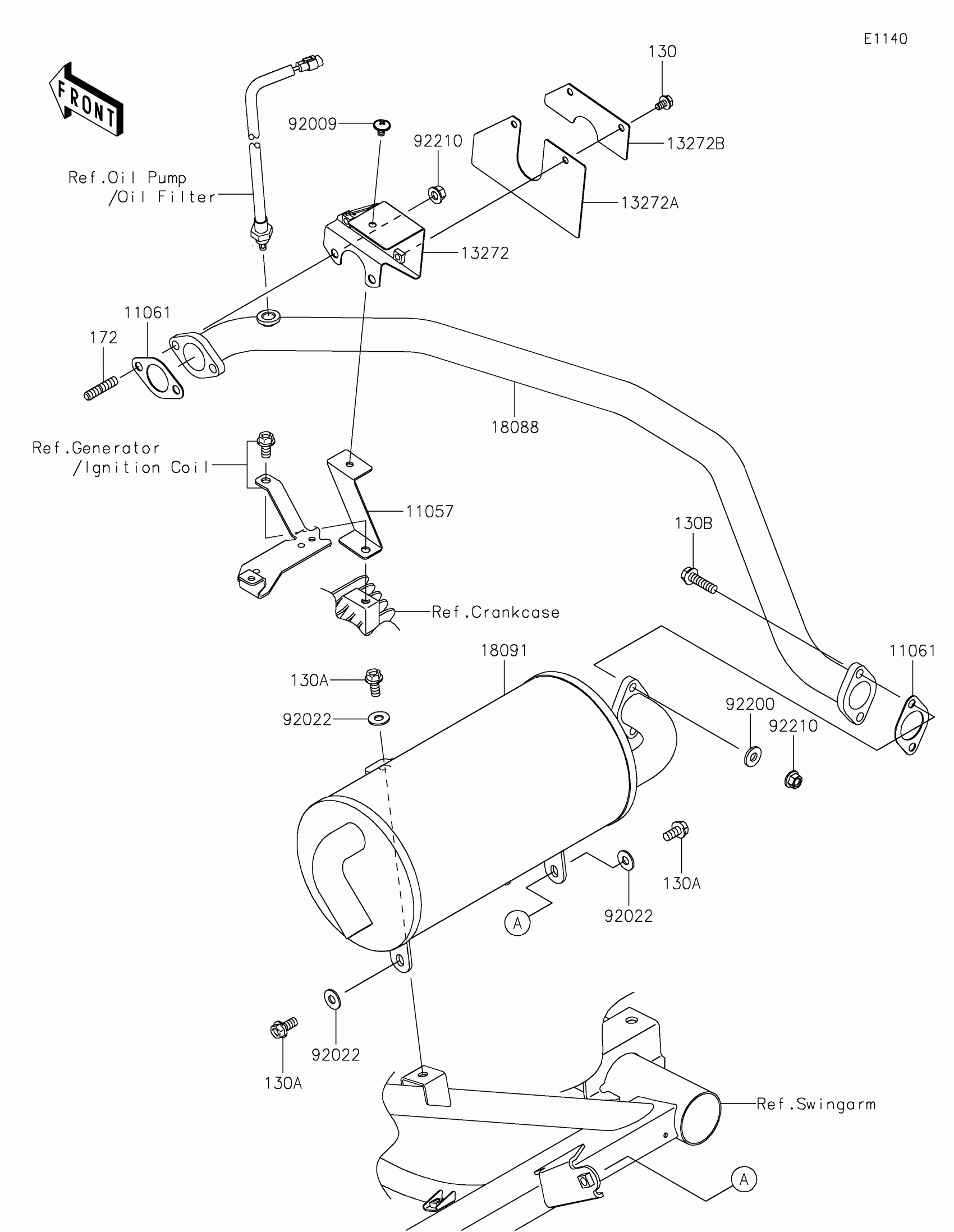

2020 Kawasaki Mule SX™ 4x4 FI Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1829

1
Out of stock

11061

GASKET

11061-0132

1
Out of stock

13272

PLATE

13272-2621

1
Out of stock

13272A

PLATE

13272-2622

1
Out of stock

13272B

PLATE

13272-2623

1
Out of stock

18088

PIPE-EXHAUST

18088-1402

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0487

1
Out of stock

92009

SCREW,6X10

92009-1661

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92200

WASHER,8.5X18X2.3

92200-1213

1
Out of stock

92210

NUT,8MM

92210-1456

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

130B

BOLT-FLANGED,8X30

130CD0830

1

$2.10

In stock

172

BOLT-STUD,8X22

172BA0822

1
Out of stock
