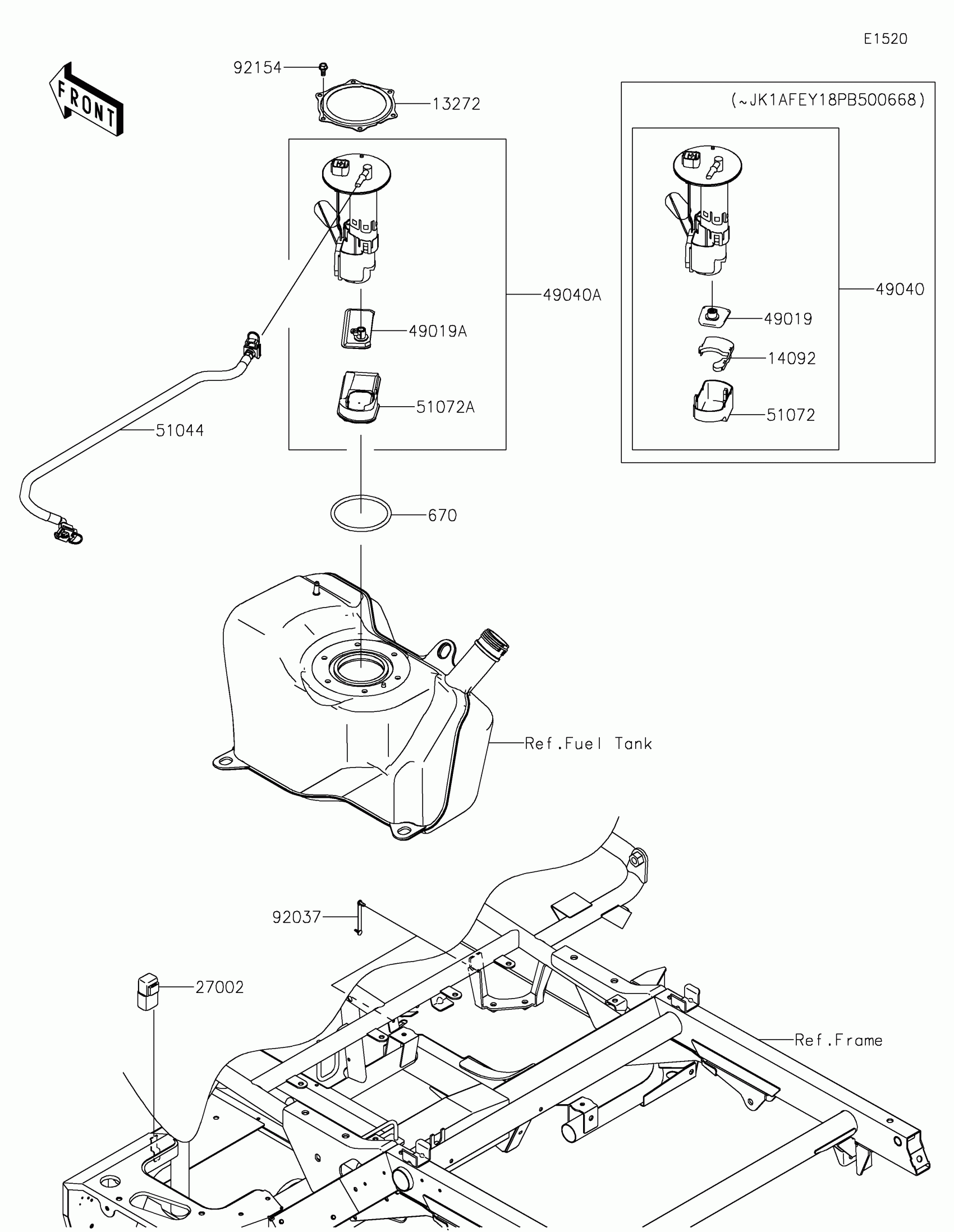

Kawasaki MULE SX™ 4x4 FE Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2501

$5.20

14092

COVER

14092-1044

$31.19

27002

RELAY-ASSY

27002-1088

$37.25

49019

FILTER-FUEL

49019-0013

$13.34

49019A

FILTER-FUEL

49019-0034

$25.74

49040

PUMP-FUEL

49040-0718

$807.97

49040A

PUMP-FUEL

49040-0830

$840.67

51044

TUBE-ASSY

51044-0928

$117.75

51072

CHAMBER-FUEL

51072-0003

$46.89

51072A

CHAMBER-FUEL

51072-0008

$5.96

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92154

BOLT,FUEL PUMP

92154-1326

$0.81

670

O RING

670E5090

$27.18
