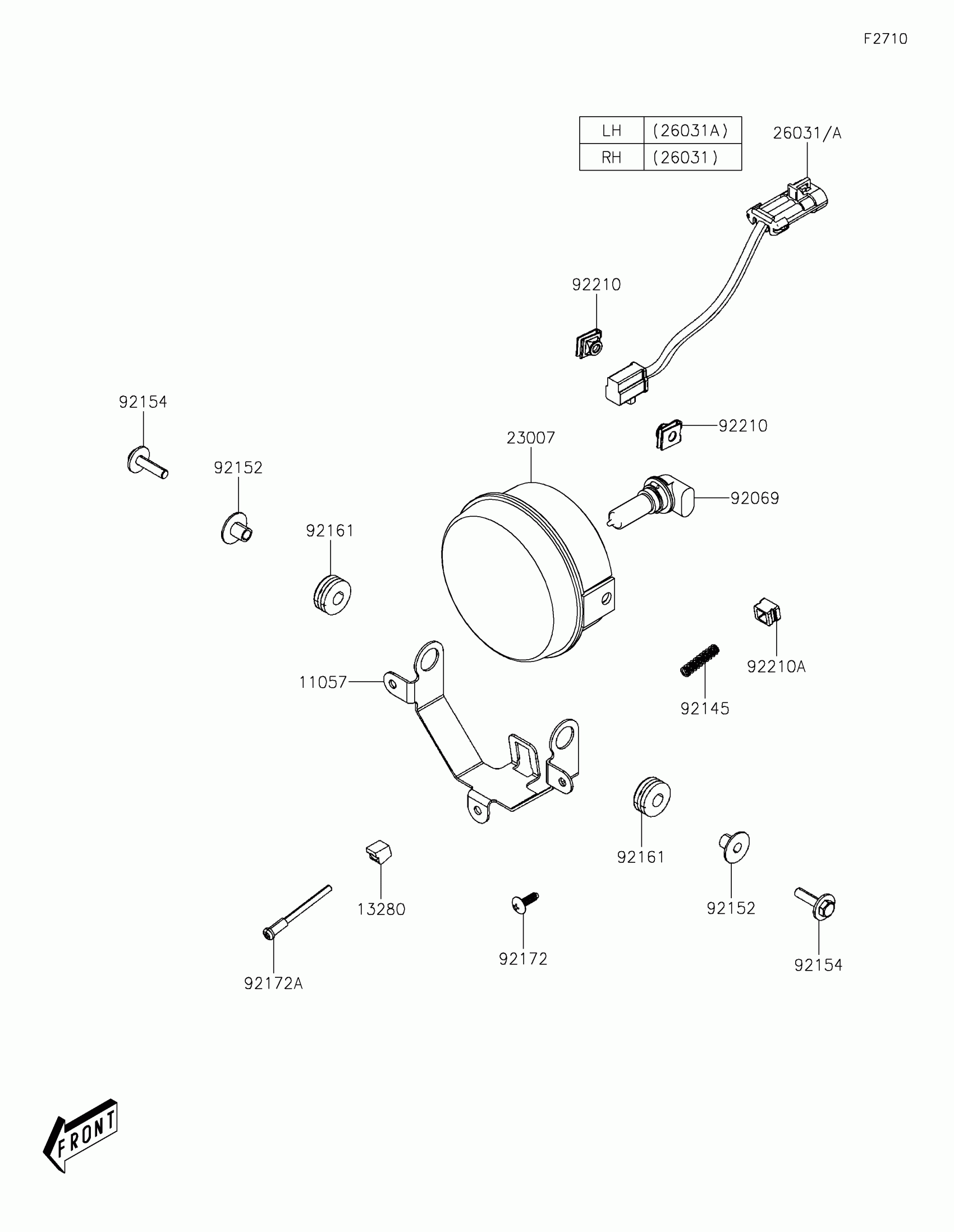

Kawasaki MULE PRO-MX™ Headlight(s) Diagram

Description

Price

11057

BRACKET,HEAD LIGHT

11057-Y004

$16.27

13280

HOLDER,ADJUSTER LIGHT

13280-Y019

$0.95

23007

LENS-COMP,HEAD LAMP

23007-0096

$44.76

26031

HARNESS,SUB,HEAD LIGHT,RH

26031-Y018

$59.58

26031A

HARNESS,SUB,HEAD LIGHT,LH

26031-Y019

$61.87

92069

BULB,12V 35/35W

92069-0019

$11.94

92145

SPRING,ADJUSTER LIGHT

92145-Y062

$1.53

92152

COLLAR,HEAD LIGHT

92152-Y064

$1.97

92154

BOLT,6X25

92154-Y099

$3.73

92161

DAMPER

92161-Y043

$2.37

92172

SCREW,TAPPING,5X16

92172-Y020

$1.23

92172A

SCREW,PAN,4X58

92172-Y080

$1.25

92210

NUT,6MM

92210-Y089

$4.97

92210A

NUT,4MM

92210-Y095

$8.39
