Description

Price

12046

SPROCKET,OIL PUMP DRIVE

12046-Y006

$11.49

13194

CLUTCH-ONEWAY

13194-Y001

$222.09

13280

HOLDER,OIL PUMP SHAFT

13280-Y018

$18.51

13310

SHAFT-ASSY,REDUCTION

13310-Y002

$119.64

16085

GEAR,START REDUCTION

16085-Y017

$27.95

16085A

GEAR,STARTING CLUTCH

16085-Y018

$84.61

16165

SEPARATOR,OIL

16165-Y007

$2.78

21003

STATOR

21003-Y010

$244.65

21007

ROTOR

21007-Y010

$447.11

21163

STARTER-ELECTRIC

21163-Y006

$338.29

26011

WIRE-LEAD,STARTER MOTOR

26011-Y010

$56.88

26011A

WIRE-LEAD,EARTH

26011-Y013

$27.98

35063

STAY

35063-Y036

$21.00

49042

PUMP-OIL,ASSY

49042-Y006

$57.74

92033

RING-SNAP,10MM

92033-Y019

$1.14

92043

PIN,8X14

92043-Y012

$1.36

92043A

PIN,DOWEL,4X65

92043-Y015

$0.97

92055

RING-O,24.4X3.1

92055-Y025

$2.08

92057

CHAIN,OIL PUMP

92057-Y013

$31.33

92153

BOLT,FLANGE,6X22

92153-Y003

Unavailable

92153A

BOLT,5X10

92153-Y058

$0.80

92154

BOLT,FLANGE,6X12

92154-Y035

$1.32

92154A

BOLT,FLANGE,6X35

92154-Y069

$1.71

92154B

BOLT,HEX,5X12

92154-Y111

$2.03

92154C

BOLT,8X15

92154-Y123

$3.83

92154D

BOLT,FLANGE,6X32

92154-Y128

$1.84

92154E

BOLT,5X35

92154-Y185

$4.97

92154F

BOLT,FLANGE,6X40

92154-Y209

$5.98

92173

CLAMP

92173-Y004

$1.92

92200

WASHER,27.2X36X0.5

92200-Y097

$11.93

92210

NUT,6MM

92210-Y039

$0.93

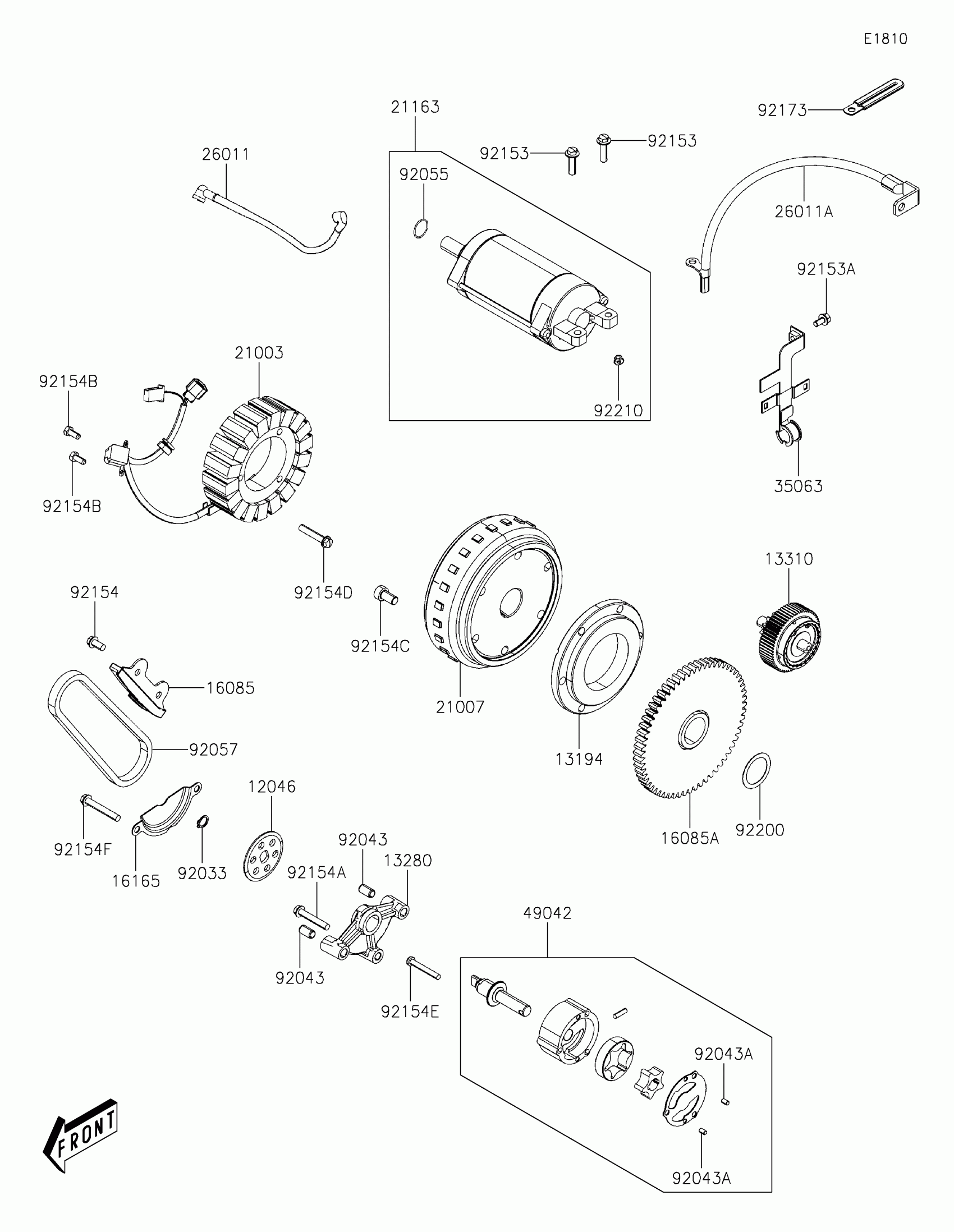

Kawasaki MULE PRO-MX™ Generator Diagram
