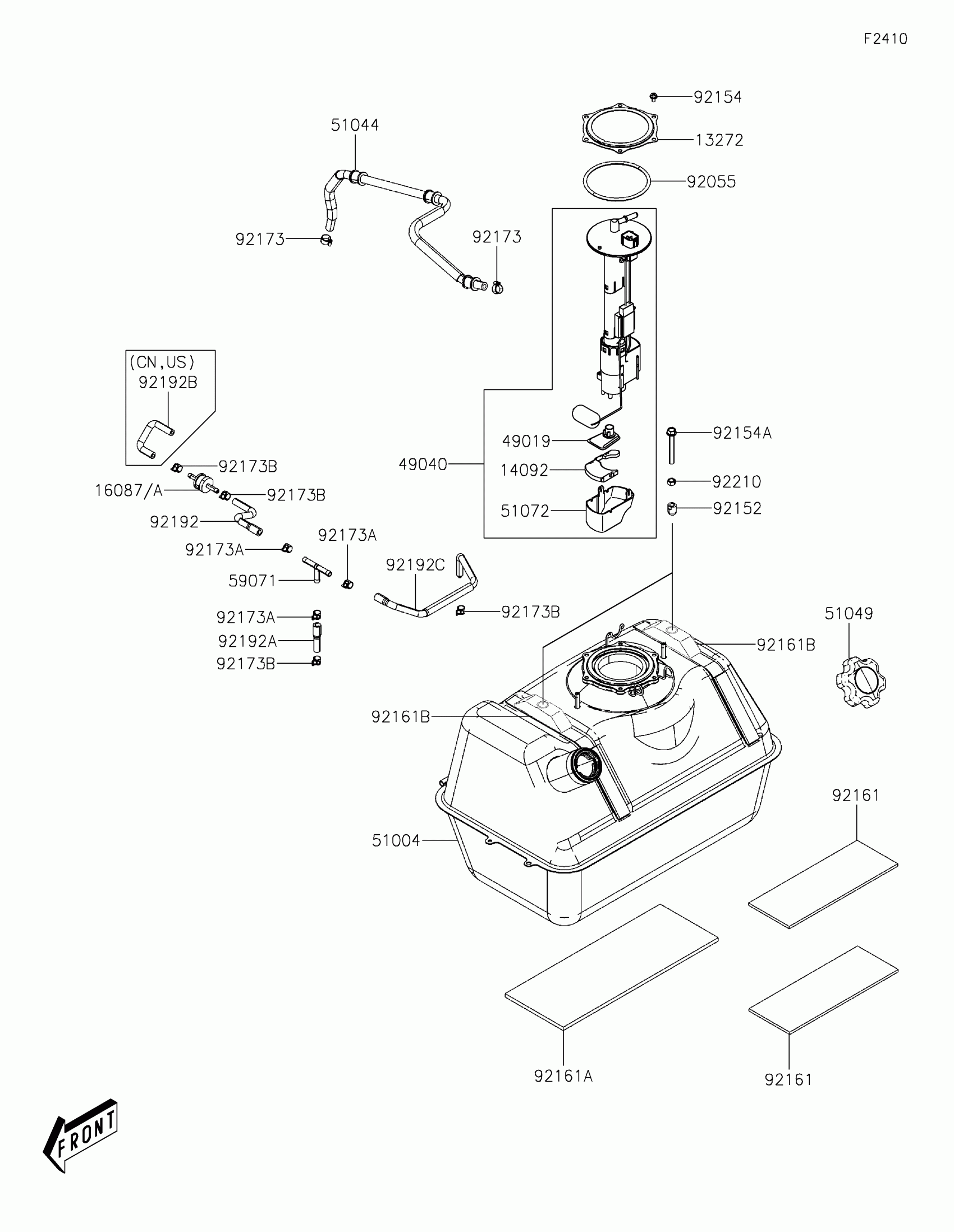

Kawasaki MULE PRO-MX™ Fuel Tank Diagram

Description

Price

13272

PLATE,FUEL PUMP

13272-Y030

$12.05

14092

COVER

14092-1044

$31.19

49019

FILTER-FUEL

49019-0013

$13.34

49040

PUMP-FUEL

49040-0716

$787.95

51004

TANK-FUEL

51004-Y001

$343.36

51044

TUBE-ASSY,FUEL TANK

51044-0896

$76.84

51049

CAP-TANK

51049-Y004

$70.85

51072

CHAMBER-FUEL

51072-0003

$46.89

59071

JOINT,3 WAY

59071-Y008

$1.97

92055

RING-O,FUEL PUMP

92055-Y057

$44.70

92152

COLLAR

92152-Y057

$10.17

92154

BOLT,5X10

92154-Y119

$4.44

92154A

BOLT,FLANGE,8X60

92154-Y207

$8.39

92161

DAMPER,FUEL TANK

92161-Y040

$3.17

92161A

DAMPER,FUEL TANK

92161-Y041

$26.56

92161B

DAMPER

92161-Y042

$28.59

92173

CLAMP,12.5MM

92173-Y043

$3.76

92173A

CLAMP

92173-Y051

$4.61

92173B

CLAMP

92173-Y081

$9.07

92192

TUBE

92192-Y060

$11.44

92192A

TUBE

92192-Y061

$5.53

92192C

TUBE

92192-Y073

$49.83

92210

NUT,HEX,8MM

92210-Y079

$2.14
