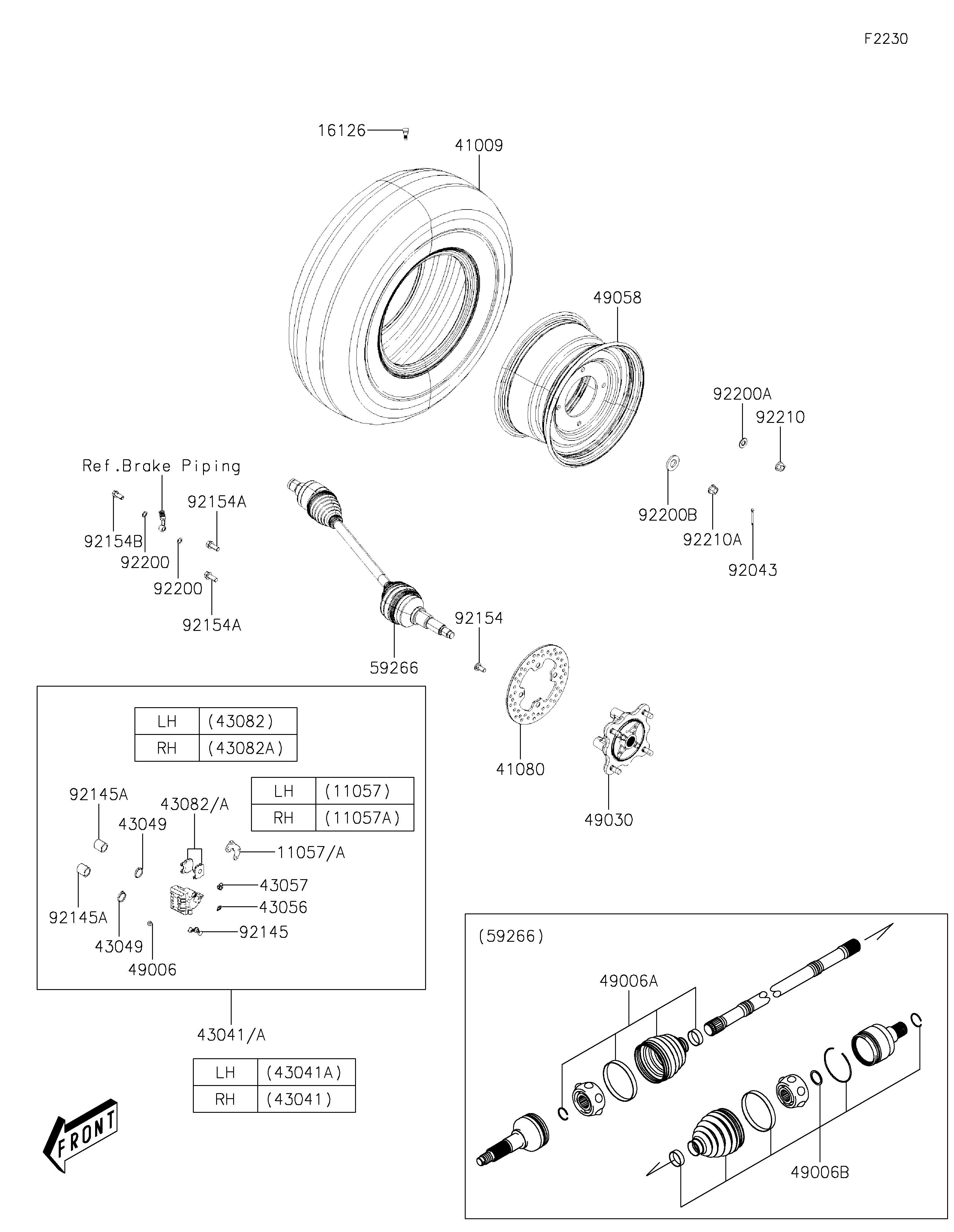

Kawasaki MULE PRO-MX™ Front Hubs/Brakes Diagram

#

Description
Price

11057

BRACKET

11057-Y007

$52.55

11057A

BRACKET

11057-Y019

$52.55

16126

VALVE,RIM

16126-Y001

$5.69

41009

TIRE,FR,25X8.00 R12

41009-Y008

$278.63

41080

DISC,BRAKE

41080-Y009

$95.71

43020

PISTON-COMP-BRAKE

43020-0054

$38.33

43041

CALIPER-ASSY,FR,RH,SILVER

43041-Y011-934

$226.17

43041A

CALIPER-ASSY,FR,LH,SILVER

43041-Y012-934

$226.17

43049

PACKING

43049-0556

$13.25

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43082

PAD-ASSY-BRAKE,FR,LH

43082-Y010

$57.37

43082A

PAD-ASSY-BRAKE,FR,RH

43082-Y011

$49.62

49006

BOOT

49006-0565

$10.39

49006A

BOOT,FR,OUTSIDE

49006-Y013

$83.11

49006B

BOOT,FR,INSIDE

49006-Y014

$108.51

49030

HUB,FR

49030-Y003

$129.70

49058

WHEEL,FR,BLACK

49058-Y002-935

$165.93

59266

JOINT-BALL,FR

59266-Y004

$407.25

92043

PIN,4X40

92043-Y043

$1.97

92145

SPRING

92145-0705

$5.32

92154

BOLT,10X23

92154-Y178

$6.88

92154A

BOLT

92154-Y183

$8.39

92154B

BOLT,OIL

92154-Y184

$8.39

92200

WASHER

92200-Y015

$2.53

92200A

WASHER,12MM

92200-Y089

$1.44

92200B

WASHER,40X20.5X4.5

92200-Y090

$4.61

92210

NUT

92210-Y088

$6.56

92210A

NUT,FLANGE,20MM

92210-Y099

$14.85
