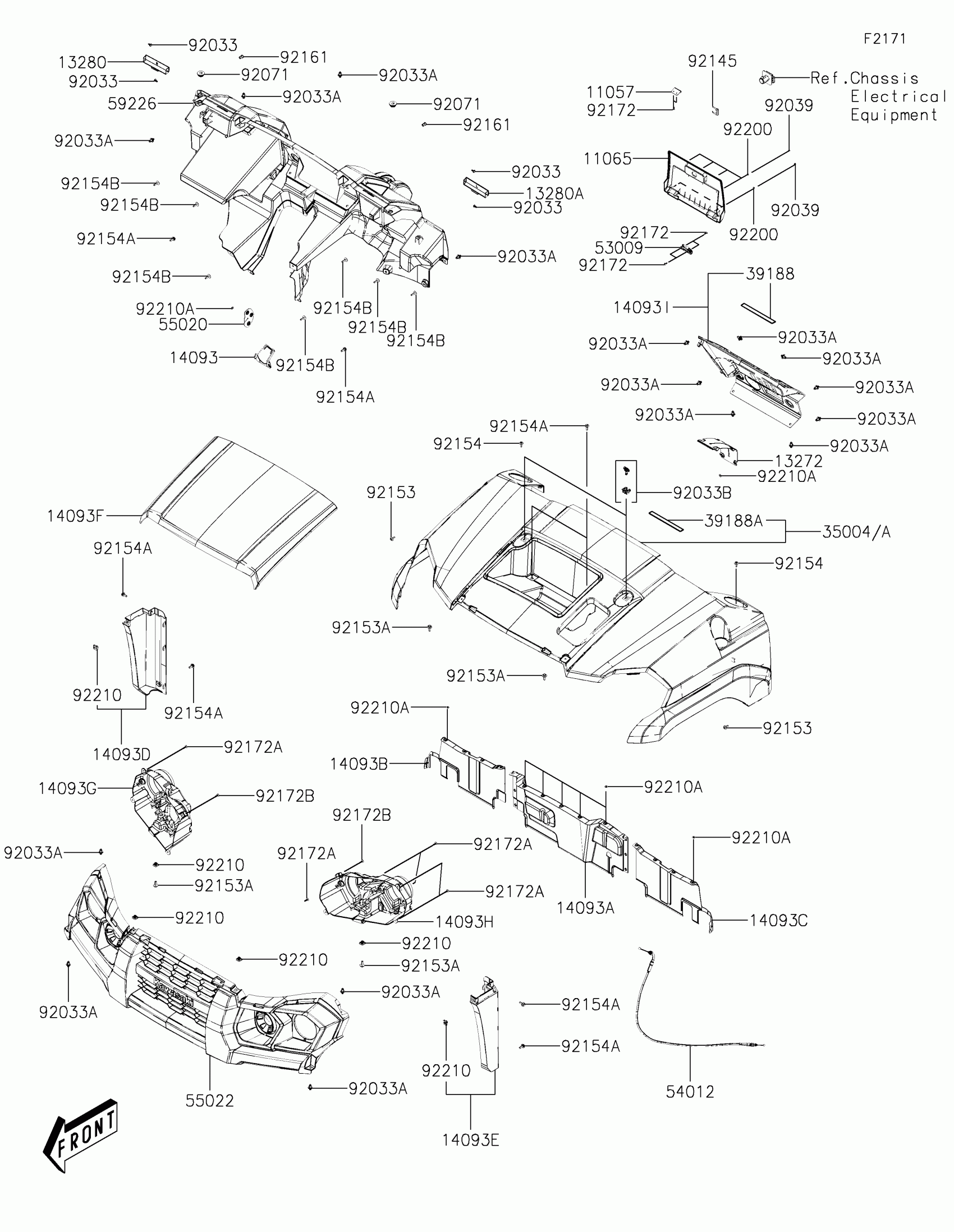

Kawasaki MULE PRO-MX™ Front Fender(s) Diagram

#

Description
Price

11057

BRACKET,COVER

11057-Y017

$2.86

11065

CAP,GLOVE BOX,S.BLACK

11065-Y040-933

$24.64

13272

PLATE,SHIFT LEVER

13272-Y031

$11.95

13280

HOLDER,CUP,RH,S.BLACK

13280-Y021-933

$2.49

13280A

HOLDER,CUP,LH,S.BLACK

13280-Y022-933

$2.49

14093

COVER,CONTROL PANEL,S.BLACK

14093-Y011-933

$3.17

14093A

COVER,SPLASH GUARD

14093-Y012

$42.12

14093B

COVER,SPLASH GUARD,RH

14093-Y013

$21.32

14093C

COVER,SPLASH GUARD,LH

14093-Y014

$19.68

14093D

COVER,SIDE PANEL,RH,S.BLACK

14093-Y015-933

$29.37

14093E

COVER,SIDE PANEL,LH,S.BLACK

14093-Y016-933

$29.37

14093F

COVER,HOOD,S.BLACK

14093-Y019-933

$158.41

14093G

COVER,HEAD LIGHT,RH,S.BLACK

14093-Y020-933

$37.00

14093H

COVER,HEAD LIGHT,LH,S.BLACK

14093-Y021-933

$37.00

14093I

COVER,CNT,S.BLACK

14093-Y046-933

$57.55

39188

TAPE,VELCRO

39188-Y002

$2.27

39188A

TAPE,VELCRO

39188-Y003

$2.27

53009

HINGE,LID

53009-Y001

$13.51

54012

CABLE-THROTTLE

54012-Y008

$48.18

55020

GUARD,CONTROL PANEL

55020-Y012

$4.83

55022

COVER-HEAD LAMP,S.BLACK

55022-Y002-933

$143.72

59226

PANEL-CONTROL,S.BLACK

59226-Y001-933

$153.54

92033

RIVET

92033-Y032

$1.89

92033A

RING-SNAP

92033-Y033

$1.97

92033B

RING-SNAP

92033-Y034

$8.39

92039

RIVET,3.2X9.8

92039-Y001

$0.67

92071

GROMMET

92071-Y005

$2.11

92145

SPRING,SET

92145-Y067

$5.25

92153

BOLT,5X16

92153-Y013

$0.67

92153A

BOLT,6X20

92153-Y019

$1.00

92154

BOLT,5X16

92154-Y030

$0.81

92154A

BOLT,6X18

92154-Y177

$4.28

92154B

BOLT,5X22

92154-Y186

$1.70

92161

DAMPER

92161-Y054

$4.97

92172

SCREW,4X12

92172-Y019

$0.84

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.23

92172B

SCREW,TAPPING,5X12

92172-Y038

$1.28

92200

WASHER,3MM

92200-Y017

$0.67

92210

NUT,6MM

92210-Y011

$1.06

92210A

NUT

92210-Y080

$1.97
