Description

Price

11057

BRACKET,FR

11057-Y009

$147.14

11057A

BRACKET,RR

11057-Y010

$135.45

11057B

BRACKET

11057-Y011

$39.43

11057C

BRACKET,SHIFT

11057-Y012

$34.71

11057D

BRACKET,FR DIFF

11057-Y014

$110.02

13272

PLATE

13272-Y033

$11.44

13272A

PLATE

13272-Y034

$4.37

13280

HOLDER

13280-Y023

$4.37

13280A

HOLDER

13280-Y024

$17.51

16073

INSULATOR

16073-Y006

$143.86

27012

HOOK,SEAT

27012-Y004

$15.75

31064

PIPE-COMP,TANK

31064-Y010

$173.54

31064A

PIPE-COMP,RADIATOR.INLET

31064-Y011

$185.64

31064B

PIPE-COMP,RADIATOR.OUTLET

31064-Y012

$132.38

35019

FLAP

35019-Y005

$40.13

35063

STAY,TORQUE ROD

35063-Y039

$22.90

35063A

STAY,FR DIFF

35063-Y040

$8.71

39043

CROSSMEMBER-COMP

39043-Y001

$455.75

43007

ROD-TORQUE

43007-Y001

$167.30

53029

CARRIER

53029-Y005

$737.62

55020

GUARD,HEAT,RH

55020-Y010

$30.28

55020A

GUARD,HEAT,LH

55020-Y011

$51.83

59106

ROPE

59106-Y002

$18.29

59266

JOINT-BALL,RH

59266-Y006

$81.87

59266A

JOINT-BALL,LH

59266-Y007

$81.87

92033

RING-SNAP

92033-Y031

$1.15

92043

PIN

92043-Y042

$20.69

92043A

PIN,LOCK,14MM

92043-Y044

$2.98

92071

GROMMET

92071-Y005

$2.11

92072

BAND

92072-Y020

$4.97

92093

SEAL

92093-Y032

$3.93

92153

BOLT,FLANGE,6X12

92153-Y023

$0.78

92153A

BOLT,FLANGE,6X16

92153-Y025

$0.78

92153B

BOLT,FLANGE,8X16

92153-Y032

$1.14

92153C

BOLT,FLANGE,8X20

92153-Y033

$1.14

92154

BOLT,FLANGE,10X85

92154-Y047

$4.44

92154A

BOLT,FLANGE,6X25

92154-Y130

$0.63

92154B

BOLT,FLANGE,10X200

92154-Y169

$20.14

92154C

BOLT,6X20

92154-Y179

$4.97

92154D

BOLT,FLANGE,8X30

92154-Y198

$3.92

92154E

BOLT,FLANGE,12X40

92154-Y206

$7.42

92161

DAMPER

92161-2083

$29.44

92161A

DAMPER,CARGO BED

92161-Y047

$4.37

92161B

DAMPER,HEAT SHIELD

92161-Y049

$5.98

92161C

DAMPER,CARGO BED

92161-Y051

$5.07

92161D

DAMPER,GAS

92161-Y052

$125.35

92173

CLAMP

92173-Y002

$1.92

92173A

CLAMP

92173-Y073

$0.95

92200

WASHER

92200-Y070

$0.61

92200A

WASHER,12MM

92200-Y091

$1.68

92200B

WASHER,10.5X30X2

92200-Y092

$2.44

92200C

WASHER

92200-Y102

$2.27

92210

NUT,10MM

92210-Y009

$2.17

92210A

NUT,FLANGE,8MM

92210-Y032

$1.42

92210B

NUT,8MM

92210-Y076

$0.73

92210C

NUT,HEX,12MM

92210-Y093

$11.05

92210D

NUT,HEX,LEFT HANDED,12MM

92210-Y094

$11.05

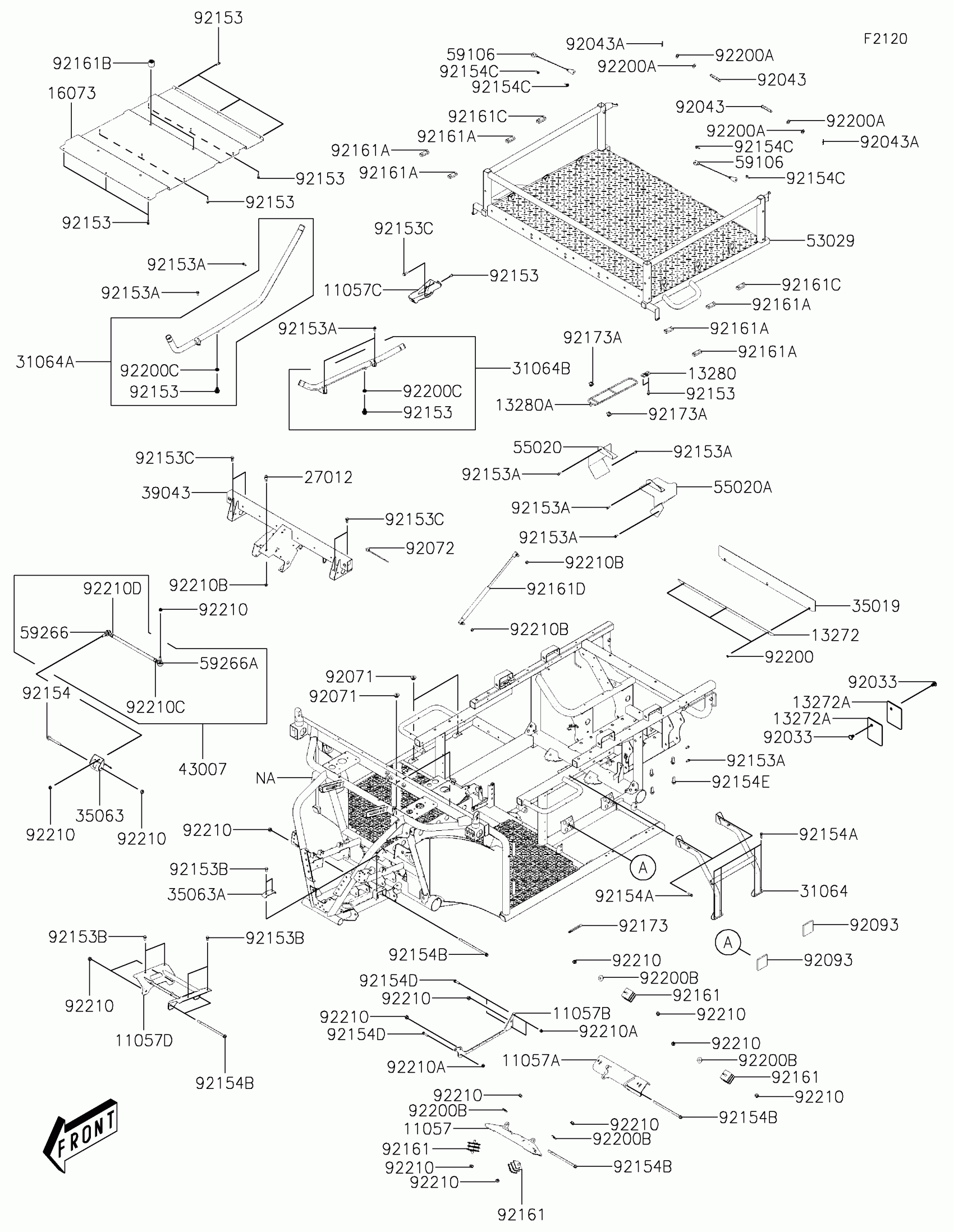

Kawasaki MULE PRO-MX™ Frame Diagram

BRACKET,FR

BRACKET,RR

BRACKET

BRACKET,SHIFT

BRACKET,FR DIFF

PLATE

PLATE

HOLDER

HOLDER

INSULATOR

HOOK,SEAT

PIPE-COMP,TANK

PIPE-COMP,RADIATOR.INLET

PIPE-COMP,RADIATOR.OUTLET

FLAP

STAY,TORQUE ROD

STAY,FR DIFF

CROSSMEMBER-COMP

ROD-TORQUE

CARRIER

GUARD,HEAT,RH

GUARD,HEAT,LH

ROPE

JOINT-BALL,RH

JOINT-BALL,LH

RING-SNAP

PIN

PIN,LOCK,14MM

GROMMET

BAND

SEAL

BOLT,FLANGE,6X12

BOLT,FLANGE,6X16

BOLT,FLANGE,8X16

BOLT,FLANGE,8X20

BOLT,FLANGE,10X85

BOLT,FLANGE,6X25

BOLT,FLANGE,10X200

BOLT,6X20

BOLT,FLANGE,8X30

BOLT,FLANGE,12X40

DAMPER

DAMPER,CARGO BED

DAMPER,HEAT SHIELD

DAMPER,CARGO BED

DAMPER,GAS

CLAMP

CLAMP

WASHER

WASHER,12MM

WASHER,10.5X30X2

WASHER

NUT,10MM

NUT,FLANGE,8MM

NUT,8MM

NUT,HEX,12MM

NUT,HEX,LEFT HANDED,12MM
