Description

Price

14093

COVER,SEAT

14093-Y028

$10.92

49031

LATCH,RH

49031-Y001

$130.33

49031A

LATCH,LH

49031-Y002

$130.33

53009

HINGE,RH

53009-Y002

$35.68

53009A

HINGE

53009-Y003

$2.58

53009B

HINGE,LH

53009-Y004

$35.68

53009C

HINGE,SEAT,RH

53009-Y005

$38.99

53009D

HINGE,SEAT,LH

53009-Y006

$38.99

53061

BELT-SEAT,LH

53061-Y001

$317.49

53061A

BELT-SEAT,RH

53061-Y002

$317.49

53066

SEAT-ASSY,BOTTOM

53066-Y006

$395.30

53066A

SEAT-ASSY,BACK

53066-Y008

$352.65

55020

GUARD,RH,S.BLACK

55020-Y020-933

$132.77

55020A

GUARD,LH,S.BLACK

55020-Y021-933

$132.77

56007

TOOL-KIT

56007-Y005

$55.94

92033

RING-SNAP

92033-Y040

$2.37

92039

RIVET,4.8X12.8

92039-Y005

$4.06

92139

BUSHING

92139-Y014

$1.46

92152

COLLAR

92152-Y066

$2.31

92154

BOLT,FLANGE,10X25

92154-Y139

$3.99

92154A

BOLT,FLANGE,6X14

92154-Y153

$1.32

92154B

BOLT,FLANGE,6X18

92154-Y154

$2.14

92154C

BOLT

92154-Y170

$3.93

92154D

BOLT

92154-Y171

$3.17

92200

WASHER,12MM

92200-Y096

$4.97

92200A

WASHER,DOOR

92200-Y105

$2.08

92210

NUT,6MM

92210-Y026

$1.24

92210A

NUT

92210-Y081

$1.37

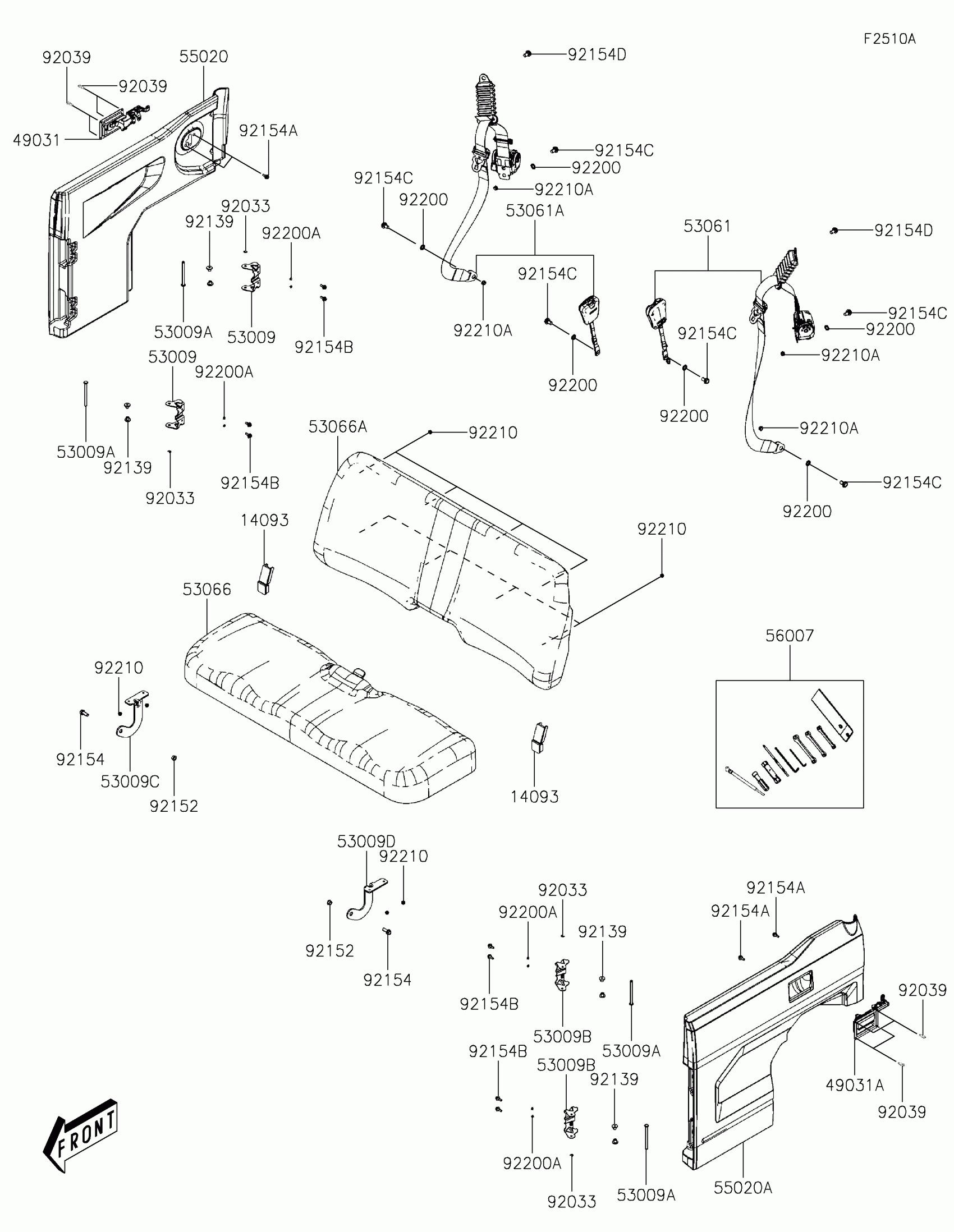

Kawasaki MULE PRO-MX™ EPS Seat(BLF) Diagram
